Servo Motors AZX Series Equipped with Built-in Battery-Free Absolute Encoder

Battery-Free Absolute Encoder Equipped Servo Motor

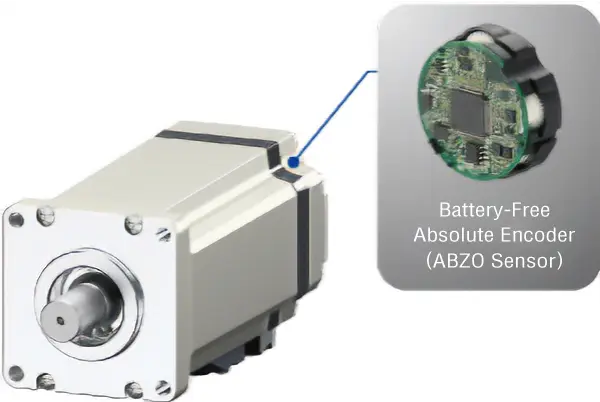

The AZX Series is equipped with the same battery-free mechanical absolute encoder (ABZO Sensor) as the AZ Series.
This servo motor is specialized for positioning and continuous operation.

• Mechanical-Type Sensor
  Retains positioning information even when power is not supplied
• Multi-Rotation Absolute Encoder
  Absolute position detection is possible with ±900 revolutions (1800 revolutions) of the motor shaft from the reference home position

• No External Sensors Required

  As it is an absolute system, home sensors or limit sensors are not required.

  Advantages

  • Improved High-Speed Return-To-Home + Return-To-Home Accuracy
  • Reduced Cost
  • Simple Wiring
  • Not Affected by External Sensor Malfunction

• Battery-Free

  Mechanical sensors do not require batteries.
  Positioning information is managed mechanically by the ABZO Sensor.

  Advantages

  • No need to replace batteries
  • Unlimited Driver Installation Possibilities
  • Safe for Overseas Shipping

Network Compatible Driver Servo Motors AZX Series

The driver is compatible with EtherCAT and EtherNet/IP.
A single communication cable is used to connect the driver to the host control device, thus saving wiring.

Simplifying the Main Program via Sequence Function^*

AZX Series positioning operations come with a variety of sequence functions, such as a timer setting for linked operation and during operations, conditional branching, and loop counting.
It can be set up using the support software MEXE02, which simplifies the sequence program of the host controller.

• *EtherCAT compatible driver is not applicable.

• Positioning Operation Data Setting Value (Maximum 256)
• General-Purpose I/O Signal Counts (Input 6, output 6)
• Communication I/O Signal Counts (Input 16, output 16)

Achieves High Torque in the High Speed Range

The AZX Series achieves high torque in the high speed range.
It is suitable for positioning applications with a large amount of travel (Example: ball screw driving).

• *This is a comparison of the speed – torque characteristics of the AZX Series and AZ Series.
  The AZX Series offers superior torque in the high speed range, the AZ Series is better in the low speed range.

The Basic Operations are the Same as the AZ Series

The basic operation method for the AZX Series is the same as the AZ Series.
The AZX Series and the AZ Series can be used together in the same equipment without the hassle associated with changes in operability.

wiring	Signal system wiring
Setting	Switch and parameter functions, setting method (MEXE02 used)
Control	Command ID number when controlling over a network
Operation Functions	Built-in positioning operation function, etc. in the driver

Product Line Servo Motors AZX Series

Motors, drivers, and cables must be ordered individually.

Motor

Type	Rated Output Power [W]	Frame Size [mm]	Gear Ratio	Rated Torque [N・m]	Maximum Instantaneous Torque [N・m]	Backlash [arcmin]	Electromagnetic Brake
							Equipped	Not Equipped
	400	60	–	1.27	3.82	–	●	●
	600	85		1.91	Single-Phase: 3.82 Three-Phase: 7.16		●	●
	400	90	5	5.72	17.1	15	●	●
			10	11.4	34.3		●	●
			25	25.7	77.2		●	●
	600	90	5	8.6	Single-Phase: 17.2 Three-Phase: 32.2		●	●
		120	10	18.1	Single-Phase: 36.3 Three-Phase: 68		●	●
			25	43.1	Single-Phase: 86.2 Three-Phase: 162		●	●

Driver

	Driver Type	Power Supply Input [V]
	EtherCAT compatible EtherNet/IP compatible PROFINET compatible	Single-Phase/Three-Phase 200-240 VAC

• *EtherCAT compatible drivers have passed the official EtherCAT conformance test.
• *EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
• *EtherNet/IP™ is a trademark of ODVA.
• *PROFINET is a trademark or registered trademark of PROFIBUS Nutzerorganisation e.V. (PNO).

Connection Cable Sets/Flexible Connection Cable Sets

• The motor cable, encoder cable, and electromagnetic brake cable coming from the motor cannot be connected directly to the driver.
• Use flexible connection cables in applications where the cable is bent.

	Length [m]
	1~20
