Cooling Fans – Enclosure Fan Modules

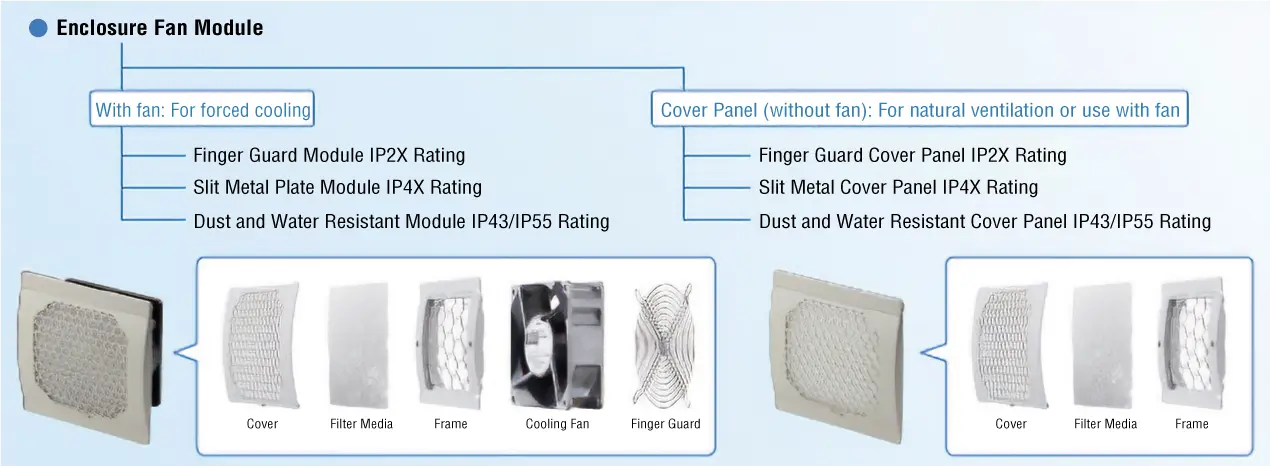

This enclosure fan module is a product that integrates a fan and accessories (with cover, filter media, frame and finger guard).
Optimized cooling for control cabinets.

(In the case of the finger guard module with an IP2X rating filter.
The actual product will be delivered assembled)

(In the case of a finger guard cover panel with an IP2X rating filter.
The actual product will be delivered assembled)

Because the enclosure fan modules have an integrated structure, their characteristics are clear, and they are easy to select and easy to arrange.
They are also easy to install and maintain.

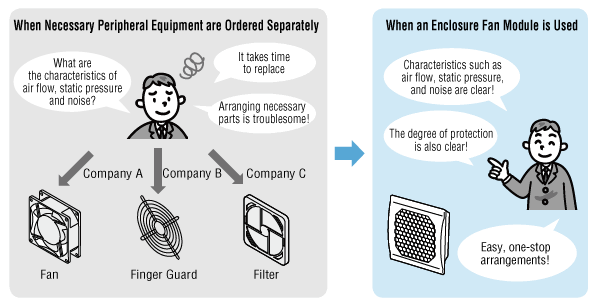

Clear Characteristics, Easy to Select, and Easy to Arrange

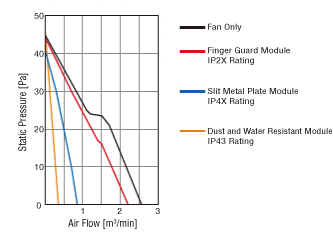

Because the characteristics of when finger guard, filter, cover, etc. are attached are clear, it is easy to make a selection.

Easy Installation Cooling Fans – Enclosure Fan

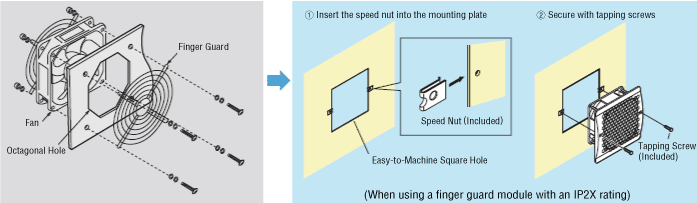

When the necessary accessories are arranged separately, assembling many parts with a single screw is time-consuming and difficult to replace.

The enclosure fan module can be easily installed due to its integrated structure.

The finger guard module uses a speed nut, eliminating the need to press down on the nut with hands or tools, and the worry about the nut falling off.

Excellent workability.

Easy Maintenance

The body cover can be easily detached from the outside. Filter media replacement is easy.
(Periodic replacement of the filter media is recommended, as clogging reduces the cooling capacity.)

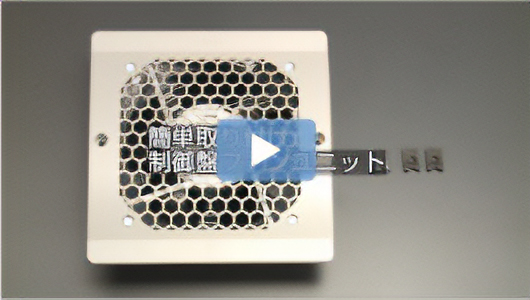

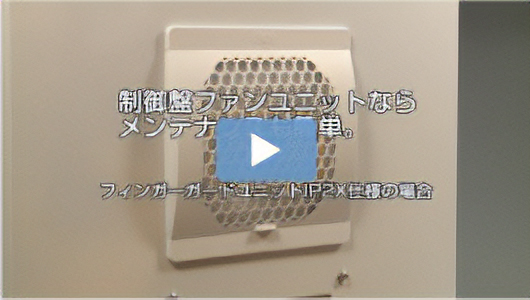

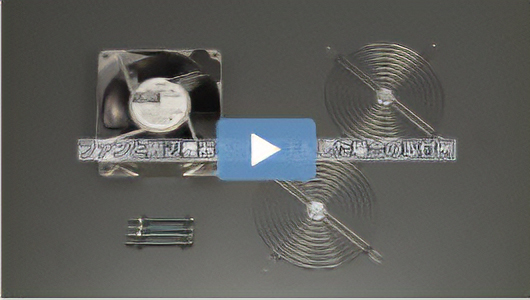

Watch the video to see the features.

If dust or water droplets enter the control cabinet, the internal devices may malfunction, which can affect the entire equipment system.
The IP4X rating slit metal plate modules and the IP43/IP55 rating dust and water resistant modules prevent the infiltration of dust and water droplets, which improves the service life and reliability of the devices contained in the control cabinet.

When the cooling fan stops, heat builds up in the control cabinet.
This heat can also generate heat in the internal equipment, causing it to failure and adversely affecting the lifetime of the equipment.
With a fan with an alarm, cooling abnormalities in the control cabinet can be detected early and the fan can be replaced before it causes heat damage to the equipment.

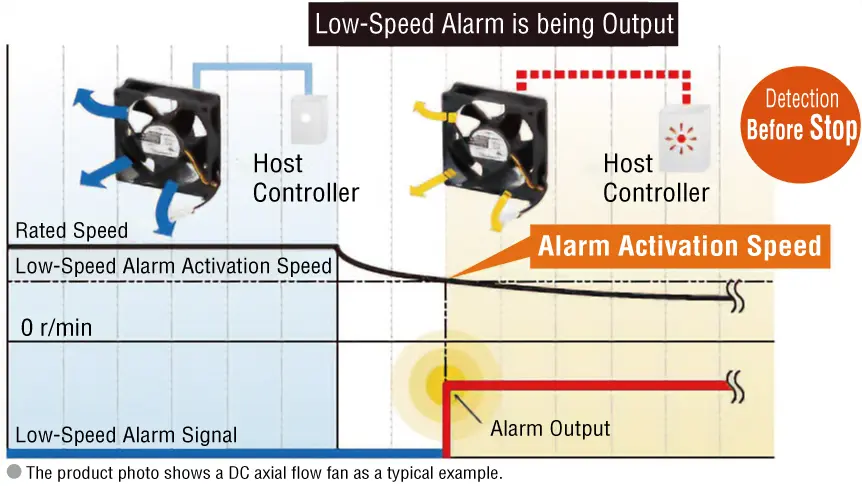

Low-Speed Alarm Function Equipped Predictive Maintenance

An alarm signal is output when the rotation speed of the fan deteriorates due to ingress of foreign particles, etc.

This helps with predictive maintenance of equipment issues, as fans can be ordered and replaced before equipment is damaged by heat.

It also allows replacement of only those fans with deteriorating cooling capacity when there are multiple fans installed.

It can limit the impact on the equipment to minimum.
