Features of the MU Series Standard Type

Wide Variation

The product line includes fans of various sizes, power supply voltages, and speed types.
This is a flat, general purpose type AC fan that can be selected according to your purpose of use.

You Can Also Choose a Product That Comes With a Plug Cord for Power Supply

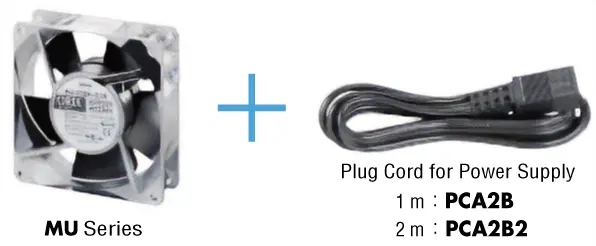

A plug cord accessory is available that allows you to arrange a fan and a plug cord for power supply together.

Easy Setup and Arrangement With the Accessory Set

Mounting screws, filters, and other components have been installed to finger guards to prevent fingers and foreign particles from getting inside and to the panels which provide ideal ventilating and cooling for the control cabinet.
Since this is a set, there is no need to order individual components, and you can mount it to the fan and use it immediately after arrival.

• *The sets are sold separately from the fan.

Finger Guard Set

Set Contents

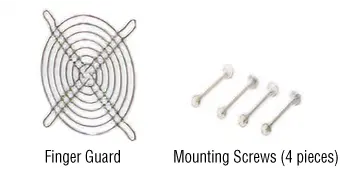

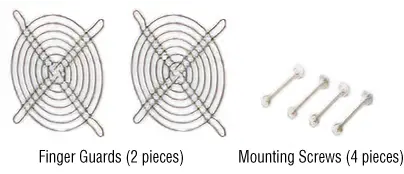

• Finger Guard Set (1 Guard)

  • Steel finger guard set
  • Stainless steel finger guard set



• Finger Guard Set (2 Guards)

  • Steel Finger Guard Set
  • Stainless Steel Finger Guard Set

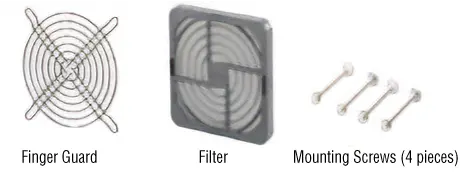

• Finger Guard and Filter Set (1 Each)

  • Steel finger guard and filter set

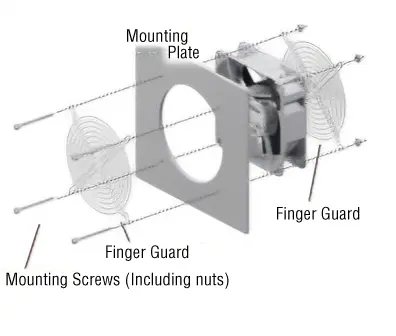

Mounting Example

•

  • Finger guards are used outside the control cabinet

    Outside →

    For preventing injury

•

  • Finger guards are used on both the inside and outisde of the control cabinet

    Inside →

    For protection of the workers

    Outside →

    For preventing injury

•

  • Finger guards are used on the inside of the control cabinet, and filters are used on the outside

    Inside →

    For protection of the workers

    Outside →

    For protection against dust

Cover Panel Set for Enclosure

Cover Panel Set Product Line

Cover panel set are available in varying degrees of protection. Select the right product for your needs based on the installation environment and application.

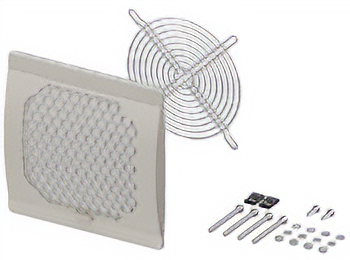

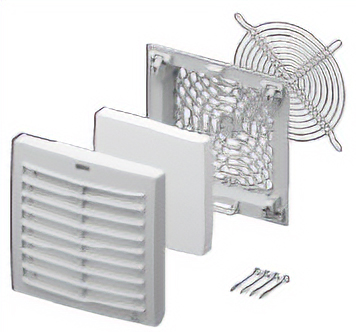

• Finger Guard Cover Panel Set
  IP2X Rating

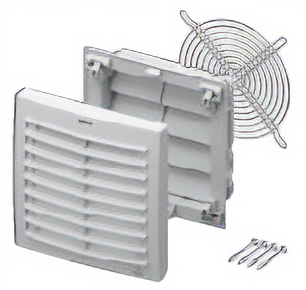

• Slit Metal Cover Panel Set
  IP4X Rating

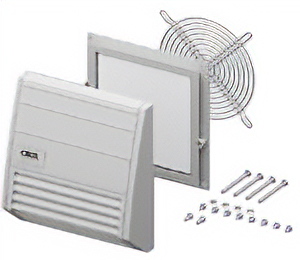

Dust and Water Resistant Cover Panel Set

• IP43/55 Rating^*



  • *The difference in ratings is due to differences in the filter product line.

• IP54 Rating for Exhaust



• IP54 Rating for Suction



Assembly Diagram

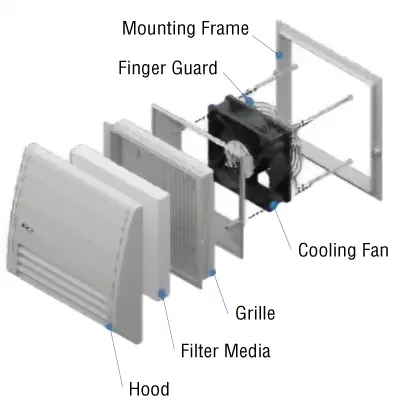

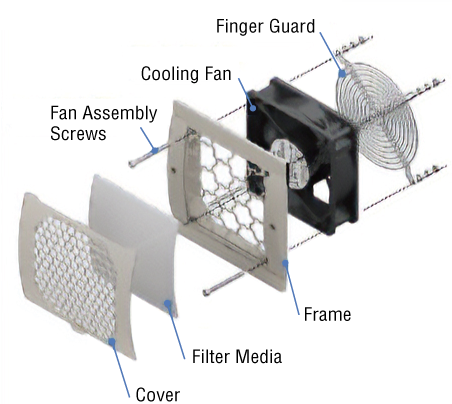

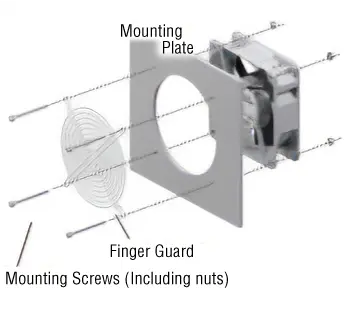

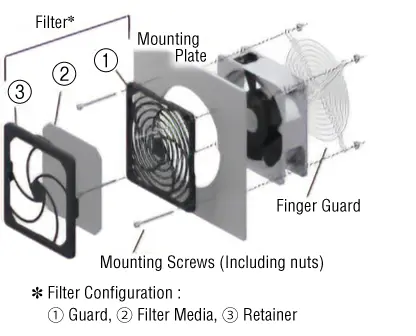

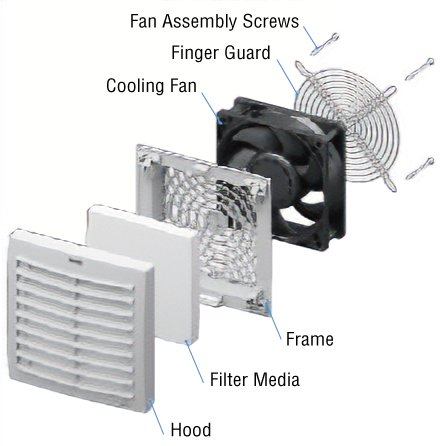

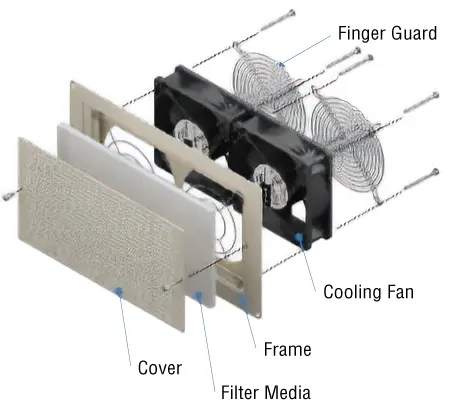

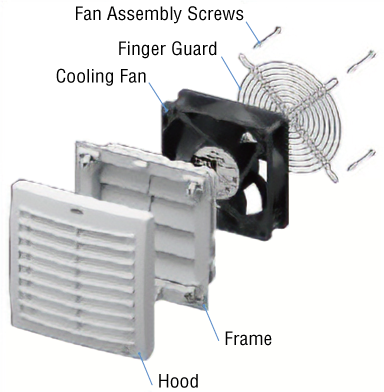

This is a reference diagram of the process for assembling the axial flow fan (sold separately) to the cover panel set for enclosure.

• Finger Guard Cover Panel Set
  IP2X Rating



• Slit Metal Cover Panel Set
  IP4X Rating



Dust and Water Resistant Cover Panel Set

• IP43/55 Rating



• IP54 Rating for Exhaust



• IP54 Rating Suction Type



These diagrams provide detailed information and important points such as set content, applicable products, and usage applications for each degree of protection.

Product Line

Size	Speed Type	Power Supply Voltage [V]	Maximum Air Flow [m³/min]	Maximum Static Pressure [Pa]
□80 mm – 25 mm thick	Standard speed	Single-Phase 100 Single-Phase 115 Single-Phase 200 Single-Phase 220/230	0.45~0.55	34~49
	Low speed	Single-Phase 100	0.35~0.45	20~34
□92 mm – 25 mm thick	Standard speed	Single-Phase 100 Single-Phase 115 Single-Phase 200 Single-Phase 220/230	0.95~1.10	44~59
	Middle speed		0.85~1.00	34~44
□104 mm – 25 mm thick	Standard speed	Single-Phase 100 Single-Phase 115 Single-Phase 230	1.2~1.4	39~44
	Low Speed	Single-Phase 100	1.0~1.2	29~34
□119 mm – 25 mm thick	Standard speed	Single-Phase 100 Single-Phase 115 Single-Phase 200 Single-Phase 220/230	1.6~1.9	44~49
	Middle Speed		1.4~1.7	31~32
□119 mm – 38 mm thick	Standard speed	Single-Phase 100 Single-Phase 115 Single-Phase 200 Single-Phase 220/230	2.7~3.0	81
	Middle Speed		2.2~2.5	52~59
	Low Speed		1.8~1.9	27~34
□140 mm – 28 mm thick	Standard speed	Single-Phase 100 Single-Phase 200	2.4~2.7	39~43
		Single-Phase 220/230	2.4~2.7	34~45
