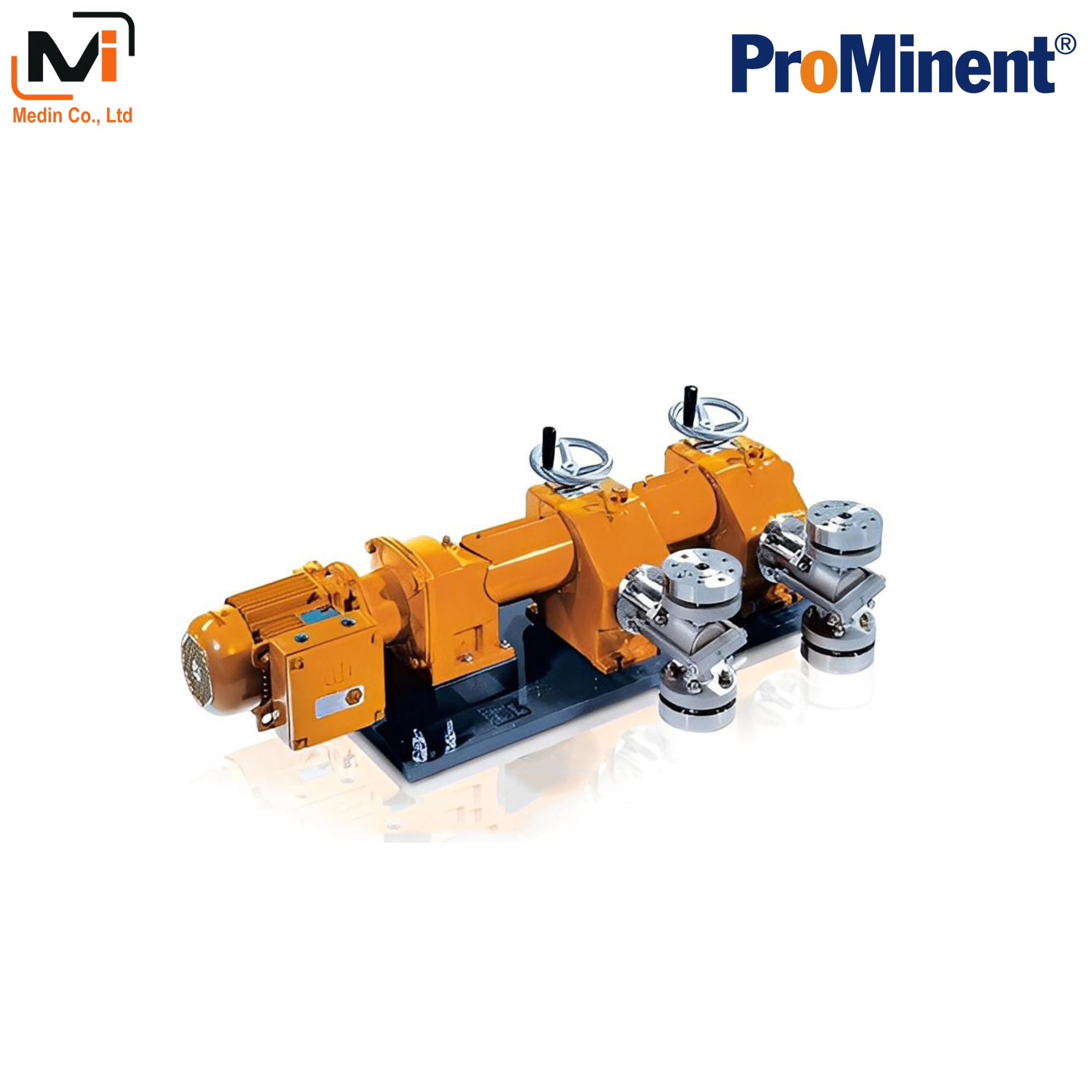

Plunger Metering Pump ORLITA PS ProMinent
Capacity range of single-head pump: 0 – 2800 l/h, 800 – 11 bar
The high-performance plunger metering pump ORLITA PS enables precise pump capacities even at maximum pressure and temperatures of up to +400 °C.
The ORLITA PS pump has a modular construction and is therefore very flexible.
ORLITA PS – simple, robust and reliable.
ORLITA PS plunger metering pumps (PS 35 to PS 600) with a stroke length of 20 to 40 mm provide a capacity ranging from 0 to 2800 l/h at 600 – 11 bar. A wide range of drive versions is available, including some for use in Exe and Exde areas with ATEX certification. The ORLITA PS product range is designed to comply with API 675. Its modular construction permits the free combination of drive units, drives and dosing heads, producing a pump for a range of different feed rates and media operating at different working pressures.
Your benefits
Flexible adaptation to the process:
- Precise capacity even at maximum pressure
- The dosing precision is better than ± 1 % within the 10-100 % stroke length range under defined conditions and with correct installation.
- Cone valves for use as suction and/or discharge valves with minimal wear, good self-cleaning and low pressure loss (NPSHR)
- Excellent hydraulic efficiency
Excellent flexibility:
- The modular construction ensures a wide range of uses
- It is possible to combine up to 6 metering units, even with different pump capacities, in multiple pump systems
Field of application
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Oil/ gas production (onshore/offshore)
- Refineries
- Chemical/Petrochemical industry
- Pharmaceuticals & cosmetics
- Packaging industry (bottling pumps)
- Maximum temperature applications of up to +400 °C
Inhibitor Metering Offshore
For smooth oil production
Our ProMinent metering pumps keep the pipework clear 24 hours a day and protect against corrosion and defects. So the oil can keep flowing.
Reliable technology is essential on a drilling platform.
ProMinent Orlita metering pumps are perfectly suited to the tough environment.
Special materials and paintwork designed for offshore applications make them incredibly robust.
And they work intelligently: the inhibitor is fed via several metering heads and can be individually adapted to every single metering volume and pump pressure.
Corrosion in the pipework and feed units is prevented.
Onshore Metering in Gas Pump Stations
Safety at the borehole
Flammable methane hydrate at the borehole can be very dangerous.
But not with ProMinent metering pumps.
By metering fluid into the drilling head, they don’t even allow methane hydrate to be produced in the first place.
ProMinent’s Orlita diaphragm metering pumps prevent methane hydrate from forming at the borehole.
Their metering heads are interconnected for even pumping pressures and volumes.
The recipe for reliable metering even under extreme conditions?
Relief valves protect against overload, bleed valves and rupture indicators automatically detect critical situations and remedy them.
Technical Details
- PS 35 – stroke length: 0-20 mm, rod force: 3500 N
- PS 80 – stroke length: 0-20 mm, rod force: 14000 N
- PS 180 – stroke length: 0-40 mm, rod force: 18000 N
- PS 600 – stroke length: 0-40 mm, rod force: 40000 N
- Stroke length adjustment range: 0 – 100% in operation and idle
- The plunger packing can be tightened by the tensioning screw on the front even during operation
- The dosing precision is better than ± 1 % within the 10 – 100 % stroke length range under defined conditions and with correct installation
- Wetted materials: Stainless steel, special designs are available on request
- A wide range of power end/drive versions is available: Three-phase standard AC motors, motors for use in Exe and Exde areas and different flange designs for use in customer-specific motors
- Degree of protection: IP 55
- Temperature range – 40 °C to + 400 °C
- Design in compliance with API 675 among others
Technical data for ORLITA PS 35 single-head pump 50 Hz
| Plunger Ø | Theor. stroke volume | Max. capacity (theo.) in l/h at strokes/min (50 Hz) | Max. pressure | Nominal diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 45 | 58 | 91 | 112 | 145 | 207 | ||||
| mm | ml/stroke | l/h | l/h | l/h | l/h | l/h | l/h | l/h | bar | |
| * Plunger diameter 7 mm also available as high-pressure version | ||||||||||
| 5 | 0.39 | 0.9 | 1.1 | 1.4 | 2.1 | 2.6 | 3.4 | 4.9 | 250 | DN 3 |
| 6 | 0.57 | 1.2 | 1.5 | 2.0 | 3.1 | 3.8 | 4.9 | 7.0 | 250 | DN 3 |
| 7 * | 0.77 | 1.7 | 2.1 | 2.7 | 4.2 | 5.2 | 6.7 | 9.6 | 250 | DN 3 |
| 8 | 1.01 | 2.2 | 2.7 | 3.5 | 5.5 | 6.7 | 8.7 | 12.5 | 250 | DN 3 |
| 10 | 1.57 | 3.4 | 4.3 | 5.5 | 8.5 | 10.5 | 13.7 | 19.5 | 250 | DN 6 |
| 12 | 2.26 | 4.9 | 6.1 | 7.9 | 12.3 | 15.1 | 19.7 | 28.1 | 250 | DN 6 |
| 16 | 4.02 | 8.7 | 10.9 | 14.0 | 21.9 | 26.9 | 35.0 | 50.0 | 174 | DN 6 |
| 20 | 6.28 | 13.7 | 17.1 | 21.9 | 34.2 | 42.0 | 54.7 | 78.1 | 111 | DN 6 |
| 25 | 9.82 | 21.4 | 26.7 | 34.2 | 53.4 | 65.7 | 85.4 | 122.0 | 71 | DN 10 |
| 30 | 14.14 | 30.7 | 38.4 | 49.2 | 76.9 | 94.6 | 123.0 | 175.7 | 50 | DN 10 |
| 36 | 20.36 | 44.3 | 55.3 | 70.8 | 110.7 | 136.2 | 177.1 | 253.0 | 34 | DN 16 |
| 40 | 25.13 | 54.7 | 68.3 | 87.5 | 136.7 | 168.2 | 218.7 | 312.4 | 28 | DN 16 |
| 50 | 39.27 | 85.4 | 106.8 | 136.7 | 213.5 | 262.8 | 341.6 | 488.1 | 18 | DN 16 |
| 65 | 66.37 | 144.3 | 180.4 | 231.0 | 360.9 | 444.1 | 577.4 | 824.8 | 11 | DN 25 |
Technical data for ORLITA PS 80 single-head pump 50 Hz
| Plunger Ø | Theor. stroke volume | Max. capacity (theo.) in l/h at strokes/min (50 Hz) | Max. pressure | Nominal diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 68 | 78 | 86 | 104 | 134 | 160 | 193 | ||||
| mm | ml/stroke | l/h | l/h | l/h | l/h | l/h | l/h | l/h | bar | |
| 20 | 6.28 | 26 | 29 | 33 | 39 | 51 | 60 | 73 | 250 | DN 6 |
| 30 | 14.14 | 58 | 66 | 73 | 88 | 114 | 136 | 163 | 198 | DN 10 |
| 36 | 20.36 | 83 | 95 | 105 | 127 | 164 | 195 | 235 | 138 | DN 16 |
| 40 | 25.13 | 102 | 118 | 130 | 157 | 203 | 241 | 290 | 111 | DN 16 |
| 50 | 39.27 | 160 | 184 | 203 | 245 | 317 | 377 | 454 | 71 | DN 16 |
| 60 | 56.55 | 230 | 265 | 293 | 353 | 456 | 543 | 653 | 50 | DN 25 |
| 65 | 66.37 | 270 | 310 | 344 | 414 | 535 | 637 | 767 | 37 | DN 25 |
| 100 | 157.08 | 639 | 735 | 814 | 980 | 1,267 | 1,508 | 18 | DN 32 | |
| 125 | 245.44 | 998 | 1,148 | 1,272 | 1,531 | 1,979 | 2,357 | 11 | DN 40 | |
Technical data for ORLITA PS 180 single-head pump 50 Hz
| Plunger Ø | Theor. stroke volume | Max. capacity (theo.) in l/h at strokes/min (50 Hz) | Max. pressure | Nominal diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 68 | 78 | 86 | 104 | 134 | 160 | 193 | ||||
| mm | ml/stroke | l/h | l/h | l/h | l/h | l/h | l/h | l/h | bar | |
| 30 | 28.27 | 115 | 132 | 147 | 176 | 228 | 272 | 327 | 250 | DN 16 |
| 40 | 50.27 | 204 | 235 | 260 | 313 | 405 | 483 | 581 | 143 | DN 16 |
| 50 | 78.54 | 319 | 367 | 407 | 490 | 633 | 754 | 907 | 92 | DN 25 |
| 54 | 91.61 | 373 | 428 | 475 | 571 | 739 | 880 | 1,058 | 79 | DN 25 |
| 80 | 201.06 | 818 | 940 | 1,042 | 1,254 | 1,621 | 1,931 | 2,323 | 36 | DN 40 |
Technical data for ORLITA PS 600 single-head pump 50 Hz
| Plunger Ø | Theor. stroke volume | Max. capacity (theo.) in l/h at strokes/min (50 Hz) | Max. pressure | Nominal diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 72 | 79 | 90 | 117 | 134 | 156 | 173 | ||||
| mm | ml/stroke | l/h | l/h | l/h | l/h | l/h | l/h | l/h | bar | |
| 40 | 50.27 | 217 | 240 | 270 | 353 | 404 | 471 | 521 | 250 | DN 16 |
| 70 | 153.94 | 665 | 734 | 828 | 1,081 | 1,237 | 1,442 | 1,596 | 104 | DN 32 |
| 80 | 201.06 | 869 | 959 | 1,082 | 1,412 | 1,615 | 1,883 | 2,085 | 80 | DN 40 |
| 94 | 277.59 | 1,199 | 1,324 | 1,494 | 1,949 | 2,230 | 2,600 | 2,878 | 58 | DN 50 |
All performance data applies to 50 Hz. If a 60 Hz motor is used, the performance will be correspondingly higher.
