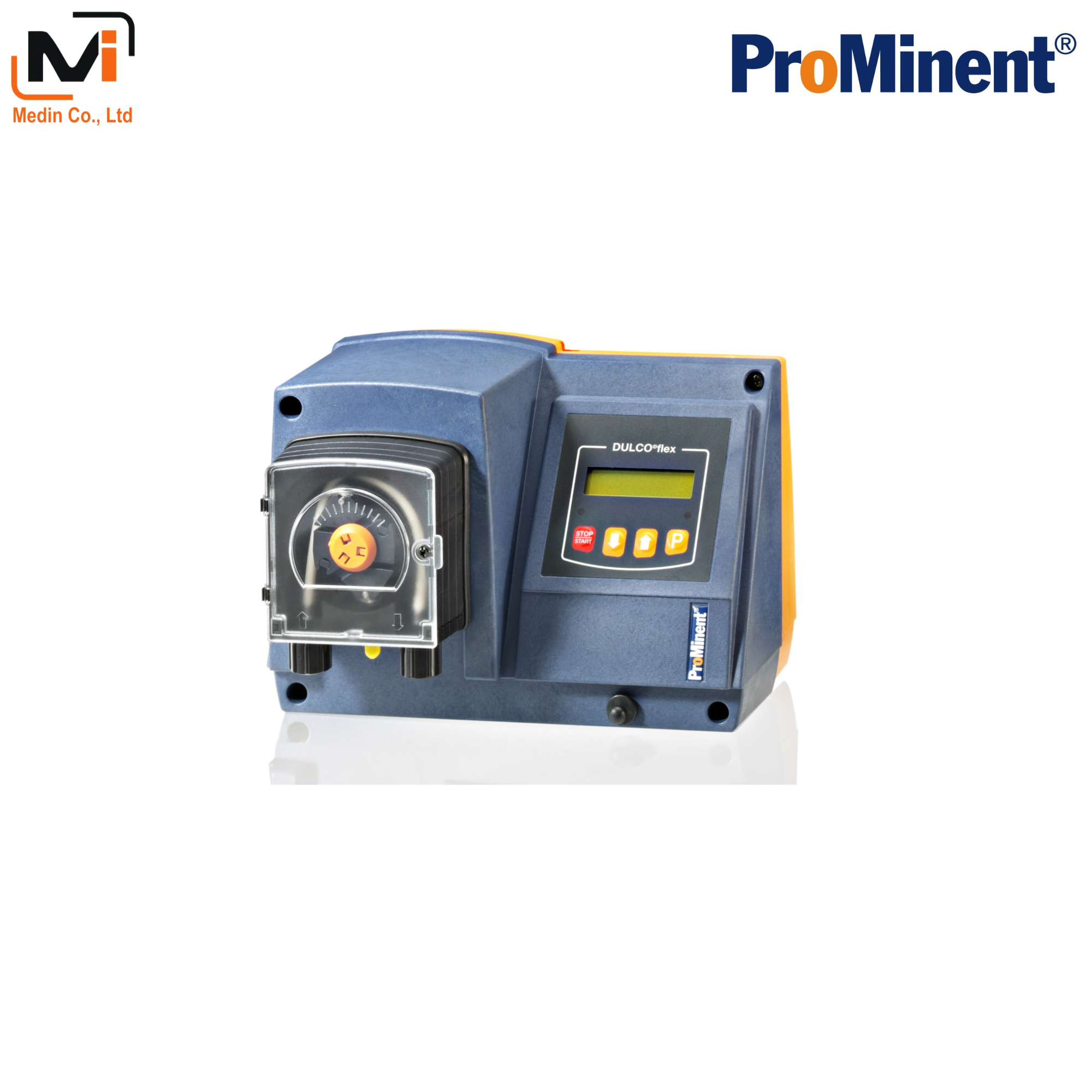

Peristaltic Pump DULCOFLEX DF4a ProMinent
Capacity range 1.5 – 12 l/h, 4 – 2 bar
The peristaltic pump DULCOFLEX DF4a for metering flocculants and activated charcoal treats water precisely and accurately.
It is ideal for use in swimming pools, hot tubs or spa and wellness facilities.
An operating pressure up to 4 bar is possible.
Downloads
Peristaltic Pump DULCOFLEX DF4a ProMinent
Capacity range 1.5 – 12 l/h, 4 – 2 bar
The peristaltic pump DULCOFLEX DF4a for metering flocculants and activated charcoal treats water precisely and accurately.
It is ideal for use in swimming pools, hot tubs or spa and wellness facilities.
An operating pressure up to 4 bar is possible.
The optimum pump for use in swimming pools, hot tubs and spa and wellness facilities.
There are three designs of DULCOFLEX DF4a available:
- Metering of chemicals
- Metering of active carbon
- Metering of flocculants
This guarantees that the operating menu, inputs and outputs are always adapted to the respective application.
Your benefits
- Language-neutral user navigation
- Continuous adjustment of capacity
- Hose material in PharMed®
- Full control, as the capacity is shown in l/h in the display
- Safe and reliable operation: Flow volume and concentration can be entered reproducibly
- Long service life: Spring-loaded rollers stabilise rolling pressure and reduce wear and tear on the hose
Technical Details
- Priming function
- Night setback
- Inputs for contacts and analogue signals
- Housing degree of protection IP 65
- Connector for 2-stage level switch with round plug
- Operating hour counter
- CANopen interface
Technical Data
| Priming lift: | 3 m WC | Approx. power consumption: | 24 W |
| Suction lift: | 4 m WC | Switching-on duration: | 100% |
| Speed: | 0 – 85 rpm | Degree of protection: | IP 65 |
| Permissible ambient temperature: | 10 – 45 °C |
All data calculated with water at 20 °C.
Field of application
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Swimming pool water treatment
Flocculation in public swimming pools
Precise metering of flocculants delivers optimum filtration
Flocculants allow the smallest of particles dispersed as colloids to be removed from the swimming pool water. Our metering pumps can be set with great accuracy and ensure a precise and continuous supply of precisely calculated quantities of this flocculant.
Accurate metering counts
The metering of flocculants is an effective aid to the treatment of swimming pool water. This combined chemical and physical-technical process enables the filtration of tiny colloidal particles (< 1 µm) with a negative charge. The positively charged flocculant attracts these particles and macroflocs form, which can then be filtered, allowing undesired substances to be removed from the water circuit.
Minimise the consumption of chemicals
In order to minimise the consumption of chemicals, the circulating capacity can be reduced if the water values are spot on.
As a result the proportional metering of flocculant can be reduced too – with everything regulated and controlled by ProMinent measuring and control technology.
Constant and accurate metering
One crucial factor for flocculation is the constant and accurate metering of small volumes of flocculant.
As a pioneer of solenoid metering pumps, ProMinent’s product ranges can be used to accurately set a minimum metering volume using stroke length and metering frequency.
Continuously controllable metering
Alternatively, you can use our special peristaltic pump DF4a with CAN bus control to steplessly control flocculant metering.
This way you reliably supply the desired volume to your water treatment system at all times.
Internal Water Management in Hotels and Resorts
The best water for your kitchens and laundry
Fresh bedding and sweet-smelling towels in rooms, spotlessly clean dishes and fine dining in the restaurant – desalinated and germ-free water is absolutely essential.
You have the staff, we have the system technology.
Membrane filtration – The right recipe for desalination
Internal water management benefits greatly from fully desalinated and soft water: expensive detergent can be saved in the kitchens, there is no need for time-consuming polishing of dishes and the quality of the food is improved.
There are fewer deposits in machines and detergent consumption is reduced in the laundry.
The heating system and steam generation are also more efficient and reliable in the long term thanks to the addition of corrosion inhibitors.
In water treatment, membrane filtration is the process for removing particles and salts in the water with the lowest operating costs – and ProMinent is a specialist in this area.
Our experts use their thorough knowledge of the industry to design a tailored complete solution with perfectly matched upstream and downstream treatment.
Complete reverse osmosis systems integrated in standard transport containers are one of our specialities.
Another is our fully ready mounted metering systems, which just have to be connected to the hydraulic and electric supply – real “plug & play”.
Fighting Legionella in Hotels and Resorts
Squeezing out legionella and pathogens
It can be disastrous for any hotel if guests come down with legionella and seek claims for damages from the company.
ProMinent provides effective solutions for eliminating legionella and other pathogens in the long term.
Chlorine dioxide and ozone spell the end of biofilms
Legionella is a threat to guests and staff alike.
A temperature of 30 to 37° Celsius is ideal for legionella growth while it is reliably killed off at temperatures above 70° Celsius.
People become infecting by inhaling aerosols containing bacteria.
So showers, air conditioning systems and warm whirlpools are particular risk areas.
Biofilms, which are present in all water pipes and tanks and are resistant to most disinfection processes, are the perfect breeding ground for these dangerous bacteria if the temperature is right.
ProMinent has years of expertise in both fighting legionella in water pipes using chlorine dioxide and protecting against contamination of cooling circuits through the addition of ozone.
Efficient complete systems effectively remove biofilms and prevent them from forming again in the long term.
Added value for hotels and resorts:
- Cost savings compared with energy-intensive thermal disinfection, which causes wear to material
- Reduced staff input
- No risk of claims for damages from sick guests
Swimming pool water treatment in hotels and resorts
An attractive pool with crystal-clear water is absolutely essential
You are an expert in pampering your guests, young and old, with everything they could desire.
This usually includes an attractive swimming pool or even a luxurious spa area.
This is where one of our core skills come in.
Palms, pools and high-tech solutions
ProMinent provides tailored solutions for the optimum treatment of pool water: we are your one-stop-shop for disinfection, pH correction and flocculation.
And we deliver all this for everything from small indoor pools and whirlpools to large-scale wellness and pool facilities.
From our extensive range of standard to high-end services, pick the solution to meet your needs: from conventional chemical treatment through to chemical-free processes which protect both pool users and the environment.
Take advantage of our experience
You benefit from our years of experience gained in numerous successful hotel projects around the globe.
Our high quality standards include first-class products, a worldwide service and the networking of all system components with state-of-the-art bus technology for simple operation.
ProMinent guarantees perfect pool water quality at all times, which will keep guests of all ages happy.
Potable Water Supply in Hotels and Resorts
Only the best for your guests: clean potable water around the clock
Clean potable water is a basic requirement for guest satisfaction and therefore commercial success.
ProMinent’s treatment systems enable you to provide outstanding quality water all year round.
Cut costs with know-how and efficient systems
Public supplies of potable water or in-house water treatment from existing sources such as springs, seawater or surface water – ProMinent has the expertise to find the right solution and provides the appropriate systems for desalination and disinfection, for example.
The ready mounted or specifically configured complete, ready-for-use solutions ensure continually high water quality through taste and odour neutrality, microbiological hygiene in line with the global WHO standards and, most importantly, continual availability.
Another benefit is the reduced hardness, which greatly helps to preserve systems and pipework.
Your operating costs are also slashed as there is no need for external water supplies.
Metering of Fluids
Incredibly simple and efficient metering of chemicals
We transport chemicals with ease in any industrial environment: ProMinent solutions store, transfer and meter substances at rates of 0.1 l/h to 100,000 l/h at a pressure of 2 to 3,000 bar.
ProMinent metering solutions are popular everywhere from simple control circuits to complex fieldbus applications.
Our range of metering pumps and the associated measuring and control technology make light work of any challenge.
Automated metering systems improve the process and product quality.
Robust solutions withstand even the toughest of ambient conditions.
Complete solutions are ready for use with no installation costs.
The benefits for you: Reductions in chemical use, operating effort and costs for waste water disposal and improvements in environmental sustainability.
