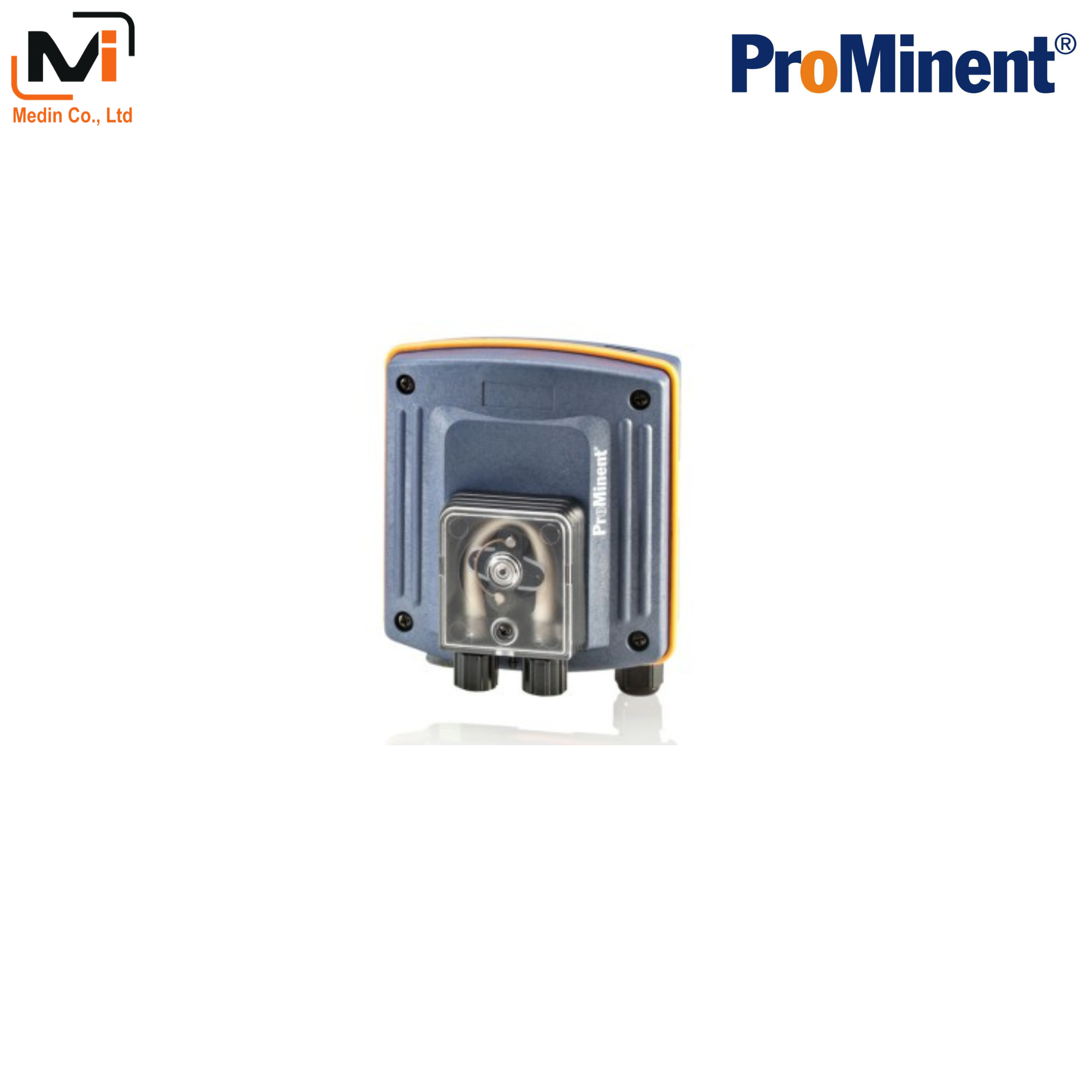

Peristaltic Pump DULCOFLEX DF2a ProMinent

Capacity range 0.4 – 2.4 l/h at max. 1.5 bar back pressure

The peristaltic pump DULCOFLEX DF2a meters chemicals functionally, cost-effectively and quietly – ideal for use in swimming pools, hot tubs, and in spa and wellness facilities.

Danh mục: AUTOMATION, Peristaltic Pumps, PROMINENT

Mô tả

Downloads

Peristaltic Pump DULCOFLEX DF2a ProMinent

Capacity range 0.4 – 2.4 l/h at max. 1.5 bar back pressure

The peristaltic pump DULCOFLEX DF2a meters chemicals functionally, cost-effectively and quietly – ideal for use in swimming pools, hot tubs, and in spa and wellness facilities.

The optimum pump product range for use in swimming pools, hot tubs, and spa zones.

The feed chemical is transported by the rotor squeezing the hose in the direction of flow. This explains why there is no need for valves. The feed chemical is thus handled with care. Typical applications: wherever lower pump pressure is sufficient. For example when metering conditioners in private pools.

Your benefits

Smooth inner wall reduces deposits.
Hose materials: PharMed^® or Viton^®
Virtually silent operation
Simple handling
Enhanced service life of the hose due to spring-loaded rollers, which keep the rolling pressure constant
Robust and protected against spray water from all sides: Housing made of impact-resistant and chemical-resistant PPE

Technical Details

Self-priming against max. 1.5 bar
Control or flow control via ON/OFF power supply
Degree of protection IP 65
OEM versions on request

Technical Data

Type	Pump capacity at max. back pressure		Frequency	Connector size	Suction lift	Intake head
	bar	l/h	rpm	outer Ø x inner Ø	m WC	m WC
0204	1.5	0.4	5	6×4/10×4	4	3
0208	1.5	0.8	10	6×4/10×4	4	3
0216	1.5	1.6	20	6×4/10×4	4	3
0224	1.5	2.4	30	6×4/10×4	4	3

Permissible ambient temperature:	10-45 °C
Approx. power consumption:	5 W
Switching-on duration:	100%
Degree of protection:	IP 65

All data calculated with water at 20 °C.

Field of application

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

Meters conditioners in private pools
Meters belt lubricants in bottling machines
Meters cleaning agents in dishwashers

Flocculation in public swimming pools

Precise metering of flocculants delivers optimum filtration

Flocculants allow the smallest of particles dispersed as colloids to be removed from the swimming pool water. Our metering pumps can be set with great accuracy and ensure a precise and continuous supply of precisely calculated quantities of this flocculant.

Accurate metering counts

The metering of flocculants is an effective aid to the treatment of swimming pool water. This combined chemical and physical-technical process enables the filtration of tiny colloidal particles (< 1 µm) with a negative charge. The positively charged flocculant attracts these particles and macroflocs form, which can then be filtered, allowing undesired substances to be removed from the water circuit.

Minimise the consumption of chemicals

In order to minimise the consumption of chemicals, the circulating capacity can be reduced if the water values are spot on.

As a result the proportional metering of flocculant can be reduced too – with everything regulated and controlled by ProMinent measuring and control technology.

Constant and accurate metering

One crucial factor for flocculation is the constant and accurate metering of small volumes of flocculant.

As a pioneer of solenoid metering pumps, ProMinent’s product ranges can be used to accurately set a minimum metering volume using stroke length and metering frequency.

Continuously controllable metering

Alternatively, you can use our special peristaltic pump DF4a with CAN bus control to steplessly control flocculant metering.

This way you reliably supply the desired volume to your water treatment system at all times.

Internal Water Management in Hotels and Resorts

The best water for your kitchens and laundry

Fresh bedding and sweet-smelling towels in rooms, spotlessly clean dishes and fine dining in the restaurant – desalinated and germ-free water is absolutely essential.

You have the staff, we have the system technology.

Membrane filtration – The right recipe for desalination

Internal water management benefits greatly from fully desalinated and soft water: expensive detergent can be saved in the kitchens, there is no need for time-consuming polishing of dishes and the quality of the food is improved.

There are fewer deposits in machines and detergent consumption is reduced in the laundry.

The heating system and steam generation are also more efficient and reliable in the long term thanks to the addition of corrosion inhibitors.

In water treatment, membrane filtration is the process for removing particles and salts in the water with the lowest operating costs – and ProMinent is a specialist in this area.

Our experts use their thorough knowledge of the industry to design a tailored complete solution with perfectly matched upstream and downstream treatment.

Complete reverse osmosis systems integrated in standard transport containers are one of our specialities.

Another is our fully ready mounted metering systems, which just have to be connected to the hydraulic and electric supply – real “plug & play”.

Fighting Legionella in Hotels and Resorts

Squeezing out legionella and pathogens

It can be disastrous for any hotel if guests come down with legionella and seek claims for damages from the company.

ProMinent provides effective solutions for eliminating legionella and other pathogens in the long term.

Chlorine dioxide and ozone spell the end of biofilms

Legionella is a threat to guests and staff alike.

A temperature of 30 to 37° Celsius is ideal for legionella growth while it is reliably killed off at temperatures above 70° Celsius.

People become infecting by inhaling aerosols containing bacteria.

So showers, air conditioning systems and warm whirlpools are particular risk areas.

Biofilms, which are present in all water pipes and tanks and are resistant to most disinfection processes, are the perfect breeding ground for these dangerous bacteria if the temperature is right.

ProMinent has years of expertise in both fighting legionella in water pipes using chlorine dioxide and protecting against contamination of cooling circuits through the addition of ozone.

Efficient complete systems effectively remove biofilms and prevent them from forming again in the long term.

Added value for hotels and resorts:

Cost savings compared with energy-intensive thermal disinfection, which causes wear to material
Reduced staff input
No risk of claims for damages from sick guests

Swimming pool water treatment in hotels and resorts

An attractive pool with crystal-clear water is absolutely essential

You are an expert in pampering your guests, young and old, with everything they could desire.

This usually includes an attractive swimming pool or even a luxurious spa area.

This is where one of our core skills come in.

Palms, pools and high-tech solutions

ProMinent provides tailored solutions for the optimum treatment of pool water: we are your one-stop-shop for disinfection, pH correction and flocculation.

And we deliver all this for everything from small indoor pools and whirlpools to large-scale wellness and pool facilities.

From our extensive range of standard to high-end services, pick the solution to meet your needs: from conventional chemical treatment through to chemical-free processes which protect both pool users and the environment.

Take advantage of our experience

You benefit from our years of experience gained in numerous successful hotel projects around the globe.

Our high quality standards include first-class products, a worldwide service and the networking of all system components with state-of-the-art bus technology for simple operation.

ProMinent guarantees perfect pool water quality at all times, which will keep guests of all ages happy.

Potable Water Supply in Hotels and Resorts

Only the best for your guests: clean potable water around the clock

Clean potable water is a basic requirement for guest satisfaction and therefore commercial success.

ProMinent’s treatment systems enable you to provide outstanding quality water all year round.

Cut costs with know-how and efficient systems

Public supplies of potable water or in-house water treatment from existing sources such as springs, seawater or surface water – ProMinent has the expertise to find the right solution and provides the appropriate systems for desalination and disinfection, for example.

The ready mounted or specifically configured complete, ready-for-use solutions ensure continually high water quality through taste and odour neutrality, microbiological hygiene in line with the global WHO standards and, most importantly, continual availability.

Another benefit is the reduced hardness, which greatly helps to preserve systems and pipework.

Your operating costs are also slashed as there is no need for external water supplies.

Metering of Fluids

Incredibly simple and efficient metering of chemicals

We transport chemicals with ease in any industrial environment: ProMinent solutions store, transfer and meter substances at rates of 0.1 l/h to 100,000 l/h at a pressure of 2 to 3,000 bar.

ProMinent metering solutions are popular everywhere from simple control circuits to complex fieldbus applications.

Our range of metering pumps and the associated measuring and control technology make light work of any challenge.

Automated metering systems improve the process and product quality.

Robust solutions withstand even the toughest of ambient conditions.

Complete solutions are ready for use with no installation costs.

The benefits for you: Reductions in chemical use, operating effort and costs for waste water disposal and improvements in environmental sustainability.

—-
