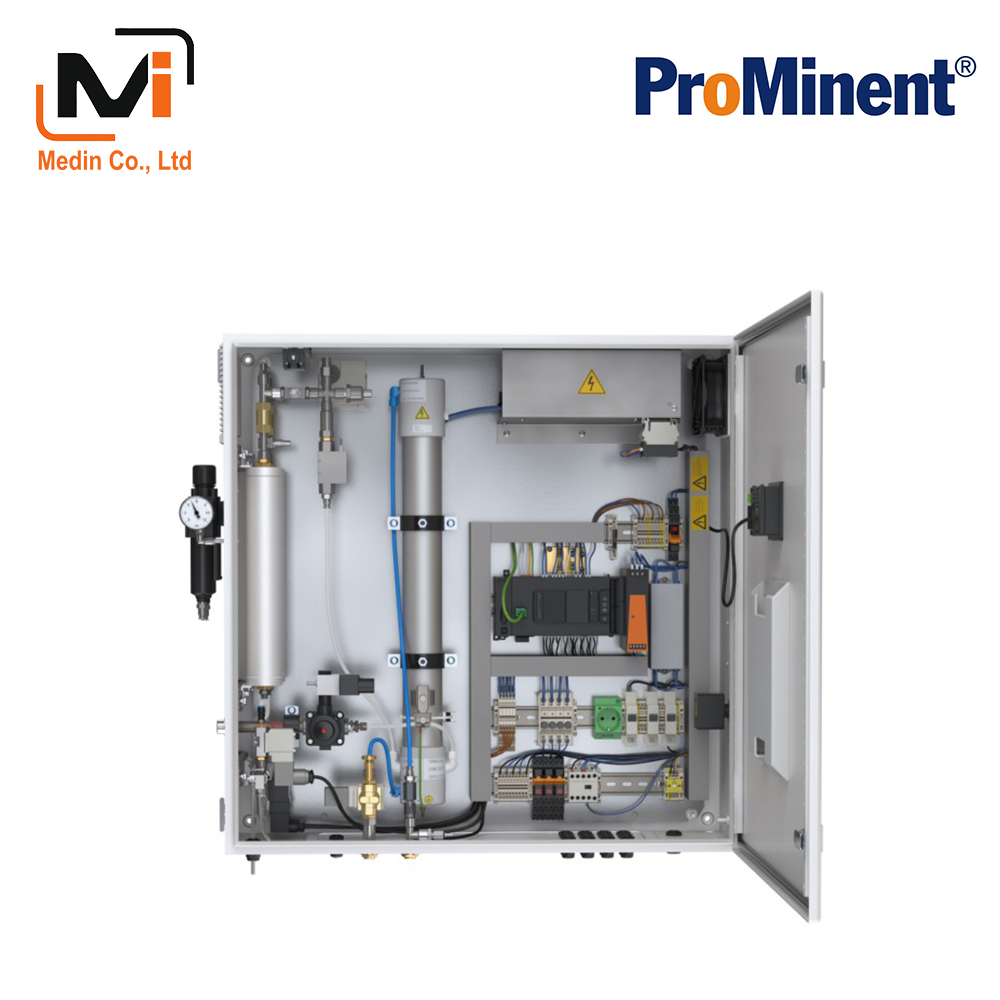

Ozone System OZONFILT OZVb ProMinent

Ozone capacity 10 – 70 g ozone/h

OZONFILT OZVb is powerful and compact and is ideal for efficient ozone generation from compressed air in the output range of up to 70 g/h.

The turnkey ozone system including mixing equipment offers everything you need for safe and seamless operation.

Product description

Powerful and environmentally-friendly disinfection and oxidation

Ozone systems OZONFILT OZVb are pressurised systems in which compressed air is fed into the ozone generator.

The ozone is generated from the oxygen in the compressed air and simultaneously metered. The integrated air treatment system is designed as a pressure swing dryer. Ozone can therefore be generated safely and reliably even in difficult conditions with ozone concentrations of up to 20 g/Nm³. Ozone concentrations in the water to be treated of up to 12 ppm can be achieved using our coordinated mixing equipment with an efficiency of up to 95%.

Legal notice for operating ozone systems in Europe:

For legally compliant operation of ozone systems in Europe, the system must be approved and/or registered in accordance with the Biocidal Products Regulation (EU) No. 528/2012. As a member of EurO₃zon, ProMinent automatically provides the necessary approval for biocidal applications in accordance with the Biocidal Products Regulation on behalf of its customers. For more information, see https://www.prominent.de/resources/Other/German/26231/20210216-Kunden-Info-BPR-REACH.pdf.

Your benefits

Safe and seamless operation through continuous monitoring of all relevant operating data
Simple, safe and reliable operation with process visualisation thanks to colour and clear 4.3″ touch panel
Compact system with integral air treatment
Turnkey complete system with perfectly coordinated mixing device including back pressure valve, vacuum breaker and static mixer
Direct injection without injector system for up to 4 bar back pressure
Low maintenance and operating costs thanks to maintenance-free generator concept and virtually infinite service life

Technical Details

4 different sizes depending on the capacity range
Compact mounting in a painted steel cabinet
Special dielectric with outstanding cooling performance: in spite of the low cooling water consumption, heat is quickly and efficiently discharged before the ozone produced can decompose due to excessive heat
Integrated air treatment based on a pressure swing dryer with adjustable throttle valve and analogue flow measurement and pressure monitoring
Continuous analogue pressure measurement in the ozone generator with automatic capacity adjustment to compensate for pressure fluctuations
Cooling water system with automatic shut-off valve, adjustment valve and monitoring device via flow and temperature sensor
Gas-tight diaphragm valve at the ozone outlet
PLC control with operating data recorded on an SD card
Simple, safe and reliable operation with process visualisation thanks to colour and clear 4.3″ touch panel
Contact inputs for external On/Off switching, gas detector connector, external fault alert, flow control
4-20 mA analogue input for power control depending on the measured value combined with external measuring and control technology
Contact outputs for common alarm message, warning and operation
Wide range of communication interfaces for connection to higher-level controls or for remote monitoring (PROFIBUS^® DP, PROFINET^®, Modbus TCP or RTU)

Options

Stainless steel control cabinet
Pressure controller with filter unit at the compressed air input
Different designs of ready-wired installed mixing unit up to complete equipment including back pressure valve, vacuum breaker and integral static mixer
Air conditioning: The system can be equipped with integrated air conditioning at ambient temperatures above 40 °C
Control of a cooling water chiller
Integration of a dew point sensor to monitor the quality of compressed air

Technical Data

Ambient parameters

Max. 85% air humidity of the ambient air, non-condensing, non-corrosive, dust-free, max. ambient temperature: 40 °C (with integrated air conditioning system: 50 °C)

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
* Nm³ = m³ under normal [standard] conditions (p = 1.013 x 10⁵ Pa, T = 273 K)
Number of modules		1	1	1	2
Ozone capacity, measured in accordance with DIN with air at 20 °C, cooling water at 15 °C	g/h	10	20	35	70
Ozone output max. 2.5 bar	g/h	8.0	16.0	28.0	56.0
Ozone output max. 3.0 bar	g/h	6.2	12.4	21.7	43.4
Ozone output max. 3.5 bar	g/h	4.4	8.8	15.4	30.8
Air consumption (only ozone generation)	Nm³/h	0.50	1.00	1.75	3.50
Ozone concentration in the gas phase referenced to nominal conditions*	g/Nm³	20	20	20	20
Specific energy requirement at nominal capacity	Wh/g	16.5	16.5	16.5	16.5

Electrical Connection

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Mains connected load	V/Hz/A	230/50;60/2	230/50;60/6	230/50;60/6	230/50;60/10
Enclosure rating		IP54	IP54	IP54	IP54
Degree of protection with integrated air conditioning unit (internal/external)		IP 54 / IP 34	IP 54 / IP 34	IP 54 / IP 34	IP 54 / IP 34

Overall Dimensions (Without Mixer)

Wall-mounted cabinet with OZVb 1, 2 and 3 sizes; floor-mounted cabinet with OZVb 4 size

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Width	mm	760	760	800	800
Height	mm	760	760	1,000	1,200
Depth	mm	300	300	300	300

Weight

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Weight	kg	80	80	95	140

Ozone Mixing

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Max. raw water temperature	°C	35	35	35	35
Pressure at ozone output	bar	0.8…4.0	0.8…4.0	0.8…4.0	0.8…4.0

Air Supply

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Air demand	Nl/min	11.1	22	38	76

Air quality

oil and dust-free, non-corrosive, constant priming pressure of 4.5 – 10 bar, max. temperature 40 ° C

Cooling Water

		OZVb 1	OZVb 2	OZVb 3	OZVb 4
Cooling water consumption (15 °C)	l/h	10	20	35	70
Cooling water inlet pressure	bar	1…5	1…5	1…5	1…5
Cooling water inlet		G 1/4″ internal	G 1/4″ internal	G 1/4″ internal	G 1/4″ internal
Cooling water outlet		G 1/4″ internal	G 1/4″ internal	G 1/4″ internal	G 1/4″ internal
Cooling water temperature at ambient temp. max. 35 °C	°C	30	30	30	30
Cooling water temperature at ambient temp. 35–40 °C	°C	25	25	25	25

Cooling water quality

No tendency to form lime scale, no corrosive components; sedimentation substances: < 0.1 ml/l; no particles > 100 µm; iron: < 0.2 mg/l; manganese: < 0.05 mg/l; conductivity: > 100 µS/cm; chloride: < 250 mg/l

Field of application

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

Drinking water supply: Oxidation of iron, manganese and arsenic, refinement and taste enhancement and disinfection
Food and beverage industry: Oxidation of iron and manganese, disinfection of table water and rinser water
Swimming pools: Degradation of disinfection by-products, reliable microbiological barrier and production of crystal-clear water thanks to its microflocculating effect
Industry: Legionella prevention and disinfection of cooling water

Secondary disinfection using UV and ozone in public swimming pools
