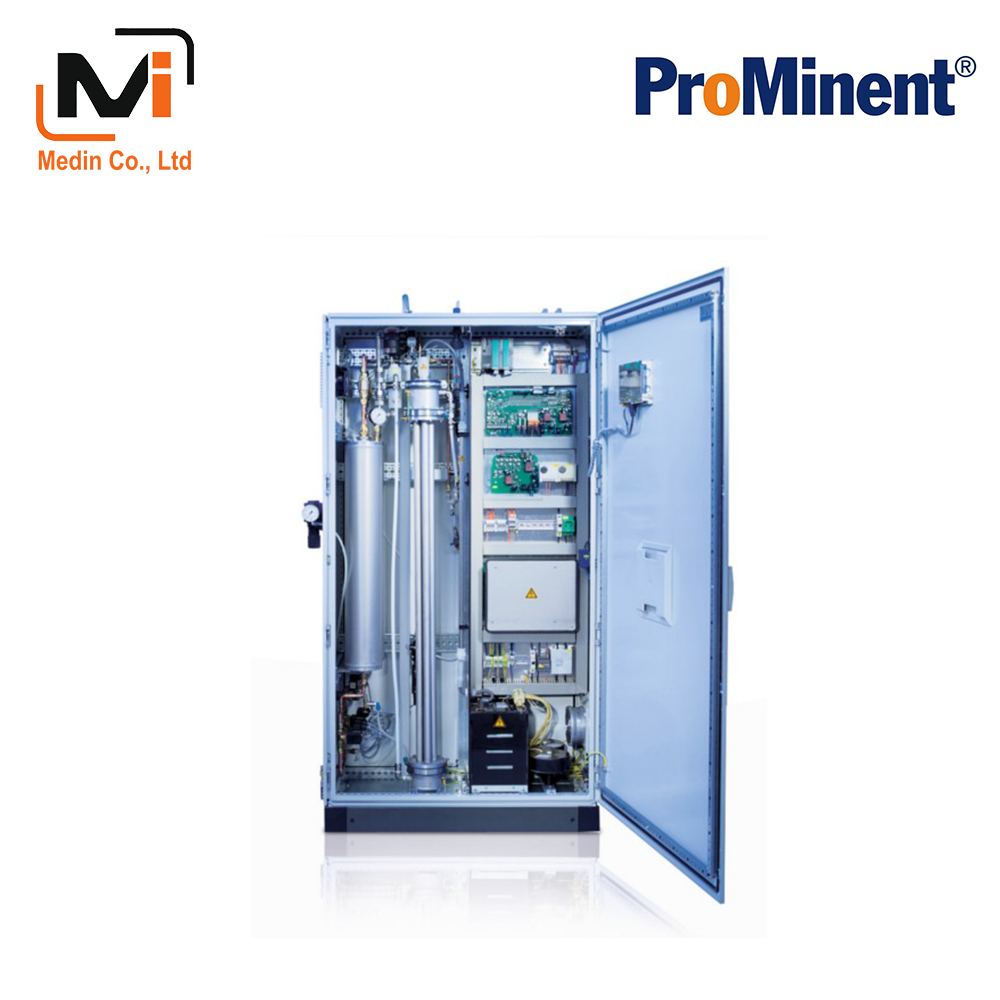

Ozone System OZONFILT OZMa ProMinent

Ozone capacity 70 – 420 g ozone/h

OZONFILT OZMa is synonymous with maximum operational safety and minimal operating costs.

The ozone generator is maintenance-free and generates up to 420 g/h of ozone from compressed air.

Product description

Powerful and yet environmentally friendly. Disinfect and oxidise ecologically and economically.

The ozone systems OZONFILT OZMa are pressurised systems, in which the feed gas – air – is fed into the ozone generator under pressure.

Air is used as the feed gas in the ozone system OZONFILT OZMaA type 1 to 6

The ozone is generated from the oxygen in the ambient air and simultaneously metered. A demand-driven, self-optimising pressure swing dryer reduces the consumption of compressed air to a minimum. Ozone can therefore be generated safely and reliably even with a high level of ambient air humidity with ozone concentrations of up to 20 g/Nm³. Using the suitable mixing equipment, ozone concentrations of between 3 and 12 ppm can be achieved in the water to be treated, depending on the temperature.

Legal notice for operating ozone systems in Europe:

For legally compliant operation of ozone systems in Europe, the system must be approved and/or registered in accordance with the Biocidal Products Regulation (EU) No. 528/2012 or REACH Regulation (EC) No. 1907/2006. As a member of EurO₃zon, ProMinent automatically provides the necessary approval for biocidal applications in accordance with the Biocidal Products Regulation on behalf of its customers. Other applications will have to be registered in accordance with REACH. This must be done by the operator but assistance can be provided by EurO₃zon. For more information, see https://www.prominent.de/resources/Other/German/26231/20210216-Kunden-Info-BPR-REACH.pdf.

Your benefits

Economical: maintenance-free generator concept with virtually unlimited service life
Up to 30% energy savings for air treatment, thanks to demand-controlled and self-optimising air drying compared to conventional air treatment.
Automatic control of the feed gas depends on the ozone output, therefore reduced consumption of feed gas is produced with intensive use of energy.
High ozone concentration ensures optimum ozone solubility in water
Direct injection without injector system for up to 2 bar back pressure
Automatic ozone generation, virtually independent of fluctuations in mains voltage and pressure

Technical Details

Compact mounting, ready-to-use in a painted steel cabinet or optionally in a stainless steel cabinet
With integrated filter package for the removal of dust and small amounts of residual oil in the compressed air
Special dielectric with excellent cooling: in spite of the low cooling water consumption, heat is quickly and efficiently discharged before the ozone produced can decompose due to excessive heat.
PLC with integrated ozone measurement and PID control
7″ touch panel with data logger and screen plotter
Multiple communications interfaces (e.g. LAN, Profibus^® DP, ISDN, TCP)
Excellent efficiency: over 90% of the ozone is dissolved in the water thanks to the special construction of the mixing unit.
Integration of a dew point sensor to monitor the quality of compressed air
Integration of an air conditioning unit to adjust the temperature of the ozone system
Pause input for external switching on/off
Contact input for locking the system, for example in the absence of flow
Digital input for connecting a gas detector
Digital input for controlling two power stages
0/4-20 mA input for external output control depending on the flow or measured value with a PIC controller
Second freely configurable 0/ 4-20 mA input
Contact output for operating status
Contact output for common alarm message
Contact output for limit violation, ozone concentration in the water too low
One freely configurable 0/ 4-20 mA output

Technical Data

Ozone Generation Systems OZONFILT OZMa 1-3 A (Process Gas – Air)

Ambient parameters

Max. 85% air humidity of the ambient air, non-condensing, non-corrosive, dust-free, max. ambient temperature: 40 °C (with integrated air conditioning system: 50 °C)

		OZMa 1A	OZMa 2A	OZMa 3A
Number of modules		1	1	1
Ozone capacity, measured in accordance with DIN with air at 20 °C, cooling water at 15 °C	g/h	70	105	140
Air consumption (only ozone generation)	Nm3/h	3.50	5.25	7.00
Ozone concentration in the gas phase referenced to nominal conditions	g/Nm3	20	20	20
Specific energy requirement at nominal capacity	Wh/g	16.5	16.5	16.5
Power factor at full capacity	cos φ	0.95	0.95	0.95
Ozone connection		Rp 3/8″	Rp 3/8″	Rp 3/8″

Electrical Connection

		OZMa 1A	OZMa 2A	OZMa 3A
Mains connected load V/Hz/A	V/Hz/A	230/50;60/10	230/50;60/16	230/50;60/16
Enclosure rating		IP54	IP54	IP54
Degree of protection with integrated air conditioning unit (internal/external)		IP 54 / IP 34	IP 54 / IP 34	IP 54 / IP 34

Overall Dimensions (Without Mixer)

		OZMa 1A	OZMa 2A	OZMa 3A
Width	mm	1,114	1,114	1,114
Height	mm	1,961	1,961	1,961
Depth	mm	405	405	405

Weight

		OZMa 1A	OZMa 2A	OZMa 3A
Weight	kg	270	280	300

Ozone Mixing

		OZMa 1A	OZMa 2A	OZMa 3A
Max. raw water temperature	°C	35	35	35
Pressure at ozone output	bar	0.8…2.0	0.8…2.0	0.8…2.0

Air Supply

		OZMa 1A	OZMa 2A	OZMa 3A
Air demand	Nl/min	73	110	147

Air quality

oil and dust-free, non-corrosive, constant priming pressure of 4.5 – 10 bar, max. temperature 40 ° C

Cooling Water

		OZMa 1A	OZMa 2A	OZMa 3A
Cooling water consumption (15 °C)	l/h	90	135	180
Cooling water consumption (30 °C)	l/h	125	190	250
Cooling water inlet pressure	bar	2…5	2…5	2…5
Cooling water outlet, open discharge	mm	8 x 5	8 x 5	12 x 9
Cooling water inlet, PE pressure hose	mm	8 x 5	8 x 5	12 x 9

Cooling water quality

No tendency to form lime scale, no corrosive components; sedimentation substances: < 0.1 ml/l; no particles > 100 µm; iron: < 0.2 mg/l; manganese: < 0.05 mg/l; conductivity: > 100 µS/cm; chloride: < 250 mg/l

Ozone Generation Systems OZONFILT OZMa 4-6 A (Process Gas – Air)

Ambient parameters

Max. 85% air humidity of the ambient air, non-condensing, non-corrosive, dust-free, max. ambient temperature: 40 °C (with integrated air conditioning system: 50 °C)

		OZMa 4A	OZMa 5A	OZMa 6A
* Nm3 = m3 under normal [standard] conditions (p = 1.013 x 105 Pa, T = 273 K)
Number of modules		2	2	3
Ozone capacity, measured in accordance with DIN with air at 20 °C, cooling water at 15 °C	g/h	210	280	420
Air consumption (only ozone generation)	Nm3/h	10.50	14.00	21.00
Ozone concentration in the gas phase referenced to nominal conditions*	g/Nm3	20	20	20
Specific energy requirement at nominal capacity	Wh/g	16.5	16.5	16.5
Power factor at full capacity	cos φ	0.95	0.95	0.95
Ozone connection		Rp 3/8″	Rp 3/8″	Rp 3/8″

Electrical Connection

		OZMa 4A	OZMa 5A	OZMa 6A
Mains connected load V/Hz/A	V/Hz/A	400/50;60/16	400/50;60/16	400/50;60/16
Enclosure rating		IP54	IP54	IP54
Degree of protection with integrated air conditioning unit (internal/external)		IP 54 / IP 34	IP 54 / IP 34	IP 54 / IP 34

Overall Dimensions (Without Mixer)

		OZMa 4A	OZMa 5A	OZMa 6A
Width	mm	1,320	1,320	1,606
Height	mm	1,961	1,961	1,961
Depth	mm	605	605	605

Weight

		OZMa 4A	OZMa 5A	OZMa 6A
Weight	kg	420	445	580

Ozone Mixing

		OZMa 4A	OZMa 5A	OZMa 6A
Max. raw water temperature	°C	35	35	35
Pressure at ozone output	bar	0.8…2.0	0.8…2.0	0.8…2.0

Air Supply

		OZMa 4A	OZMa 5A	OZMa 6A
Air demand	Nl/min	220	293	440

Air quality

oil and dust-free, non-corrosive, constant priming pressure of 4.5 – 10 bar, max. temperature 40 ° C

Cooling Water

		OZMa 4A	OZMa 5A	OZMa 6A
Cooling water consumption (15 °C)	l/h	270	360	540
Cooling water consumption (30 °C)	l/h	300	400	600
Cooling water inlet pressure	bar	2…5	2…5	2…5
Cooling water outlet, open discharge	mm	12 x 9	12 x 9	12 x 9
Cooling water inlet, PE pressure hose	mm	12 x 9	12 x 9	12 x 9

Cooling water quality

Field of application

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

Potable water supply: Oxidation of iron, manganese and arsenic, refinement and taste enhancement and disinfection
Wastewater treatment: Degradation/reduction of COD and microcontaminants, reduction of sewage sludge
Food and beverage industry: Oxidation of iron and manganese, disinfection of potable water and rinser water
Swimming pools: Degradation of disinfection by-products, reliable microbiological barrier and production of crystal-clear water thanks to its microflocculating effect
Industry: Legionella prevention and disinfection of cooling water

Secondary disinfection using UV and ozone in public swimming pools

Efficient secondary disinfection with modern systems

In advanced water treatment, a second stage of disinfection is often added to the standard chlorine process. Modern UV or ozone systems minimise by-products, are easy to install, improve water quality and cut operating costs.

Cut consumption – but maintain effectiveness

ProMinent has become a specialist in efficient and easy-to-install UV and ozone systems, reliably serving customers the world over. In difficult conditions, such as when there are high levels of urea and germs, using ozone systems can increase disinfection protection and minimise use of chlorine as the disinfectant. They are prescribed according to DIN 19643 as an additional means of disinfection for hydrotherapy pools in Germany, provided that there is no ultrafiltration in the water treatment.

Advantages of ozone disinfection

Ozone-based disinfection offers numerous benefits: No unwanted by-products are produced, the smell typically associated with swimming pools doesn’t arise and there is no need to meter flocculants. Circulation capacity, the supply of fresh water and chemical consumption are all reduced, cutting operating costs.

Advantages of UV disinfection

UV systems are a cost-effective way of reliably breaking down chloramines and safely killing off chlorine-resistant germs. The result is vastly improved water quality. Other plus points, all of which help to reduce operating costs, include the minimal space requirement, suitability for retrofitting and the fact that operation requires virtually no maintenance.

Swimming pool water treatment in hotels and resorts

An attractive pool with crystal-clear water is absolutely essential

You are an expert in pampering your guests, young and old, with everything they could desire. This usually includes an attractive swimming pool or even a luxurious spa area. This is where one of our core skills come in.

Palms, pools and high-tech solutions

ProMinent provides tailored solutions for the optimum treatment of pool water: we are your one-stop-shop for disinfection, pH correction and flocculation. And we deliver all this for everything from small indoor pools and whirlpools to large-scale wellness and pool facilities. From our extensive range of standard to high-end services, pick the solution to meet your needs: from conventional chemical treatment through to chemical-free processes which protect both pool users and the environment.

Take advantage of our experience

You benefit from our years of experience gained in numerous successful hotel projects around the globe. Our high quality standards include first-class products, a worldwide service and the networking of all system components with state-of-the-art bus technology for simple operation. ProMinent guarantees perfect pool water quality at all times, which will keep guests of all ages happy.

Utility Water Treatment

It makes economic sense to reuse process water.

Why would you discharge water just because you’ve used it once? If this water is treated properly, it can be reused with ease, cutting costs in no time.

No matter whether it’s very dirty or hardly contaminated at all, process water is easy to treat with ProMinent products and systems. Our filters, reverse osmosis systems and chlorine dioxide metering prevent very dirty water from being contaminated again. Disinfecting with ozone or chlorine dioxide may be all that is required for slightly contaminated water or process water subject to less stringent requirements (water vapour in dairies for example). An investment in process water treatment pays off very quickly.

Waste Water Treatment

Very low-impact treatment for waste water

Our water treatment technology delivers thorough yet environmentally friendly waste water treatment. What’s more, with precisely metered additives and optimised processes, you also save money.

ProMinent waste water treatment solutions reduce environmental impact by achieving very high waste water quality. That means you can focus on production, knowing that the fully automated ProMinent waste water neutralisation system is working in the background to clean the water in line with strict mandatory requirements. Depending on the nature of the waste water, the pH can be controlled and brought to the required level, for example. pH sensors transmit the measured values to a controller. If the value varies from a specified level, a metering pump adds acid or lye to restore the pH to neutral. And of course, metering is very accurate to keep the consumption of expensive chemicals as low as possible.

Water Treatment and Water Disinfection

Modern disinfection solutions for any kind of water

We produce everything in house: all our products, systems and services. As well as being convenient, this is also smart. Disinfection solutions tailored to your needs offer excellent effectiveness.

Our disinfection solutions are as specialised as your industry and your requirements, and that’s the way we like it. We relish a challenge because it allows us to put our innovative systems and years of engineering experience to good use. Our main aim is to achieve efficient disinfection with the minimal use of chemicals, which is better for the environment, people and the machinery. At the same time it also reduces operating costs.

ProMinent offers the full range of disinfection technologies (chlorine dioxide, chlorine gas, ozone, UV light, electrolysis, ECA water and ultrafiltration) and can even combine them. As well as potable water, ProMinent technologies are used to disinfect cooling water, swimming pool water and also process and product water in industrial applications. Because our modern disinfection solutions are always intelligent, we call our water treatment systems Smart Disinfection.

Cooling Water Treatment

Efficiency is everything in the cooling water circuit

Everything at ProMinent revolves around the perfect cooling water circuit, which needs to experience few losses over its long life. The precise metering of inhibitors and biocides and suitable filters make this possible.

ProMinent can help you manage the two greatest challenges faced in operating a cooling tower. Metering inhibitors and biocides into the cooling water and using filters protects the cooling tower facility from corrosion, deposits and biological growth.

We can boost efficiency in cooling towers using

metering systems for hardness stabilisation, disinfection, dispersion and corrosion inhibition
measuring and control technology to control bleeding and measurement-dependent metering of biocides
gravity filters in open cooling circuits and ozone and chlorine dioxide systems to treat cooling water
walk-on containers installed ready for use perform the entire cooling water treatment process – including metering, measurement, control and disinfection with chlorine dioxide and integrated heating and climate control.

Fish processing, fish and shrimp farming

Successful farming and hygienic processing

More and more people are enjoying delicacies from our seas. Fish farms and also the fish processing industry therefore face the huge challenge of producing goods quickly and hygienically. Disinfected water is essential to both industries.

Water quality is a decisive criterion for professional and successful fish or shrimp farming. And the use of measuring, control and metering technology is indispensable. Sensors, like the Dulcotest, provide reliable information about all relevant water parameters, such as pH or oxygen content, at all times. Bono Zon ozone generation systems or UV systems, such as Dulcodes Z, ensure that the water in the farm ponds is correctly disinfected. This is essential if fish and shrimp farms are to protect their livestock from disease.

ProMinent’s metering and disinfection systems are used all over the work to process and package seafood and optimise CIP processes. ProMinent metering systems are an optimum solution for metering cleaning agents and disinfectants while highly efficient ProMinent systems produce chlorine dioxide or ECA.

Production of whey and cheese

Perfect water for the entire production process

To guarantee an end product fit for purpose, ProMinent ensures optimum water quality at every stage of production, thereby reliably complying with statutory hygiene standards.

Both ozone and UV systems are well suited to providing reliable disinfection of process water. Both types of disinfection system have the benefit of being very environmentally-friendly. To also suppress all potential microbiological risks, we recommend using metering and disinfection systems too, especially in CIP processes. ProMinent metering systems are an optimum solution for metering cleaning agents and disinfectants while highly efficient ProMinent systems produce chlorine dioxide or ECA.

Many dairies dispose of the vapour water produced during production via the sewer system. But it is often a good idea to reuse some of this water, firstly to cut high disposal costs and secondly to reduce the amount of fresh water used. For example, the water vapour can be used for the recooling towers, to flush all tanks and pipes, as a cleaning agent additive, as control water to flush the centrifuges or sometimes also in mould washing machines. Because vapour water often contains aromas and other organic substances, providing nutrients for germs, it is essential that it is first disinfected. Chlorine dioxide, reliably and safely generated on site with ProMinent’s Bello-Zon chlorine dioxide generation systems, is a cost-effective way of doing this.

Treating Table Water

Thirst-quenching, superior water quality

ProMinent makes sure only the best water ends up in the bottle: free of germs and residue and ready for storage. Professional water treatment removes all undesired organic matter and impurities.

ProMinent provides very gentle water treatment solutions, such as those with ozone. This disinfectant is very powerful yet leaves no by-products behind. It simply breaks down into oxygen. Consumers are happy because they receive high-quality table water without any germs, metal compounds or organic matter and with no residue from disinfection processes. We also supply measuring and control technology to match the ProMinent water treatment and filter systems.

Removal of micro-pollution

Using powder activated carbon to effectively adsorb man-made trace substances

ProMinent also provides cost-effective solutions for challenging jobs in municipal waste water treatment: micro-pollutants are effectively removed by a complete system for accurately metering powder active carbon.

Man-made trace substances or micro-pollutants are substances which don’t break down easily, such as the remains of medicines, plant protection agents or industrial chemicals. Conventional waste water treatment cannot adequately remove these trace substances from waste water. So they build up in watercourses and natural environments thereby threatening ecosystems.

The metering of powder active carbon in the last stage of municipal waste water treatment systems has proven effective at eliminating such micro-pollutants.
TOMAL, a dry feeding specialist within the ProMinent Group, has developed a highly cost-effective and efficient complete system for the elimination of trace substances that wets and suspends the powder active carbon in a dust-free process and accurately meters it.

—-

>>> Xem thêm sản phẩm ProMinent

Tại Sao Chọn Medin Company?

Nhà Phân Phối Chính Hãng Uy Tín

Medin Company tự hào là nhà phân phối chính hãng bơm định lượng của Prominent Việt Nam, cam kết cung cấp 100% sản phẩm chính hãng với đầy đủ chứng nhận và tem bảo hành quốc tế.

Mỗi sản phẩm đều được nhập khẩu trực tiếp từ nhà sản xuất, đảm bảo chất lượng tốt nhất và giá thành cạnh tranh nhất trên thị trường.

Giải Pháp Tối Ưu, Tiết Kiệm Chi Phí

Với nhiều năm kinh nghiệm trong lĩnh vực tự động hóa, đội ngũ kỹ sư của Medin luôn sẵn sàng phân tích nhu cầu thực tế và đưa ra giải pháp metering pump phù hợp nhất cho từng quy trình sản xuất.

Chúng tôi không chỉ bán sản phẩm mà còn tư vấn tối ưu hóa hệ thống, giúp khách hàng giảm thiểu chi phí đầu tư ban đầu và chi phí vận hành lâu dài.

Lợi ích cụ thể:

Tư vấn lựa chọn dòng bơm phù hợp với tính chất hóa chất
Tính toán lưu lượng và áp suất chính xác
Thiết kế hệ thống định lượng hoàn chỉnh
Đào tạo vận hành và bảo trì cho nhân viên

Hỗ Trợ Kỹ Thuật 24/7 và Bảo Hành Chính Hãng

Hiểu rõ tầm quan trọng của sự liên tục trong sản xuất, Medin cung cấp dịch vụ hỗ trợ kỹ thuật 24/7 qua hotline, email và zalo.

Đội ngũ kỹ sư giàu kinh nghiệm sẵn sàng giải đáp mọi thắc mắc, xử lý sự cố nhanh chóng và cung cấp phụ tùng thay thế chính hãng với thời gian ngắn nhất.

Cam kết bảo hành:

Bảo hành chính hãng từ Prominent Việt Nam
Phụ tùng thay thế chính hãng 100%
Bảo trì định kỳ theo lịch trình
Hỗ trợ nâng cấp và mở rộng hệ thống

Khảo Sát Thực Tế và Sản Phẩm Dùng Thử Miễn Phí

Để khách hàng có thể đánh giá chính xác hiệu quả của giải pháp bơm định lượng, Medin cung cấp dịch vụ khảo sát thực tế tại hiện trường hoàn toàn miễn phí.

Đội ngũ kỹ sư sẽ đến tận nơi để đo đạc, phân tích quy trình và đề xuất giải pháp cụ thể.

Đặc biệt, với các dự án lớn, chúng tôi hỗ trợ sản phẩm dùng thử miễn phí để khách hàng có thể kiểm chứng hiệu quả trước khi quyết định đầu tư.

Điều này thể hiện sự tự tin tuyệt đối của chúng tôi vào chất lượng sản phẩm và giải pháp mà mình cung cấp.

Đội Ngũ Kỹ Sư Chuyên Nghiệp

Với đội ngũ kỹ sư được đào tạo bài bản, có chứng chỉ chuyên môn và nhiều năm kinh nghiệm thực tế trong lĩnh vực tự động hóa, Medin tự tin mang đến cho khách hàng không chỉ là sản phẩm mà còn là tri thức và giải pháp toàn diện.

Chúng tôi thường xuyên tham gia các khóa đào tạo của Prominent để cập nhật công nghệ mới nhất và áp dụng vào thực tế tại Việt Nam.

Liên Hệ Medin Co., Ltd

Công ty TNHH Mễ Đình được thành lập từ năm 2006.
Từ đó đến nay Medin luôn là Công ty dẫn đầu về lĩnh vực Tự Động Hoá ở thị trường trong và ngoài nước với hơn 1,000 khách hàng, cùng với rất nhiều dự án lớn nhỏ cho các nhà máy sản xuất.
Chúng tôi cung cấp cho khách hàng những giải phát tuyệt vời nhất trong việc ứng dụng Tự Động Hoá vào sản xuất
Phương châm: “Giải pháp của chúng tôi, lợi ích của khách hàng”
Giá trị cốt lõi: “Uy tín là sự tồn tại của chúng tôi”

Hơn 20 năm kinh nghiệm, chúng tôi có đội ngũ kỹ sư nhiều kinh nghiệm, có khả năng tư vấn, đưa ra giải pháp có lợi nhất cho khách hàng.
Sự tin tưởng và đồng hành của khách hàng là động lực để Medin phát triển cao hơn và xa hơn.

👉 Nếu bạn có bất kỳ yêu cầu nào, vui lòng liên hệ với chúng tôi.

☎️ Hotline: 0902782082

3 Chi nhánh tại HCM, HN, Đà Nẵng
