Ozone system DULCOZON OZLa ProMinent
Ozone output 360 – 5,760 g ozone/h
DULCOZON OZLa is an ozone generator with low life cycle costs.
It combines a high ozone concentration with unbeatable efficiency.
Product description

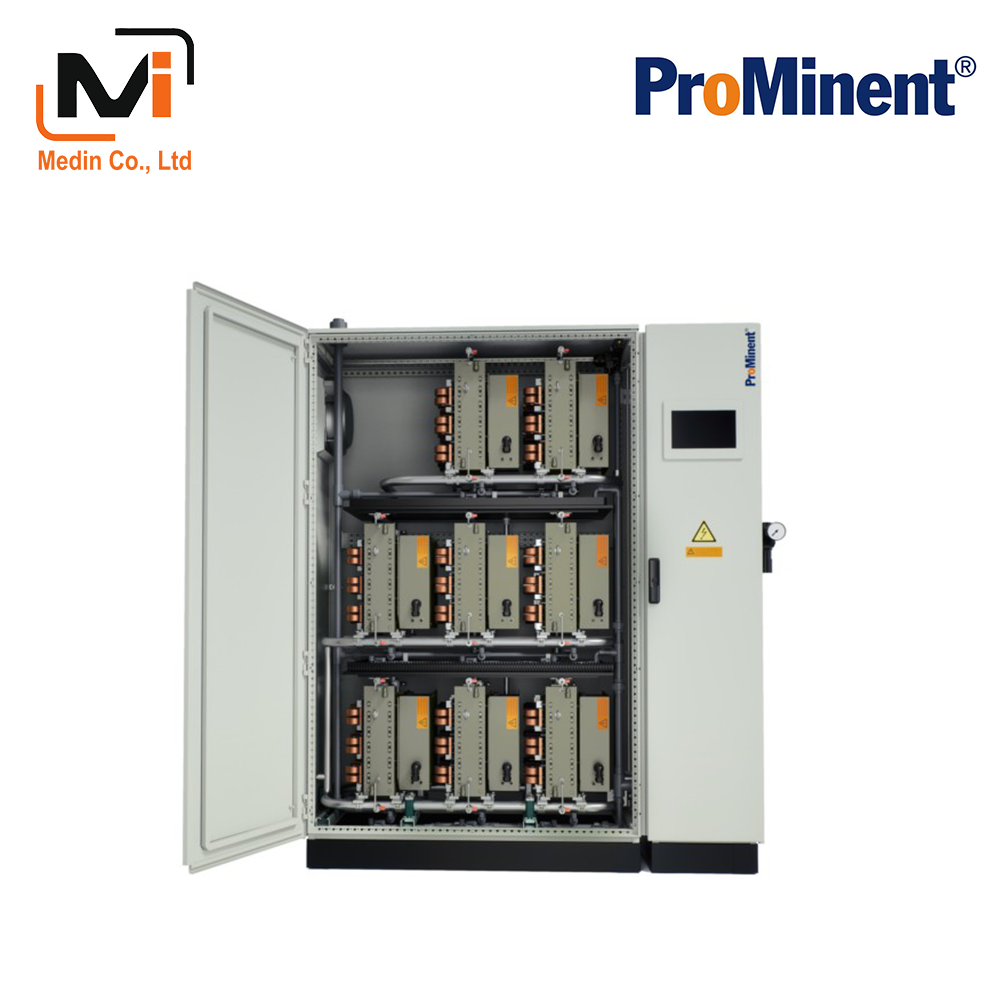

High-output ozone generator with a very compact design.
The ozone systems DULCOZON OZLa are low-maintenance generators. The systems have a modular design and can therefore be flexibly adapted to the process requirements. The simple way in which individual modules are activated and deactivated ensures efficient, built-in redundancy and increases system availability. The ozone generators can be easily integrated into a process control system.
Your benefits
- Minimal energy consumption due to unique efficiency
- Maximum space savings of up to 70 % compared to conventional systems
- High operational reliability thanks to modules that can be switched on and off redundantly
- Minimal oxygen requirement due to high concentration of up to 15 % by weight
- Reliable and robust due to low load on the electrical components
- Simple operation and process visualization via large and colourful 10″ touch screen panel
Technical Details
- 8 different sizes depending on the capacity range
- Compact construction type, ready for connection in a painted steel cabinet
- Modular systems with up to 16 generator blocks
- specific energy consumption below 8.0 Wh/g ozone at an ozone concentration of 10 % by weight and cooling water consumption of 0.7 l/g ozone (15 °C)
- innovative water cooling thanks to a special cooling concept with excellent cooling properties. Fast and efficient heat dissipation even with low cooling water consumption to prevent the ozone produced from decaying due to excessive heat
- Cooling water system per module with automatic shut-off valve, adjustment valve and monitoring device using a flow and temperature sensor
- Oxygen inlet including pressure control system, automatic shut-off valve, adjusting valve and pressure sensor
- Safety valve to protect against overpressure
- Ozone gas outlet with pressure maintenance or pressure control valve
- PLC control with operating data recording on an SD card
- Simple and safe operation with process visualization via colour and clear 10″ touch panel
- Contact inputs for external on/off switching, connector for gas detector, external fault signal and flow control
- Analog input 4-20 mA for measured value-dependent power control in combination with external measuring and control technology
- Contact outputs for collective fault message, Warning and operation
- Various communication interfaces for integration into higher-level controls or for remote monitoring (PROFIBUS® DP, PROFINET®, Modbus TCP)
- Evaluation and analysis program for quick and easy visualization of operating data via a PC
- Optional:
- Mass flow meter with control valve for automatic installation of the ozone concentration at the gas outlet
- Air conditioning: For ambient temperatures above 30 °C, the system can be equipped with an integrated air conditioning unit. The OZLa060-16O systems are equipped with an air conditioning unit as standard.
Technical Data
DULCOZON ozone generation systems OZLa01 – 16O (feed gas – oxygen)
Ambient parameters
85 % max. air humidity of the ambient air, non-condensing, non-corrosive, dust-free, max. ambient temperature: 30 °C
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| * Cooling water: 15 °C, operating gas LOX, details may fluctuate by ± 10 % | |||||||||
| Number of modules | 1 | 2 | 3 | 4 | 6 | 8 | 12 | 16 | |
| Nominal ozone capacity at 148 g/Nm3 (10% weight)* | g/h | 360 | 720 | 1,080 | 1,440 | 2,160 | 2,880 | 4,320 | 5,760 |
| Ozone connection | G1/2” female thread | G1/2” female thread | DN 15 flange | DN 15 flange | DN 25 flange | DN 25 flange | DN 25 flange | DN 25 flange | |
Electrical Connection
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Mains connected load | V/Hz/A | 400-3ph/ 50; 60/ 20 | 400-3ph/ 50; 60/ 25 | 400-3ph/ 50; 60/ 30 | 400-3ph/ 50; 60/ 50 | 400-3ph/ 50; 60/ 50 | 400-3ph/ 50; 60/ 60 | 400-3ph/ 50; 60/ 90 | 400-3ph/ 50; 60/ 120 |
| Enclosure rating | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
Overall dimensions*
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Width | mm | 1,000 | 1,000 | 1,200 | 1,200 | 1,900 | 2,000 | 3,600 | 3,600 |
| Height | mm | 1,400 | 1,400 | 1,900 | 1,900 | 1,900 | 1,900 | 1,900 | 1,900 |
| Depth | mm | 400 | 400 | 600 | 600 | 600 | 600 | 600 | 600 |
Weight
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Weight | kg | 210 | 258 | 343 | 410 | 540 | 770 | 1,060 | 1,340 |
Ozone Mixing
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Max. raw water temperature | °C | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Pressure at ozone output | bar | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 | 0.8…2.5 |
Specification of Operating Gas: Oxygen
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Gas volume at nominal power 148 g/Nm3 | Nm3/h | 2.43 | 4.86 | 7.29 | 9.72 | 14.58 | 19.44 | 29.16 | 38.88 |
Oxygen quality
Particle content 1…5 µm max. 10 mg/m3, dew point max. -50 °C and hydrocarbons max. 40 ppm (expressed as CH4 ). Concentration min. 93 vol %, pressure 4.5…10 bar, temperature max. 30 °C, nitrogen dosing 0.5 – 1 %
Cooling Water
| OZLa01O | OZLa02O | OZLa03O | OZLa04O | OZLa06O | OZLa08O | OZLa12O | OZLa16O | ||
|---|---|---|---|---|---|---|---|---|---|
| Cooling water consumption (15 °C) | l/h | 250 | 500 | 750 | 1,000 | 1,500 | 2,000 | 3,000 | 4,000 |
| Cooling water inlet pressure | bar | 2…2.5 | 2…2.5 | 2…2.5 | 2…2.5 | 2…2.5 | 2…2.5 | 2…2.5 | 2…2.5 |
| PVC cooling water input | DN | 15 | 15 | 20 | 20 | 25 | 25 | 40 | 40 |
| PVC cooling water output | DN | 15 | 15 | 20 | 20 | 25 | 25 | 2 x 25 | 2 x 25 |
Cooling water quality
No tendency to lime precipitation, no corrosive substances; settleable substances: < 0.1 ml/l; no solids > 100 µm; iron: < 0.2 mg/l; manganese: < 0.05 mg/l; conductivity: > 100 µS/cm; chloride: < 250 mg/l. Note: The addition of corrosion inhibitor and biocide, suitable for Aluminimum, is necessary.
Field of application
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Drinking water supply: Oxidation of iron, manganese and arsenic, refinement and taste enhancement and disinfection
- Wastewater treatment: Degradation / reduction of COD and microcontaminants, reduction of sewage sludge and disinfection
- Aquaculture: Oxidation and disinfection during the treatment of water for fish farming
- Textile industry: Oxidation of waste water and treatment of textile fibres
- Industry: Cooling water disinfection and legionella prevention
- Food and beverage industry: Oxidation of iron and manganese
Waste Water Treatment
Very low-impact treatment for waste water
Our water treatment technology delivers thorough yet environmentally friendly waste water treatment. What’s more, with precisely metered additives and optimised processes, you also save money.
ProMinent waste water treatment solutions reduce environmental impact by achieving very high waste water quality. That means you can focus on production, knowing that the fully automated ProMinent waste water neutralisation system is working in the background to clean the water in line with strict mandatory requirements. Depending on the nature of the waste water, the pH can be controlled and brought to the required level, for example. pH sensors transmit the measured values to a controller. If the value varies from a specified level, a metering pump adds acid or lye to restore the pH to neutral. And of course, metering is very accurate to keep the consumption of expensive chemicals as low as possible.
Utility Water Treatment
It makes economic sense to reuse process water.
Why would you discharge water just because you’ve used it once? If this water is treated properly, it can be reused with ease, cutting costs in no time.
No matter whether it’s very dirty or hardly contaminated at all, process water is easy to treat with ProMinent products and systems. Our filters, reverse osmosis systems and chlorine dioxide metering prevent very dirty water from being contaminated again. Disinfecting with ozone or chlorine dioxide may be all that is required for slightly contaminated water or process water subject to less stringent requirements (water vapour in dairies for example). An investment in process water treatment pays off very quickly.
Removal of micro-pollution
Using powder activated carbon to effectively adsorb man-made trace substances
ProMinent also provides cost-effective solutions for challenging jobs in municipal waste water treatment: micro-pollutants are effectively removed by a complete system for accurately metering powder active carbon.
Man-made trace substances or micro-pollutants are substances which don’t break down easily, such as the remains of medicines, plant protection agents or industrial chemicals. Conventional waste water treatment cannot adequately remove these trace substances from waste water. So they build up in watercourses and natural environments thereby threatening ecosystems.
The metering of powder active carbon in the last stage of municipal waste water treatment systems has proven effective at eliminating such micro-pollutants.
TOMAL, a dry feeding specialist within the ProMinent Group, has developed a highly cost-effective and efficient complete system for the elimination of trace substances that wets and suspends the powder active carbon in a dust-free process and accurately meters it.
Fish processing, fish and shrimp farming
Successful farming and hygienic processing
More and more people are enjoying delicacies from our seas. Fish farms and also the fish processing industry therefore face the huge challenge of producing goods quickly and hygienically. Disinfected water is essential to both industries.
Water quality is a decisive criterion for professional and successful fish or shrimp farming. And the use of measuring, control and metering technology is indispensable. Sensors, like the Dulcotest, provide reliable information about all relevant water parameters, such as pH or oxygen content, at all times. Bono Zon ozone generation systems or UV systems, such as Dulcodes Z, ensure that the water in the farm ponds is correctly disinfected. This is essential if fish and shrimp farms are to protect their livestock from disease.
ProMinent’s metering and disinfection systems are used all over the work to process and package seafood and optimise CIP processes. ProMinent metering systems are an optimum solution for metering cleaning agents and disinfectants while highly efficient ProMinent systems produce chlorine dioxide or ECA.
Internal Water Management in Hotels and Resorts
The best water for your kitchens and laundry
Fresh bedding and sweet-smelling towels in rooms, spotlessly clean dishes and fine dining in the restaurant – desalinated and germ-free water is absolutely essential. You have the staff, we have the system technology.
Membrane filtration – The right recipe for desalination
Internal water management benefits greatly from fully desalinated and soft water: expensive detergent can be saved in the kitchens, there is no need for time-consuming polishing of dishes and the quality of the food is improved. There are fewer deposits in machines and detergent consumption is reduced in the laundry. The heating system and steam generation are also more efficient and reliable in the long term thanks to the addition of corrosion inhibitors.
In water treatment, membrane filtration is the process for removing particles and salts in the water with the lowest operating costs – and ProMinent is a specialist in this area. Our experts use their thorough knowledge of the industry to design a tailored complete solution with perfectly matched upstream and downstream treatment. Complete reverse osmosis systems integrated in standard transport containers are one of our specialities. Another is our fully ready mounted metering systems, which just have to be connected to the hydraulic and electric supply – real “plug & play”.
Cooling Water Treatment
Efficiency is everything in the cooling water circuit
Everything at ProMinent revolves around the perfect cooling water circuit, which needs to experience few losses over its long life. The precise metering of inhibitors and biocides and suitable filters make this possible.
ProMinent can help you manage the two greatest challenges faced in operating a cooling tower. Metering inhibitors and biocides into the cooling water and using filters protects the cooling tower facility from corrosion, deposits and biological growth.
We can boost efficiency in cooling towers using
- metering systems for hardness stabilisation, disinfection, dispersion and corrosion inhibition
- measuring and control technology to control bleeding and measurement-dependent metering of biocides
- gravity filters in open cooling circuits and ozone and chlorine dioxide systems to treat cooling water
- walk-on containers installed ready for use perform the entire cooling water treatment process – including metering, measurement, control and disinfection with chlorine dioxide and integrated heating and climate control.
Production of whey and cheese
Perfect water for the entire production process
To guarantee an end product fit for purpose, ProMinent ensures optimum water quality at every stage of production, thereby reliably complying with statutory hygiene standards.
Both ozone and UV systems are well suited to providing reliable disinfection of process water. Both types of disinfection system have the benefit of being very environmentally-friendly. To also suppress all potential microbiological risks, we recommend using metering and disinfection systems too, especially in CIP processes. ProMinent metering systems are an optimum solution for metering cleaning agents and disinfectants while highly efficient ProMinent systems produce chlorine dioxide or ECA.
Many dairies dispose of the vapour water produced during production via the sewer system. But it is often a good idea to reuse some of this water, firstly to cut high disposal costs and secondly to reduce the amount of fresh water used. For example, the water vapour can be used for the recooling towers, to flush all tanks and pipes, as a cleaning agent additive, as control water to flush the centrifuges or sometimes also in mould washing machines. Because vapour water often contains aromas and other organic substances, providing nutrients for germs, it is essential that it is first disinfected. Chlorine dioxide, reliably and safely generated on site with ProMinent’s Bello-Zon chlorine dioxide generation systems, is a cost-effective way of doing this.
Water Treatment and Water Disinfection
Modern disinfection solutions for any kind of water
We produce everything in house: all our products, systems and services. As well as being convenient, this is also smart. Disinfection solutions tailored to your needs offer excellent effectiveness.
Our disinfection solutions are as specialised as your industry and your requirements, and that’s the way we like it. We relish a challenge because it allows us to put our innovative systems and years of engineering experience to good use. Our main aim is to achieve efficient disinfection with the minimal use of chemicals, which is better for the environment, people and the machinery. At the same time it also reduces operating costs.
ProMinent offers the full range of disinfection technologies (chlorine dioxide, chlorine gas, ozone, UV light, electrolysis, ECA water and ultrafiltration) and can even combine them. As well as potable water, ProMinent technologies are used to disinfect cooling water, swimming pool water and also process and product water in industrial applications. Because our modern disinfection solutions are always intelligent, we call our water treatment systems Smart Disinfection.
