Micropartner Manipulators With Rigid Arms – Tay Trợ Lực Dalmec

Features

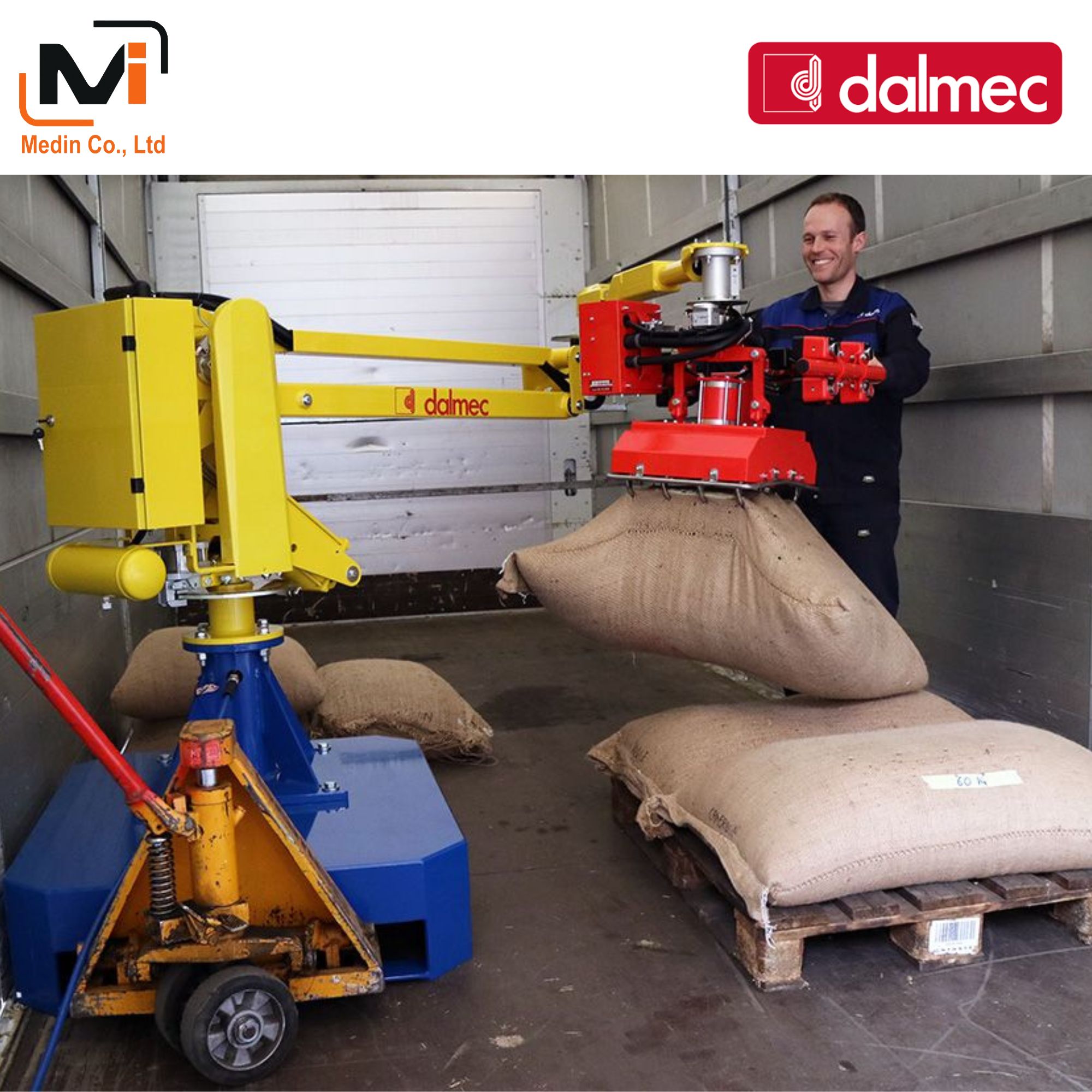

Thanks to Micropartner Manipulator mounted on a portable baseplate for pallet truck, Dalmec can provide solutions for the loading or unloading of various types of goods inside of containers.

The Micropartner Manipulator is equipped with suitable toolings to the load to be handled and thanks to its small size and weight, it is the ideal tool for the handling in areas with reduced spaces such as containers or truck trailers.

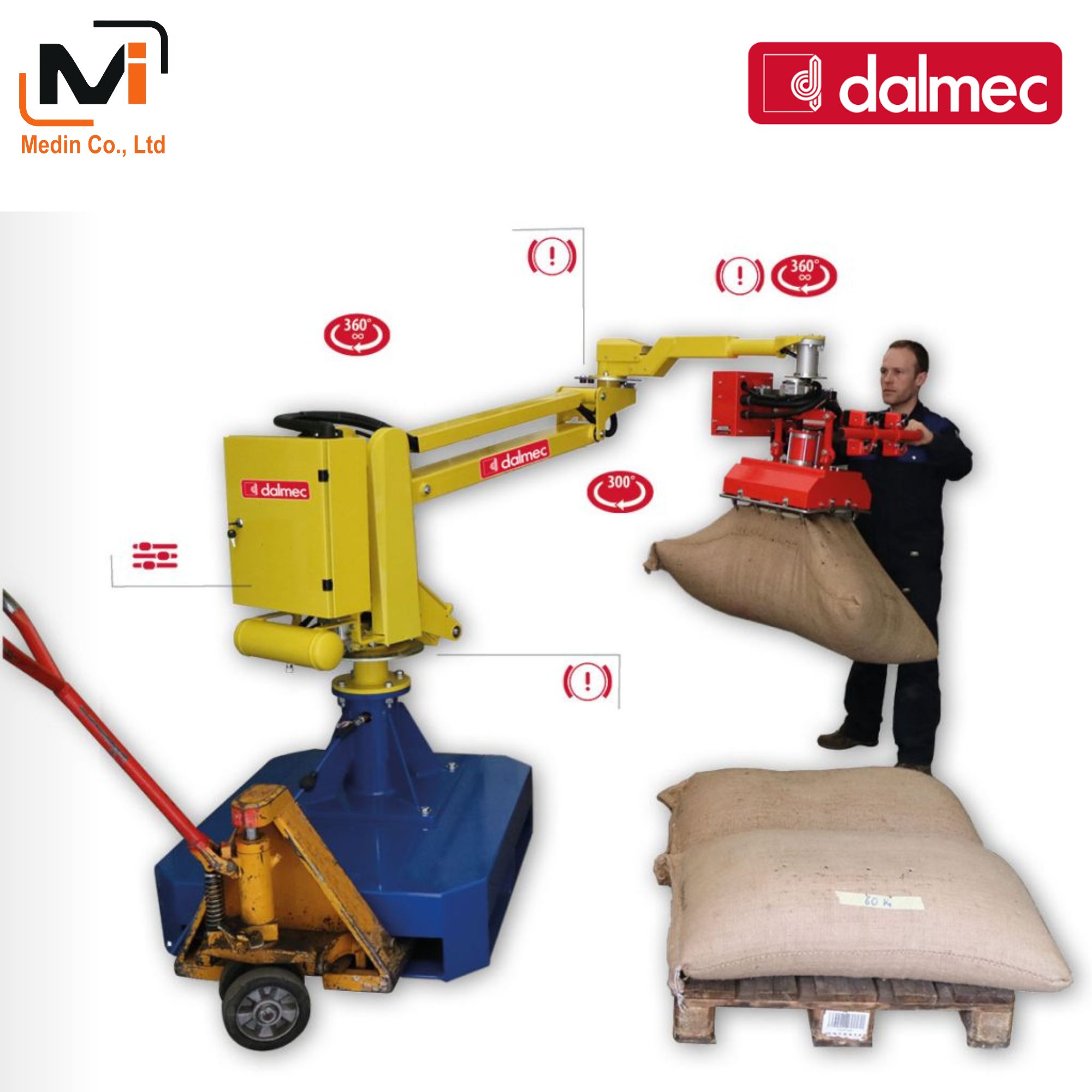

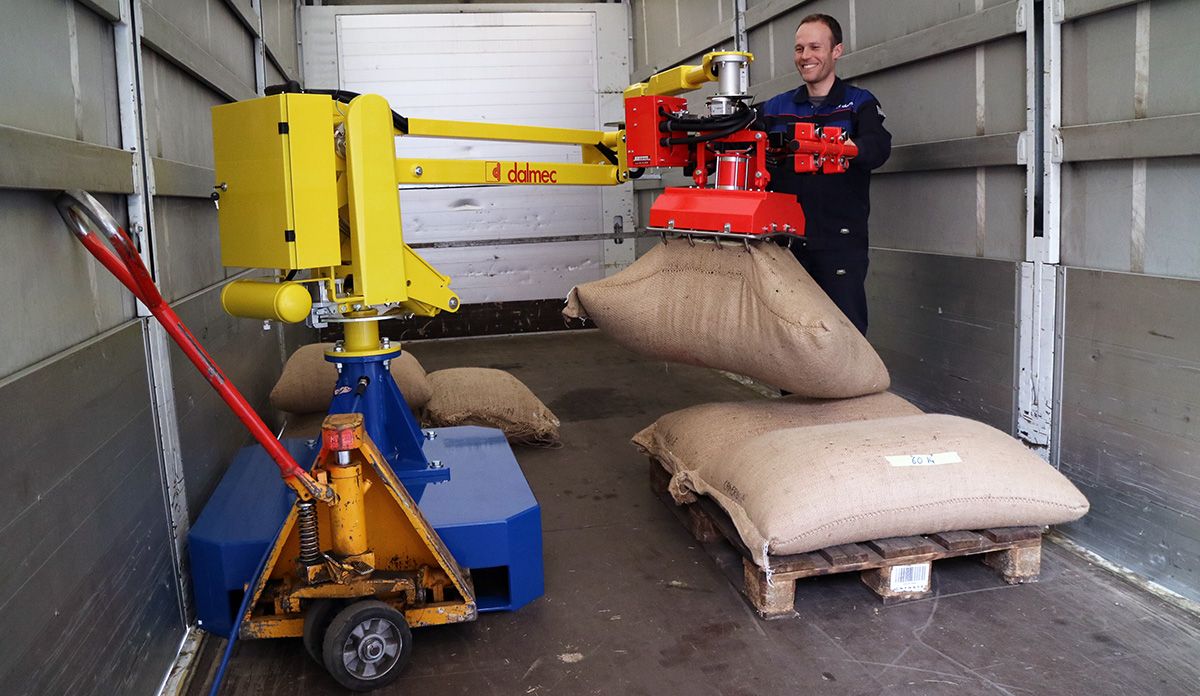

The Manipulator is equipped with a gripping system with special pneumatically actuated hooks and it is used for the gripping, handling and palletizing within the container of jute bags containing coffee.

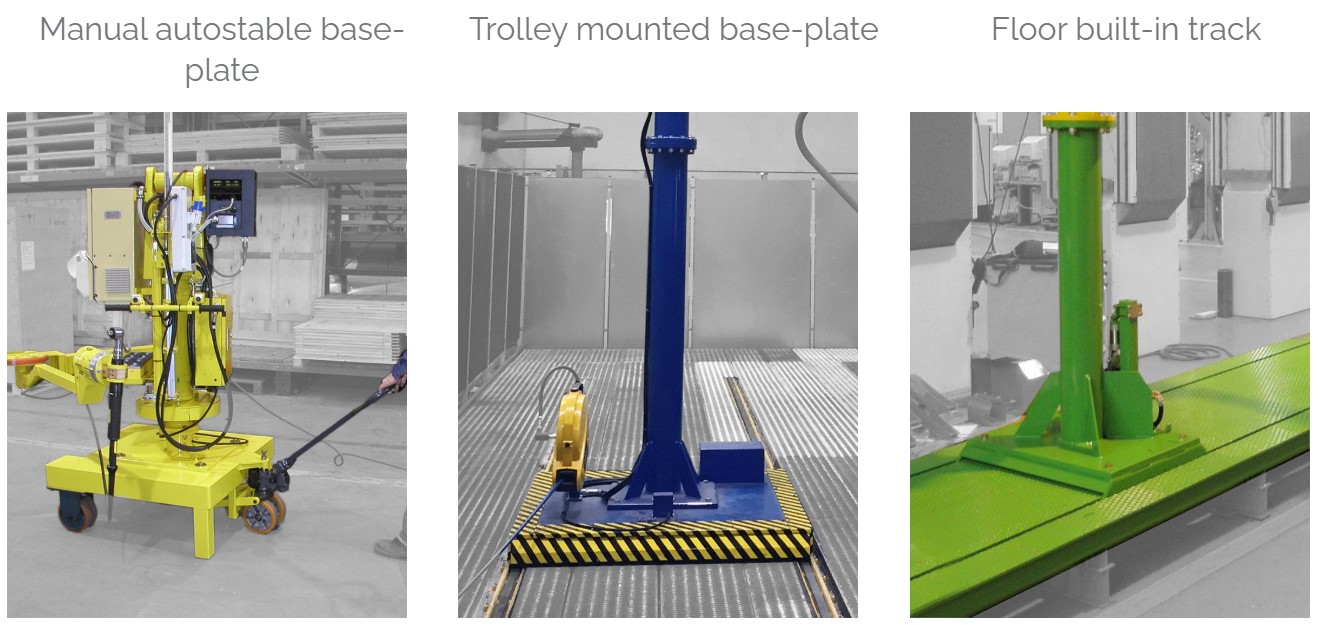

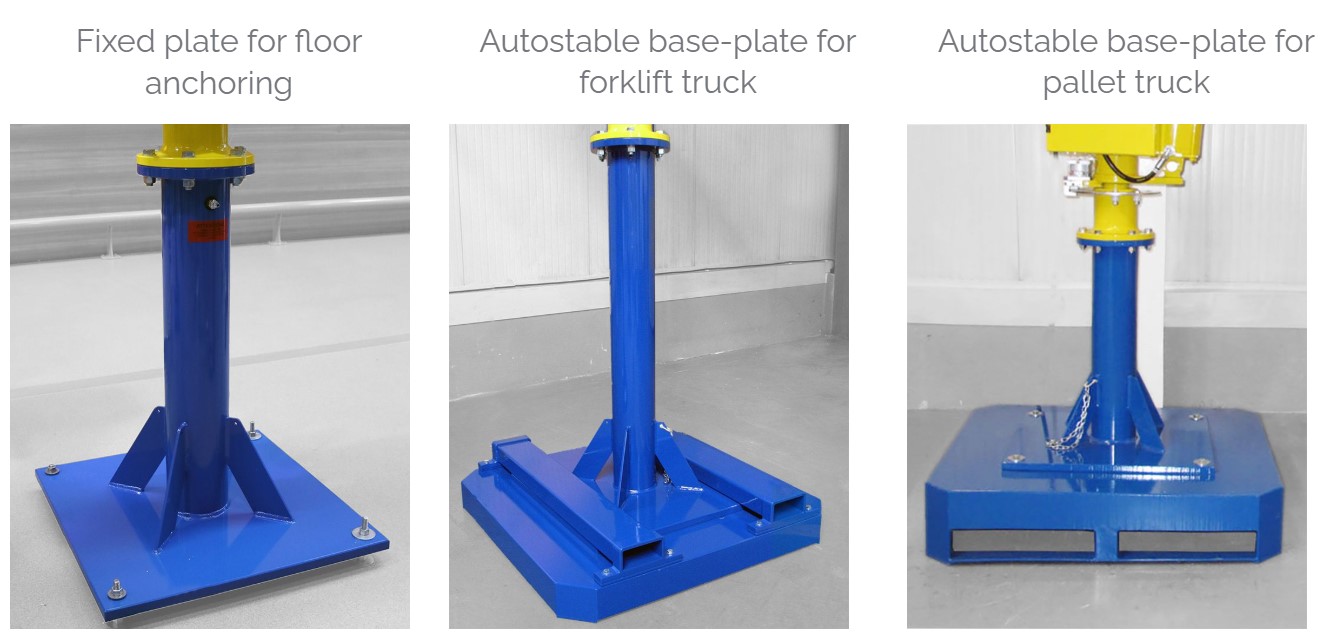

The portable baseplate for pallet truck allows the displacement of the Manipulator within the container.

Loading and unloading of goods within a container – Industrial Manipulators Dalmec for the handlings of goods within a container

Dalmec Manipulators for loading and unloading of goods within a container.

The Micropartner Manipulator is equipped with suitable toolings and allows the palletizing and depalletizing of goods in areas with reduced spaces.

Simple to use, they allow the operator to move loads of all sizes and materials with a weight from 5 Kg to 900 Kg throughout the working area quickly, accurately and safely.

Dalmec Manipulators are custom-built, with specially adapted design, dimensions and picking systems to suit the specific requirements of the users and the various environmental conditions available.

Lifting device with baseplate

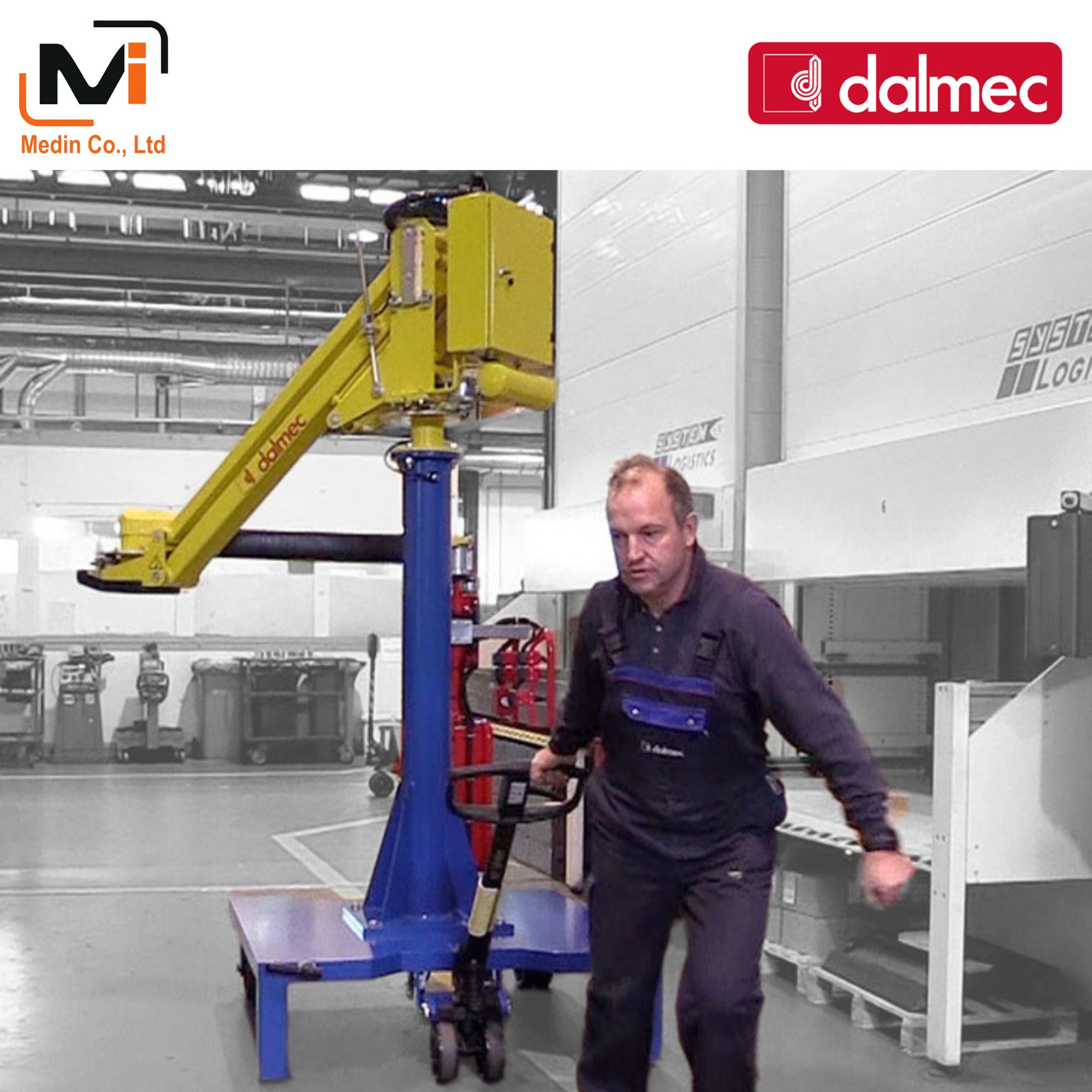

Lifting device Micropartner with portable baseplate

Lifting device Micropartner MIC mounted on a portable baseplate for pallet truck, equipped with a custom-built tooling for lifting wire reels.

The gripping system with interchangeable expanding mandrel allows to lift reels of different sizes, a special device prevents the sliding out of the reel during the inclination phase.

The multi-position controls allow the operator to position the reel at great heights.

With the portable baseplate, the manipulator can be moved in more workplaces.

The front wheels are hydraulically lowerable.

Lifting device Micropartner column version with portable baseplate – Handling systems for wire reels

Well-trained design staff are able to develop state-of-the-art equipment, which ensure the operators ergonomic use of the Manipulators.

Every project is developed according to the instructions given by the Directive 2006/42/EC on machinery and after a careful and a methodical analysis of the risks.

Pails

Manipulator with suction cups for drums – pails

MIC type Micropartner manipulator, low profile model, fitted with suction cups head (Venturi) for gripping and handling pails.

Characteristics: Max weight capacity 100 Kg – Max working radius 2800 mm – Vertical lift 1400 mm

Easy to use, Dalmec Manipulators are equipped with toolings to allow the operator to move pails of all kinds throughout the working area quickly, accurately and safely.

Dalmec Manipulators for pails are custom-built, with specially adapted design, dimensions and picking systems to suit the specific requirements of the users and the various environmental conditions available.

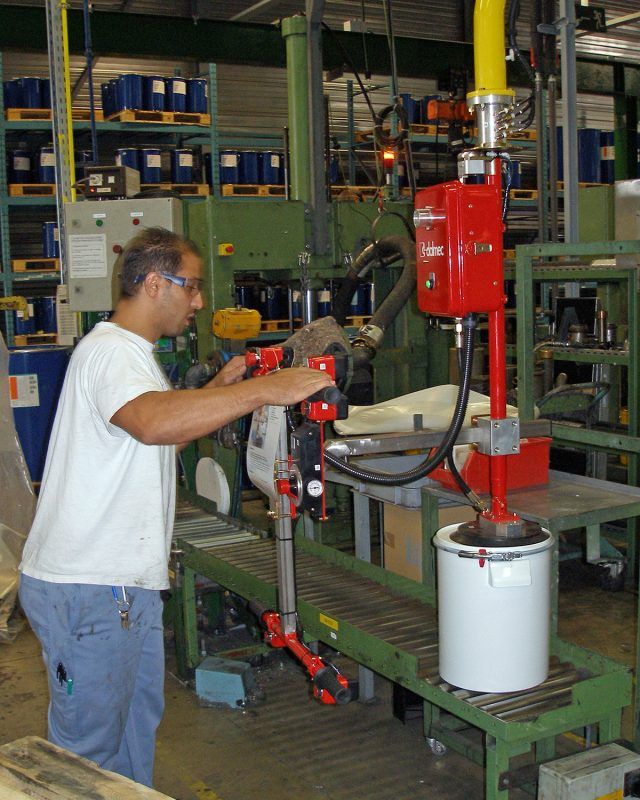

Manipulator equipped with venturi vacuum system for gripping and handling pails

Manipulator equipped with venturi vacuum system for gripping and handling pails

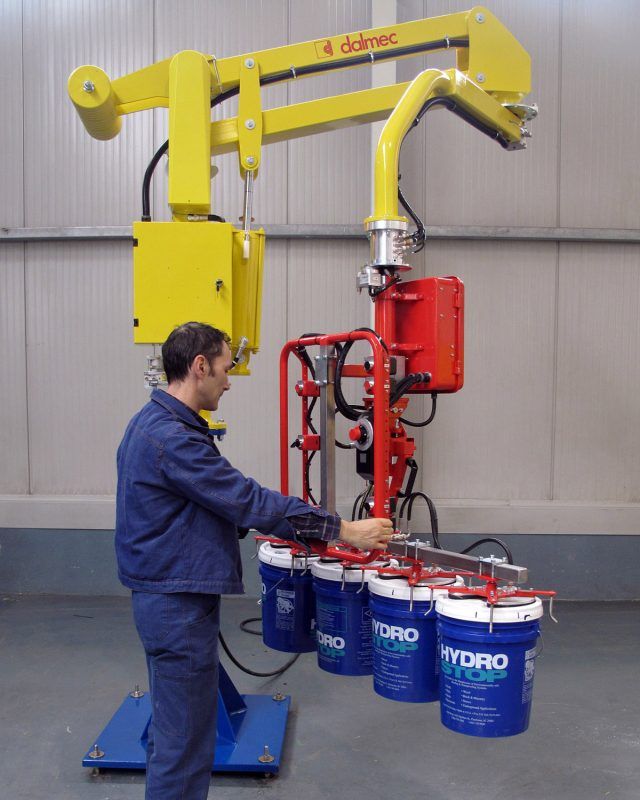

PEC type Partner manipulator, column mounted version, fitted with suction head (Venturi) for gripping and handling pails of different shapes and weights. Interchangeable grippers are available for handling different sizes of pails.

Each balancer is a guarantee, from the functioning and the safety point of view.

We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development.

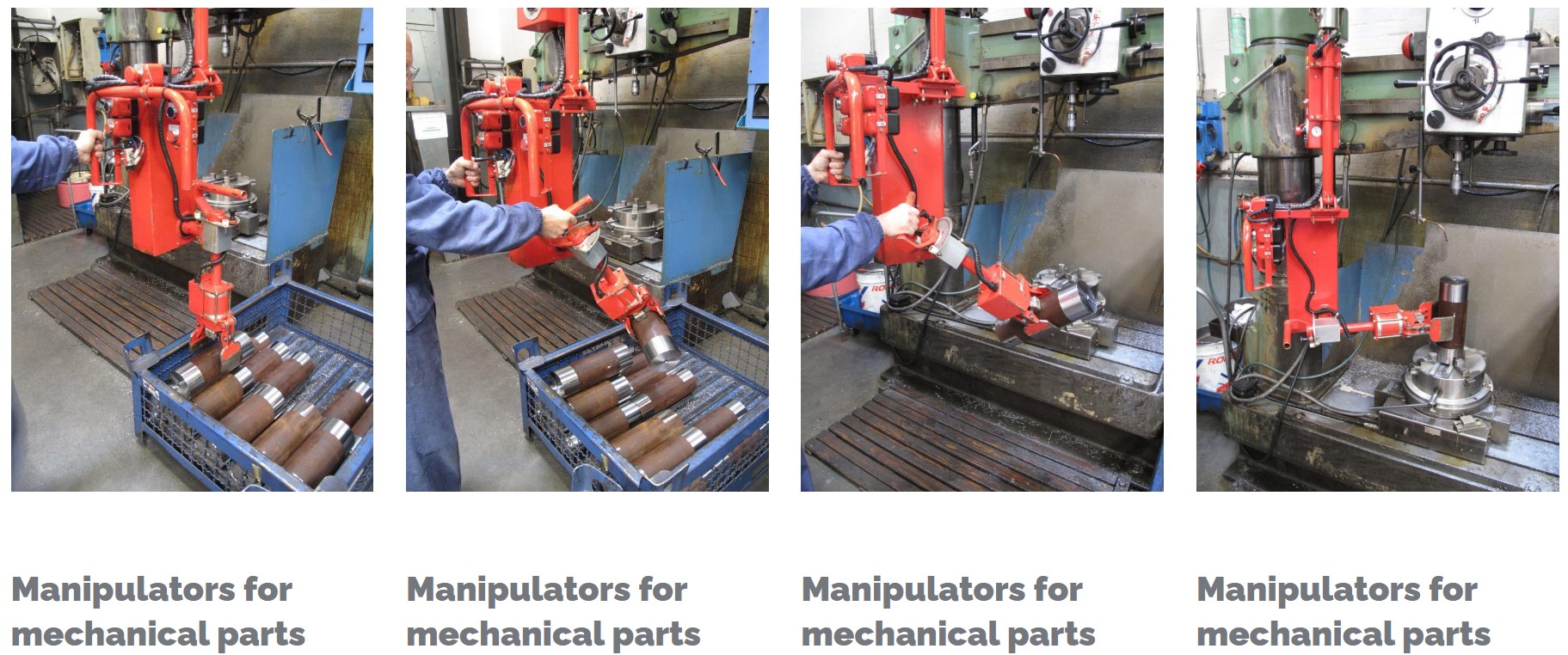

Round workpieces- mechanical parts

Manipulators for mechnical parts.

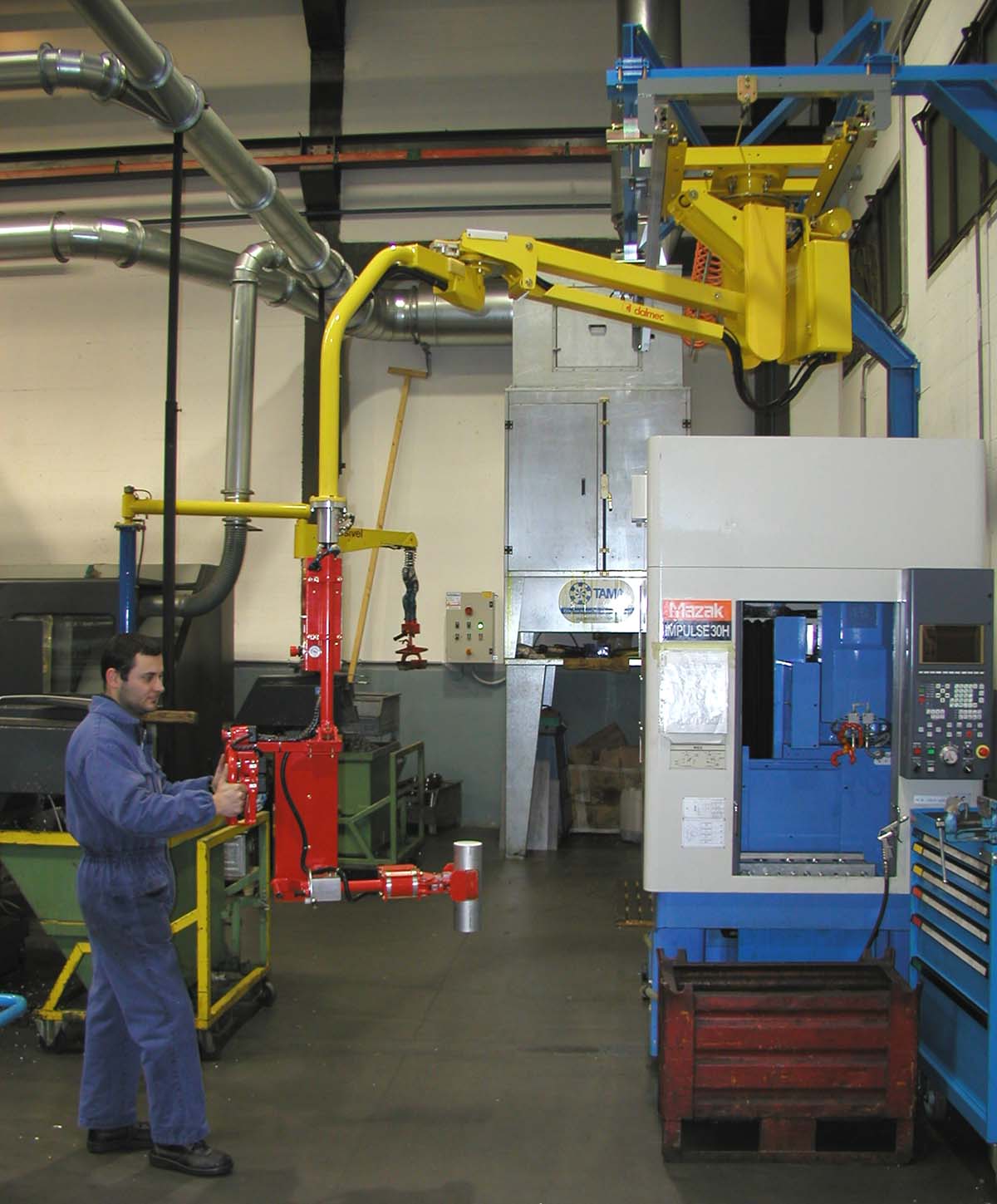

MIS type Micropartner manipulator, overhead trolley mounted version, equipped with a pneumatic gripper for picking and moving mechnical parts.

Dalmec is present in companies all over the world. Dalmec engineers and consultants have the necessary know-how to work with you during the whole process, from conception and design to the implementation of a new sector solution.

We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development.

Manipulators for mechnical parts.

Simple to use, they allow the operator to move products of all kinds throughout the working area quickly, accurately and safely.
Dalmec Manipulators are custom-built, with specially adapted design, dimensions and picking systems to suit the specific requirements of the users and the various environmental conditions available.
