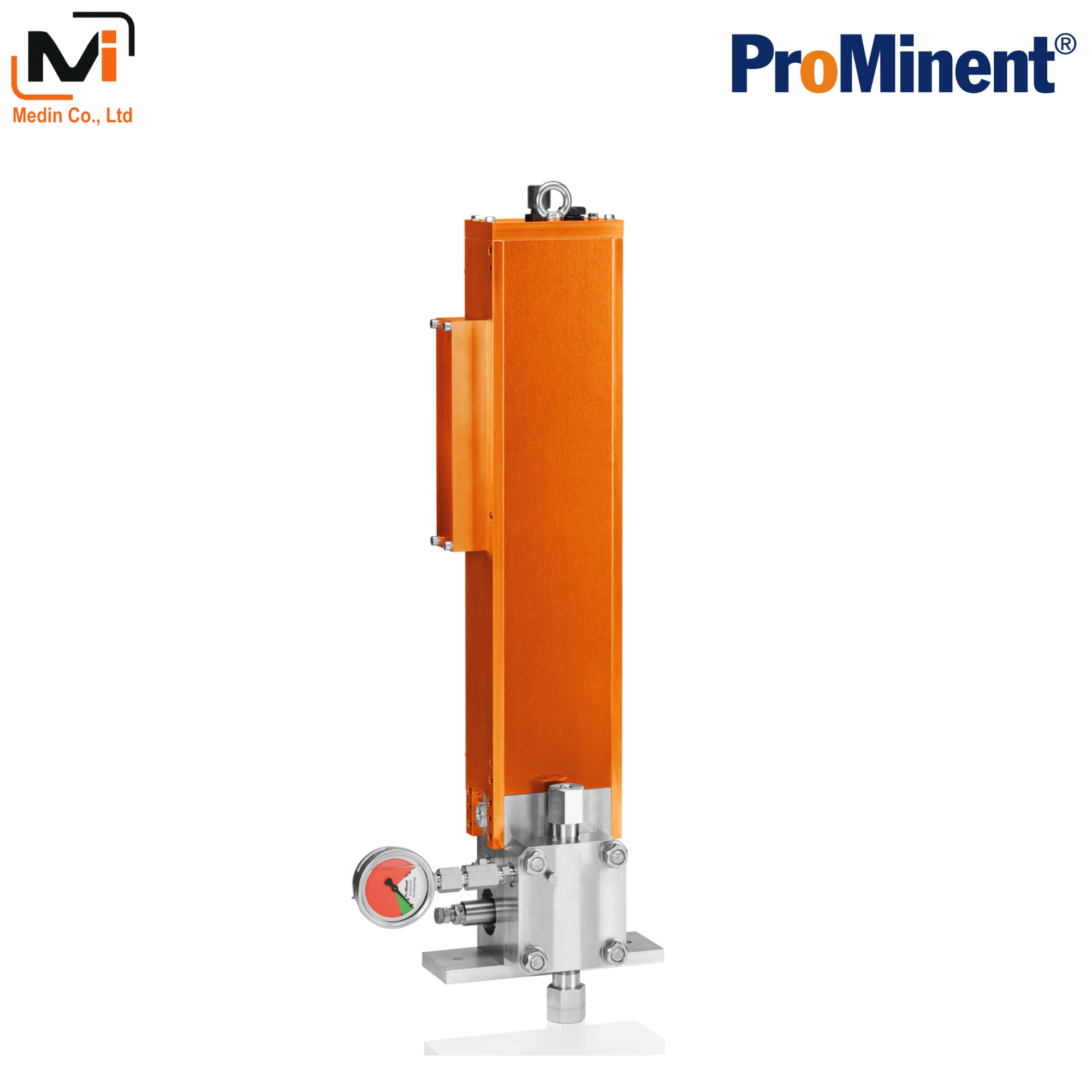

Hydraulic Diaphragm Metering Pump ORLITA Evolution mikro ProMinent
Capacity range 0.01 – 18 l/h, 250 – 10 bar
The ORLITA Evolution mikro is an innovative micro-metering pump for high pressures.
The hydraulic diaphragm metering pump is the first of its kind with an electronically regulated linear direct power end.
The power end has few mechanical functional elements and thus operates with virtually minimal maintenance.
Downloads
Hydraulic Diaphragm Metering Pump ORLITA Evolution mikro ProMinent
Capacity range 0.01 – 18 l/h, 250 – 10 bar
The ORLITA Evolution mikro is an innovative micro-metering pump for high pressures.
The hydraulic diaphragm metering pump is the first of its kind with an electronically regulated linear direct power end.
The power end has few mechanical functional elements and thus operates with virtually minimal maintenance.
For the smallest quantities at high pressures
With a capacity range of 0.01 – 18 l/h at pressures of up to 250 bar (400 bar design), the hydraulic diaphragm metering pump ORLITA Evolution mikro EMFa is ideally suited to ultra-precise micrometering in a very wide range of processes.
Typical applications include metering additives in processes in the oil, gas and petrochemical industries as well as the chemical industry.
It is also used in R&D and research for high-pressure laboratory use and pilot plants.
Other typical applications include filling processes.
The Evolution mikro variant with a metal diaphragm is also used in gas odourisation.
The ORLITA Evolution mikro is the first of its kind with an electronically regulated direct power end.
A metering usage range in a control ratio of 1:200 and the combination of individually independent metering profiles with 3-parameter control make optimum adaptation to the respective application possible.
Your benefits
Maximum process reliability:
- Precise micro-metering even at high pressures
- Hermetically sealed by PTFE multi-layer safety diaphragm or metal diaphragm
- Long service life thanks to its sturdy construction with low-wear, contact-less power end
- High positioning accuracy guarantees reproducibility of better than ±1 %
Excellent flexibility:
- Greatly extended control range of up to 1:200
- Universally controllable with electronically integrated overload protection
Field of application
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Additive metering in the oil, gas, chemical and petrochemical industry
- General filling processes in industry
- Additive metering in the pharmaceutical and food industry
- Universal lab applications
- Gas metering applications
Micro-Metering in the Laboratory
Even small metering pumps pack a punch in the laboratory
With ProMinent metering pumps, even tiny quantities of fluids are metered with reliable accuracy.
These small but high-performance pumps are compact, very economical with energy, and low-maintenance.
What happens behind closed laboratory doors is strictly secret.
But there’s no secret about the stringent precision provided by ProMinent: our pumps meter even the smallest quantities of fluid with high accuracy for a wide range of processes.
The ProMinent metering pumps mikro delta®, gamma and delta® are the small pumps that are big on performance.
Inhibitor Metering Offshore
For smooth oil production
Our ProMinent metering pumps keep the pipework clear 24 hours a day and protect against corrosion and defects. So the oil can keep flowing.
Reliable technology is essential on a drilling platform.
ProMinent Orlita metering pumps are perfectly suited to the tough environment.
Special materials and paintwork designed for offshore applications make them incredibly robust.
And they work intelligently: the inhibitor is fed via several metering heads and can be individually adapted to every single metering volume and pump pressure.
Corrosion in the pipework and feed units is prevented.
Technical Details
- Precise metering of 0.01 l/h up to a max. of 18 l/h at up to 250 bar (400 bar design)
- Stroke length: 0 – 60 mm
- Stroke rate: 0 – 200 strokes/min.
- Stroke length adjustment range of 0 – 100 %, stroke rate range of 0 – 100 %
- The metering reproducibility is better than ±1 % under defined conditions and with correct installation
- PTFE multi-layer safety diaphragm with integrated diaphragm rupture signalling system or metal diaphragm
- Large real volumetric flow control range: 1:200
- Materials in contact with fluids: Stainless steel 1.4404, special materials such as Hastelloy C, PVDF etc. available on request
- Universal control options – with 0-10 V / 4-20 mA analogue signal as standard – other variants, such as fieldbus or contact control, are possible
- Individual process-dependent metering profiles are possible
- Space-saving, easy-to-install solution
- Degree of protection IP 55
- Designs compliant with API 675 and ATEX
Technical data for ORLITA Evolution Mikro EMFa with aluminium housing
Performance data applies at ambient temperature of 40 °C, 50 °C and 55 °C and at 24 and 72 V DC. Performance data for ambient temperature of 60 °C is available on request.
Performance data for ambient temperature of 60°C is available on request.
Performance data for 320, 400 bar (piston diameter 3 mm) and for 64 bar (piston diameter 6 mm) is available on request.
Performance data for metal diaphragm variant is available on request.
Housing unpainted.
Technical data for ORLITA Evolution Mikro EMFa with stainless steel housing
Scope of delivery
- Pump
- 2 m cable
- Drive Control
