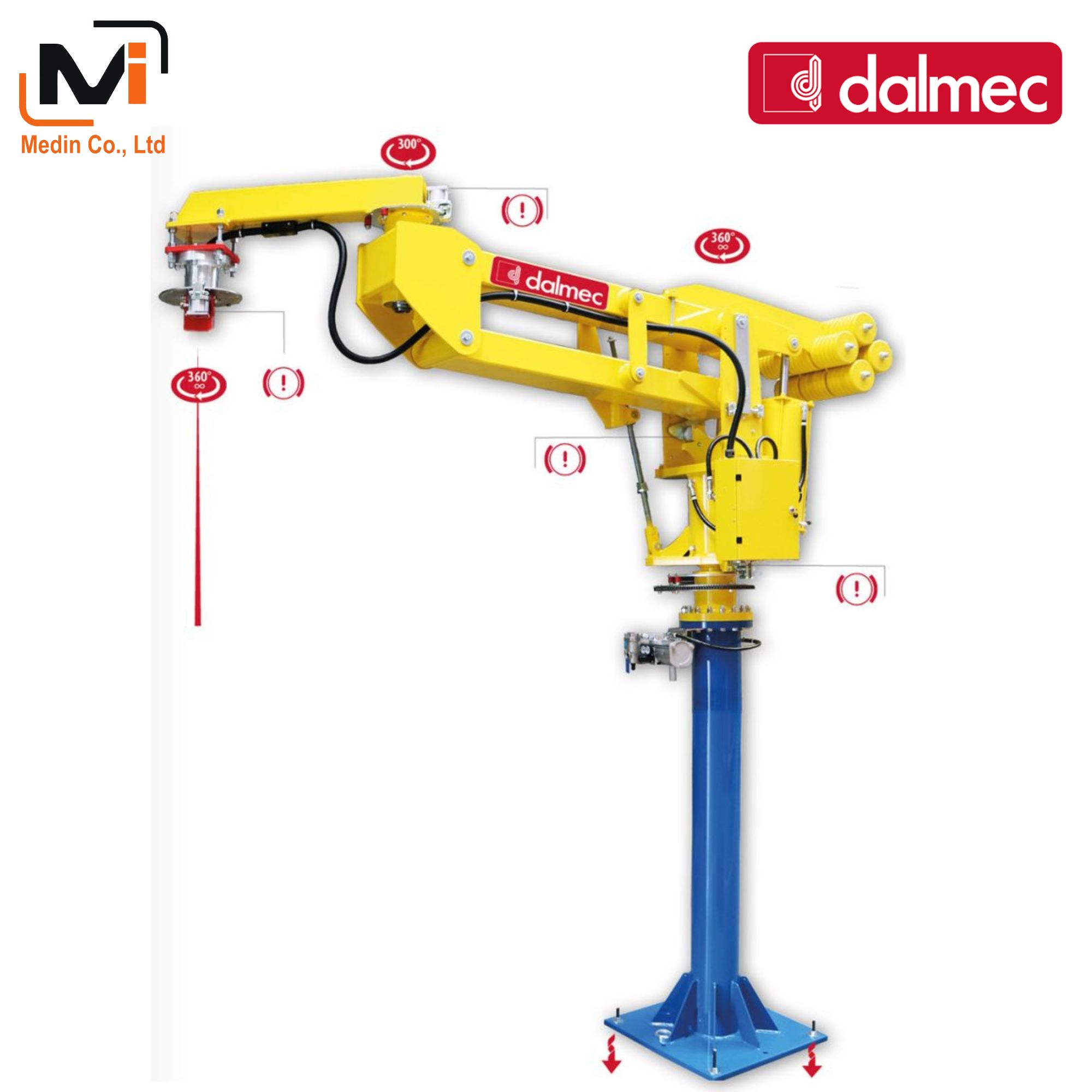

MANIPULATOR WITH ARTICULATED ARMS MEGAPARTNER MG
Pneumatic Manipulator MEGAPARTNER MG with articulated arms, equipped with special gripping tools, is suitable to handle heavy (max 1500 kg) and also off-set loads, in any direction, allowing the operator to work with the minimum effort in good ergonomic and safety conditions.
Anchor flange
The pneumatic manipulator fixed overhead version allows to eliminate any floor obstructions.
The flange of the Manipulator is supplied with holes for the anchoring with screws to a strong plate to the ceiling or to a shelf.
All movements are free and are obtained with minimum effort by the direct action of the operator on the gripping tooling or on the load.
Megapartner industrial manipulator, column-mounted version for handling satellite components.

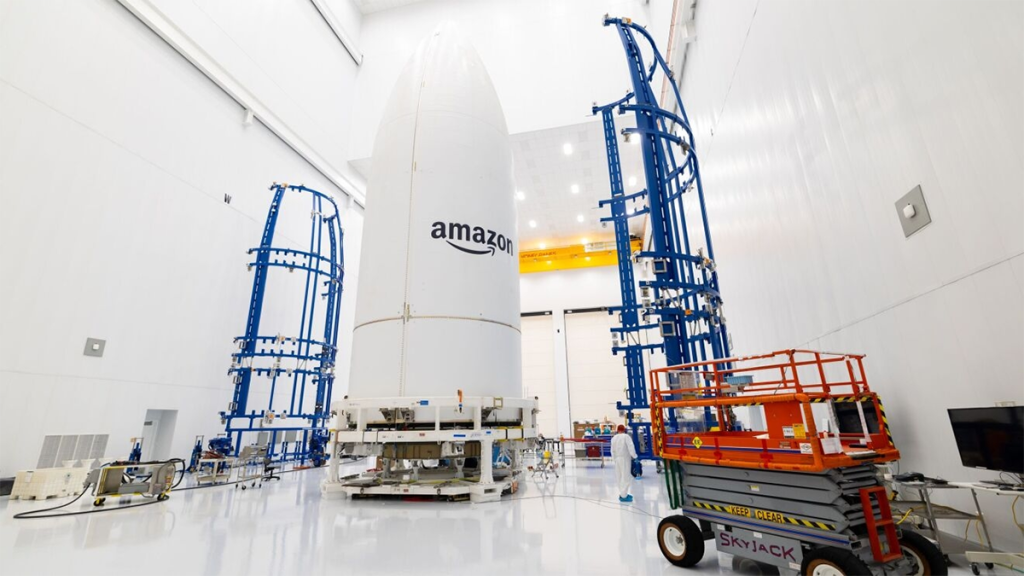

Satellites in orbit — and we played a part!

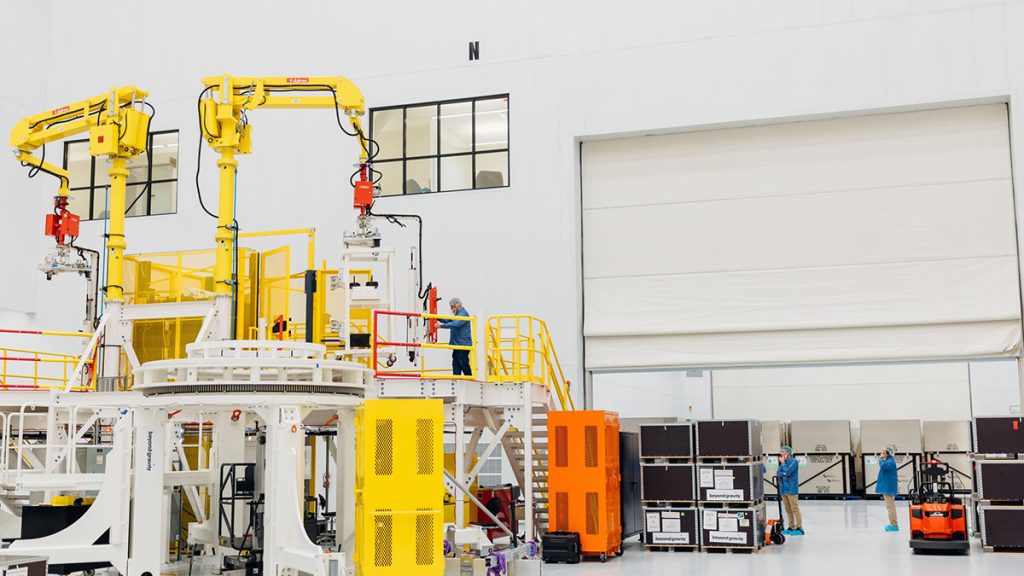

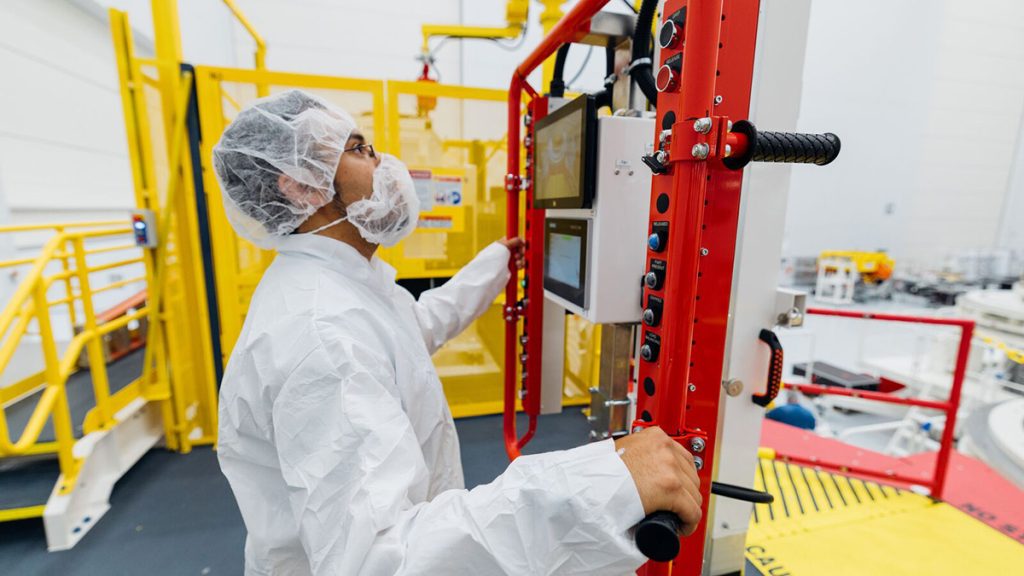

We’re proud to contribute to a global-scale project like Amazon’s Project Kuiper: our manipulators have been chosen to ensure safe, precise and reliable handling and assembly of satellite components at the Florida facility.

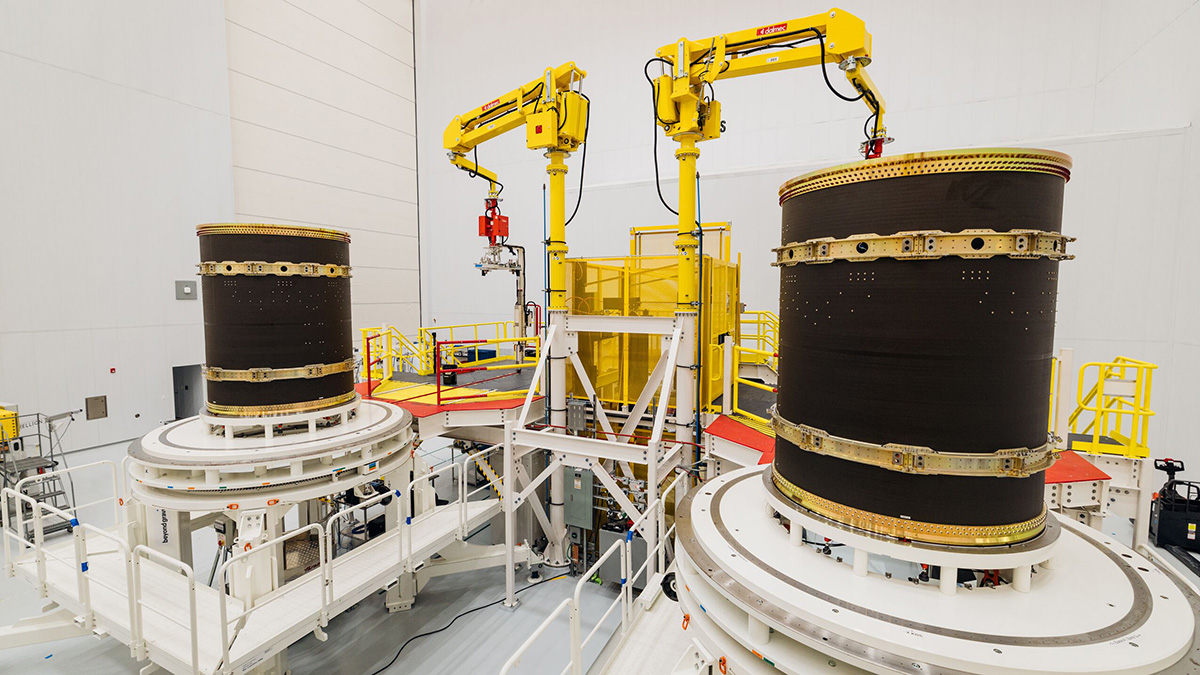

The manipulators supplied for Amazon’s Project Kuiper are Megapartner column version having a max radius of 3800mm and max weight capacity of 1000 kg.

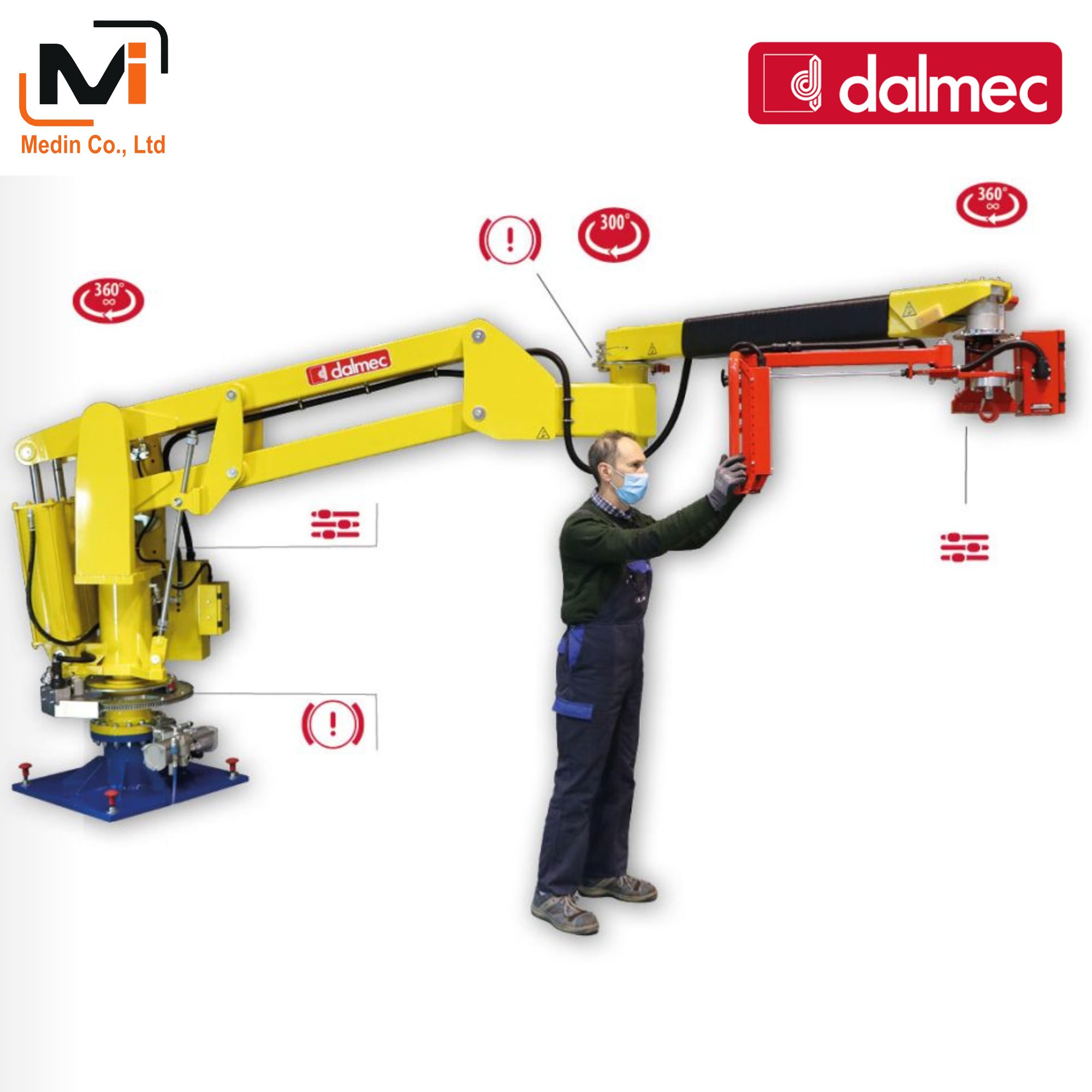

MEGAPARTNER MG, is a Manipulator with extremely high load capacity, is able to handle loads up to 1500 kg and reach working radii up to 5000 mm with loads of 650 kg, maintaining a good handiness and fluidity, assuring the operator to work with moderate efforts in good ergonomic conditions and with the utmost safety.

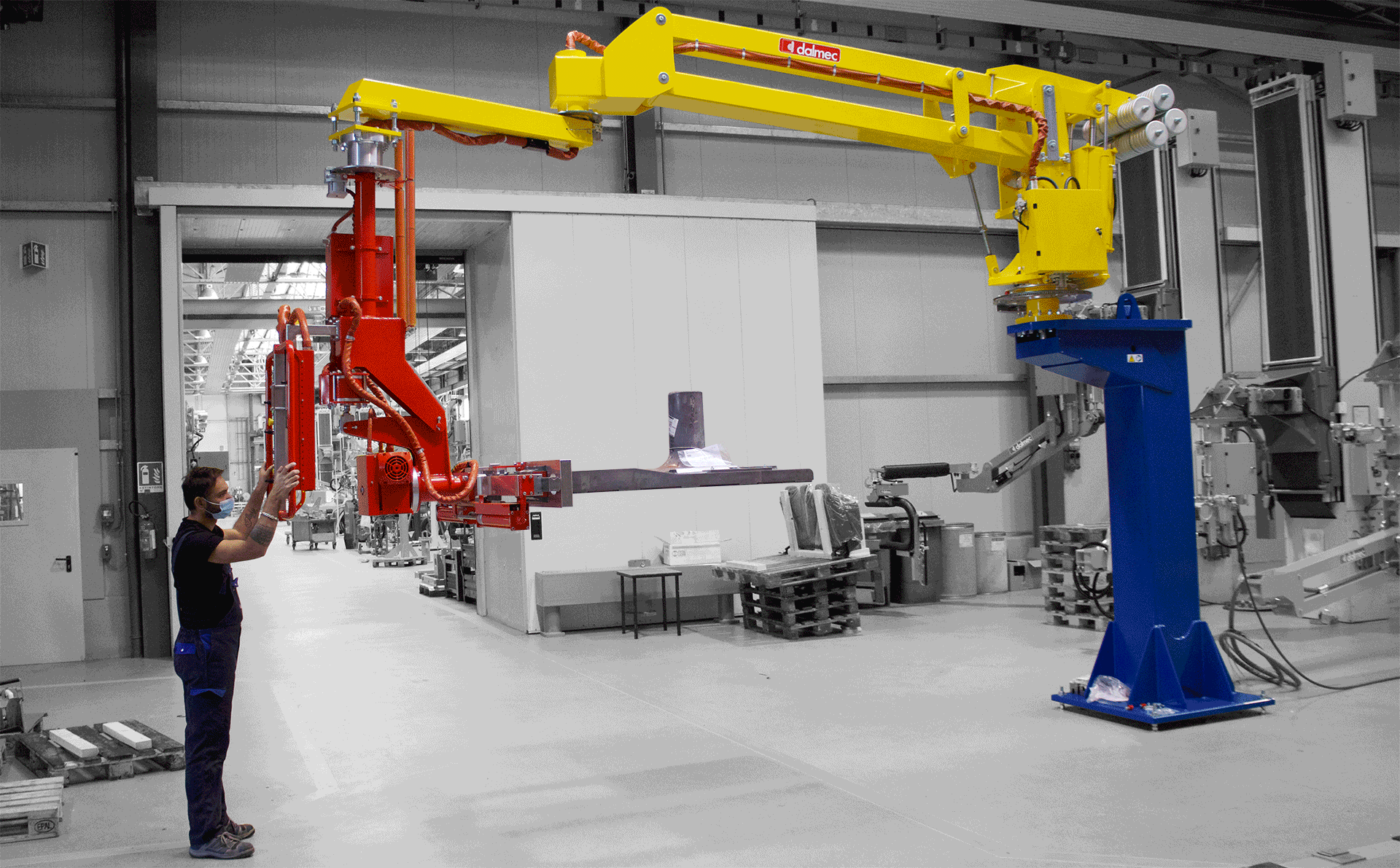

Zero balancer for metal molds

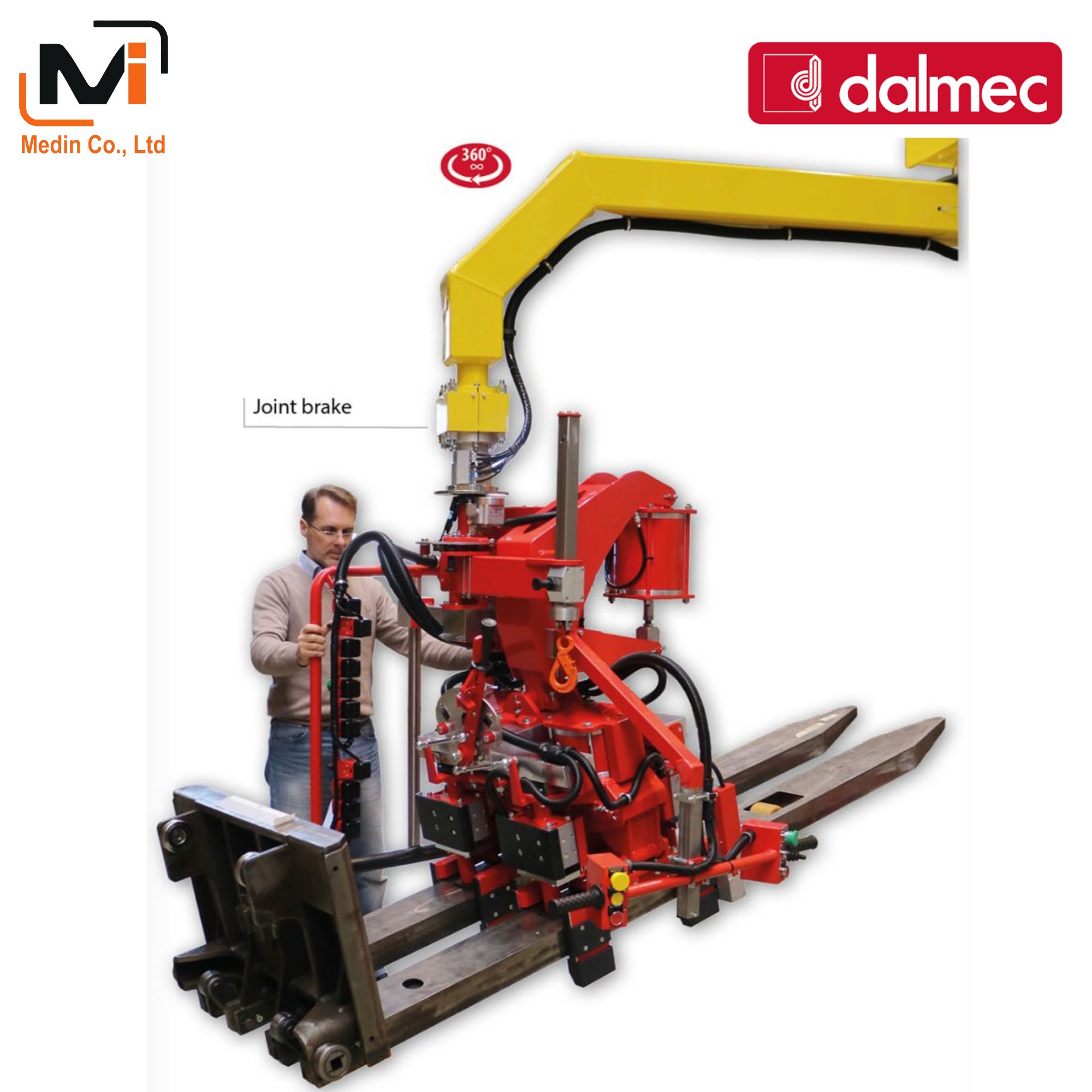

Manipulator Megapartner equipped with a specific pinch jaws gripping tool, connected to the terminal arm of the Manipulator, is able to to move aluminium molds having variable dimensions and weight equal to 300 kg.
The Manipulator is installed on a special offset column to satisfy the specific needs of the Customer.
The MEGAPARTNER MG, is a manipulator with extremely high load capacity. It had been designed to handle loads up to 1500 kg and reach working radii up to 5000 mm with loads of 650 kg, always maintaining a good handiness and fluidity and providing the operator moderate efforts in good ergonomic conditions and in complete safety.
All Dalmec technicians and specialists, thanks to their skills, will always be by your side starting from the design to the realization and installation of the new manipulator.
The pinch jaws system is ideal to move aluminium molds and using this manipulator is simple and it guarantees the maximum accuracy.
Moving heavy and bulky loads, as these aluminium molds, now becomes comfortable, fast, safe and even relaxing.
Each manipulator is made and adapted to the various specific needs of the final recipient, taking into account the different environmental circumstances.
Our manipulators fulfill all the requests contained in the legislation to guarantee the fundamental health and safety in the handling of loads within the world of work. As it is known, it is not allowed to lift weights over 25 kg for men and over 20 kg for women. Furthermore, Dalmec Manipulators avoid any risks and damages to the spinal column, eliminating the load on the operator.
All Dalmec products are designed and manufactured according to the UNI EN standards and in compliance with the CE – Atex directives.
Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development.

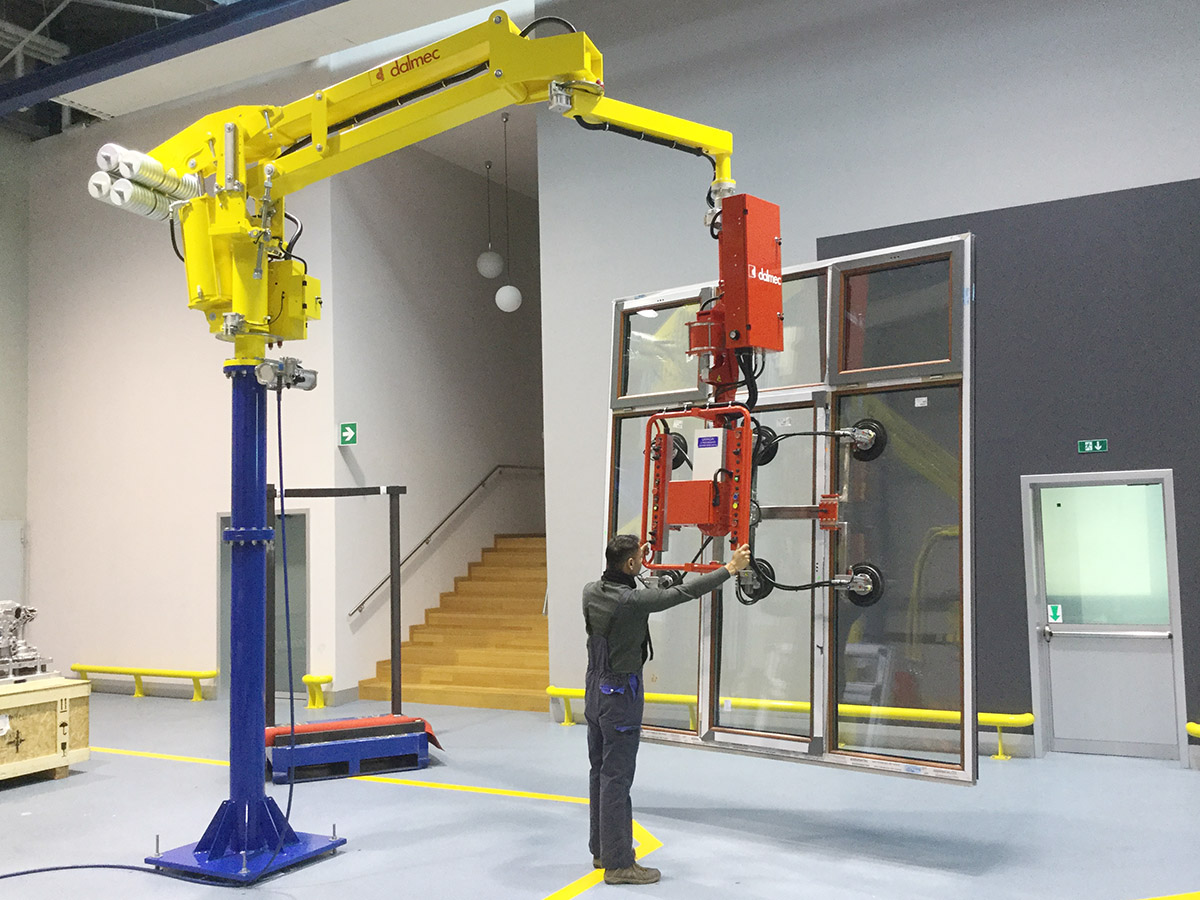

Door and window frames handling – Maxipartner Manipulator column mounted version.
Dalmec gripping system with a suction cups device applied to Maxipartner Manipulator for the lifting and handling of door and window frames.
The gripping device allows the picking of door and window frames having different forms and dimensions, positioned horizontally and after a pneumatic rotation of 180° their positioning in vertical in special containers.
Dalmec is present in companies all over the world. Dalmec engineers and consultants have the necessary know-how to work with you during the whole process, from conception and design to the implementation of a new sector solution.
We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development.

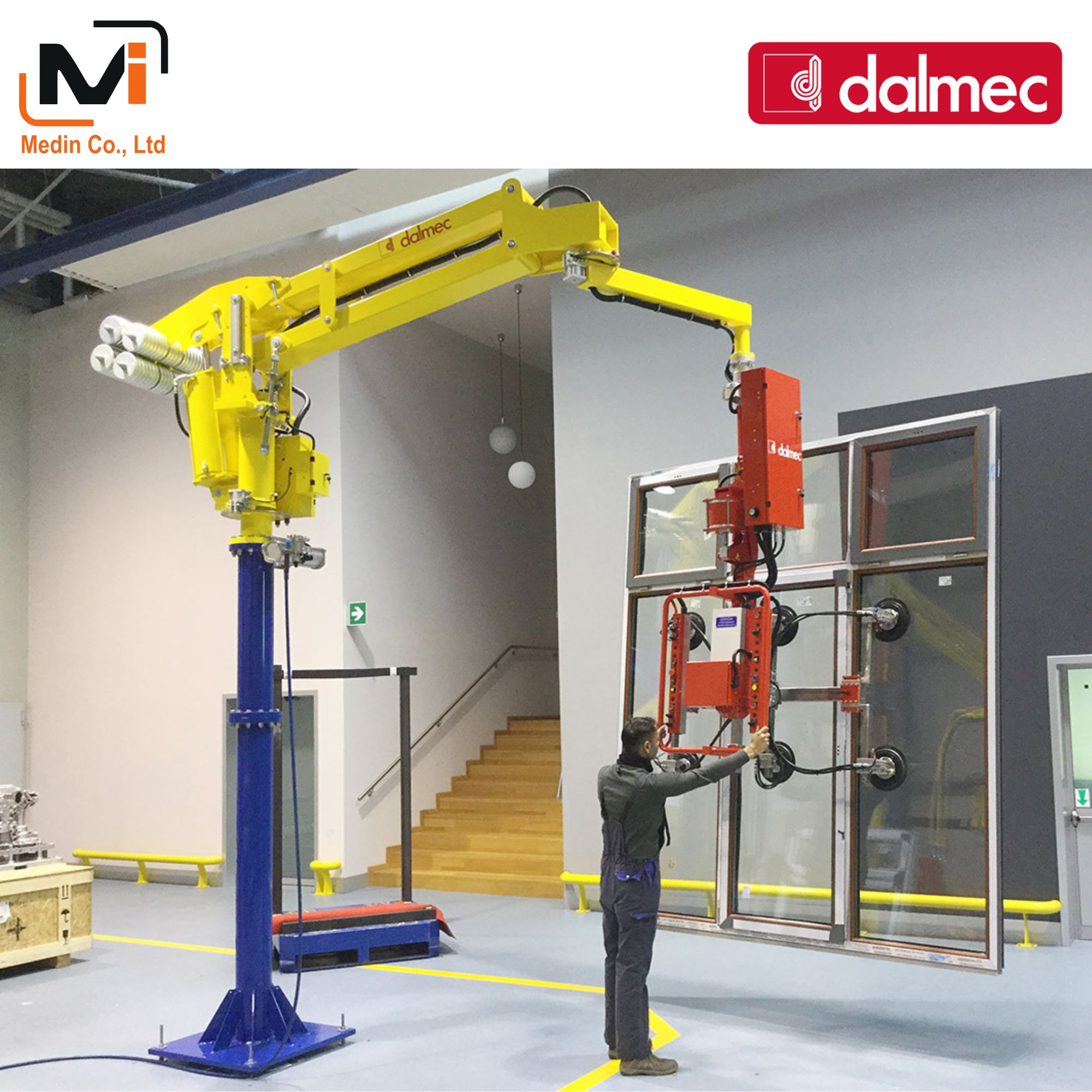

Door and window frames handling
Dalmec gripping system with a suction cups device applied to Maxipartner Manipulator, column mounted version, for the lifting, handling and positioning of door and window frames.
Simple to use, these lifters allow the operator to move loads of all kinds throughout the working area quickly, accurately and safely.
Our Manipulators are custom-built, with specially adapted design, dimensions and picking systems to suit the specific requirements of the users and the various environmental conditions available.
Zero balancers for metal cabinets maximum weight capacity 1500 kg.
The MEGAPARTNER MG, is a manipulator with extremely high load capacity. It had been designed to handle loads up to 1500 Kg and reach working radii up to 5000 mm with loads of 650 kg, always maintaining a good handiness and fluidity and providing the operator moderate efforts in good ergonomic conditions and in complete safety.
In this specific case, the Megapartner is equipped with an adjustable pin gripping device suitable for handling different types of metal cabinets which, during the various processing operations, will reach a weight of 1250 kg.
Main features:
– Max. weight capacity 1500 Kg with a radius of 2500 mm
– Max. weight capacity 650 kg with a radius of 5000 mm
There are hundreds of Dalmec zero balancers operating in the leading industries all over the world used for handling loads. Our pneumatic zero balancers are equipped with different types of gripping devices to allow to lift, rotate, tilt artifacts of all sizes and materials from 5 kg to 1500 kg.
Zero balancers for metal cabinets

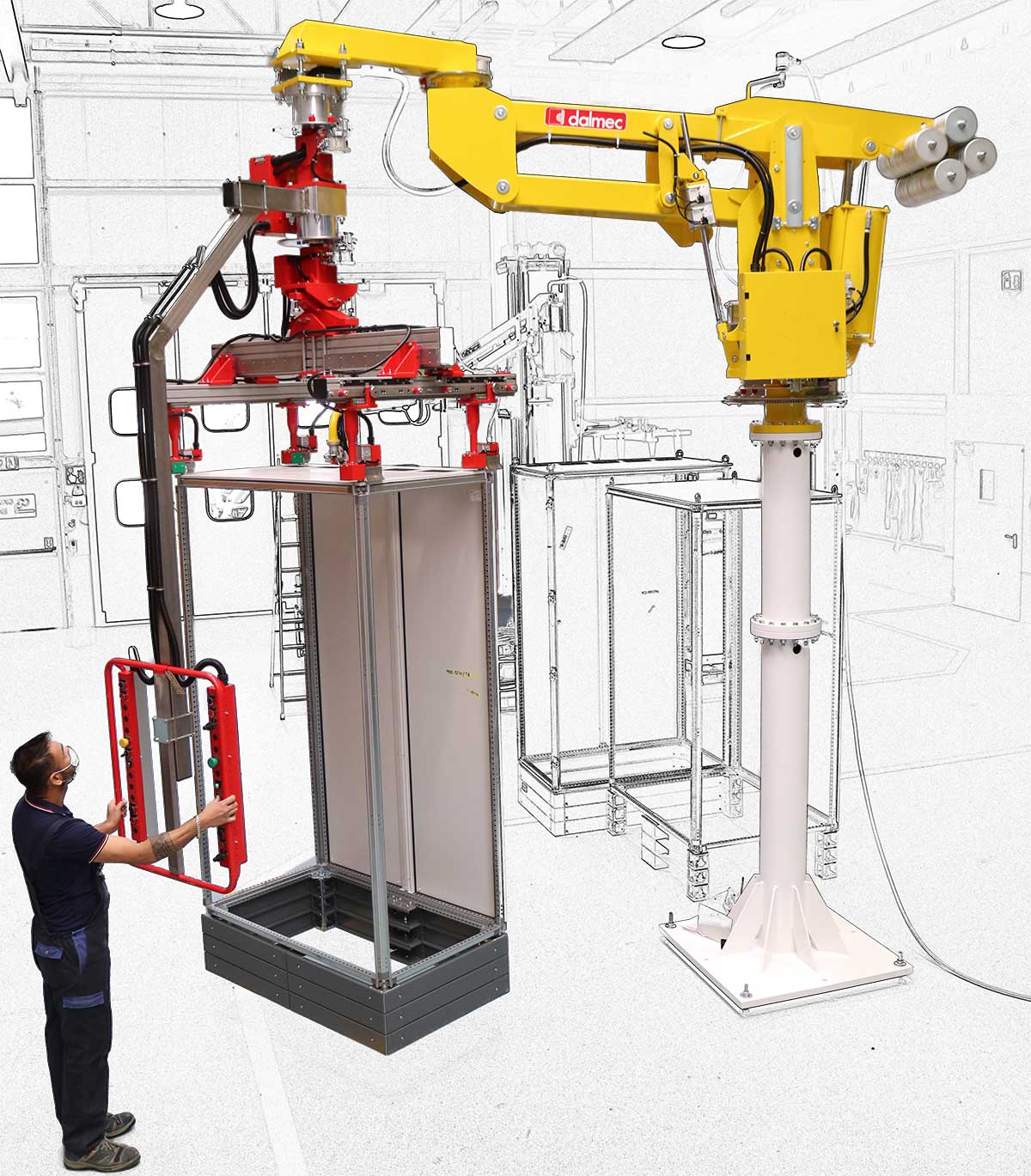

Megapartner manipulator, column version, equipped with pin gripping device for handling metal cabinets.
The position of the gripping pins is manually adjustable to allow the gripping of cabinets of different sizes.
