Giác hút chân không đa năng Vmeca Magic Gripper MC20D
Description
The Magic Grippers are a general purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard. The ultra-lightweight and compact design allows for easy mounting options. Easy to use, and no tools required when replacing spare parts. A variety of sealing lip options allow for the Magic Gripper to grasp all different kinds of objects.
Build an Order #
1. Basic Model
| Symbol | Description |
| MC20 | Magic gripper, MC20 series, Mini 2-stage cartridge |
2. Body Type
| Symbol | Description |
| D | Dual vacuum cartridges |
| SD | Dual vacuum cartridges with Two-fold silencer |
▲ Two-fold silencer for Magic Grippers
3. Mounting Type
| Symbol | Description |
| X | No mounting bracket |
| M | Direct mount |
| P | Aluminum profile mount |
4. Sealing Material
| Symbol | Description |
| N | NBR |
| E | EPDM |
| V | Viton |
5. Top Bellows
| Symbol | Description |
| 1B40 | 40 mm, 1-fold top bellows ☛ Only with MC10, MC20, MC25 |
| 1B60 | 60 mm, 1-fold top bellows ☛ Only with MC20, MC25 |
| 2B40 | 40 mm, 2-fold top bellows ☛ Only with MC10, MC20, MC25 |
| 2B60 | 60 mm, 2-fold top bellows ☛ Only with MC20, MC25 |
6. Vacuum Filter
| Symbol | Description |
| X | No vacuum filter |
| F | Vacuum filter, 200-mesh |
7. Suction Lip
1) X-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| X45 | X-type Lip, 45 mm | O | |
| X55 | X-type Lip, 55 mm | O | |
| X65 | X-type Lip, 65 mm | O | |
| X75 | X-type Lip, 75 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| A | A-type |
| B | B-type |
| C | C-type |
| D | D-type |
2) U-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| U45 | U-type Lip, 45 mm | O | |
| U55 | U-type Lip, 55 mm | O | |
| U65 | U-type Lip, 65 mm | O | |
| U75 | U-type Lip, 75 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| B | B-type |
| C | C-type |
| D | D-type |
3) P-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| P48 | P-type Lip, 48 mm | O | |
| P60 | P-type Lip, 60 mm | O | |
| P72 | P-type Lip, 72 mm | O | |
| P85 | P-type Lip, 85 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| D | D-type |
4) F-type Suction Lip
| 1) Lip Size | Bellows Size | |
| Symbol | Description | Ø40 |
| F45 | F-type Lip, 45 mm | O |
| F55 | F-type Lip, 55 mm | O |
| 2) Lip Material | ||
| Symbol | Description | Color |
| PU | Polyurethane, 60° Hardness | Translucent Orange |
| 3) Stopper | |
| Symbol | Description |
| B | B-type |
| C | C-type |
| D | D-type |
5) DD-type Suction Lip (Double Lips)
| 1) Lip Size | Bellows Size | |
| Symbol | Description | Ø40 |
| DD4030 | DD-type Lip, Double lip, 30 mm & 41 mm | O |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| D | D-type |
6) S-type Suction Lip (Sponge Foam)
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| S50 | S-type Lip, 50 mm | O | |
| S60 | S-type Lip, 60 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| E | EPDM, 15° Hardness | Black |
| 3) Stopper | |
| Symbol | Description |
| F | F-type |
7) MU-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| MU45 | MU-type Lip, 45 mm | O | |
| MU55 | MU-type Lip, 55 mm | O | |
| MU65 | MU-type Lip, 65 mm | O | |
| MU75 | MU-type Lip, 75 mm | O | |
| MU80 | MU-type Lip, 80 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| G | G-type |
8) MF-type Suction Lip
| 1) Lip Size | Bellows Size | ||
| Symbol | Description | Ø40 | Ø60 |
| MF45 | MF-type Lip, 45 mm | O | |
| MF55 | MF-type Lip, 55 mm | O | |
| MF65 | MF-type Lip, 65 mm | O | |
| MF75 | MF-type Lip, 75 mm | O | |
| MF80 | MF-type Lip, 80 mm | O | |
| 2) Lip Material | ||
| Symbol | Description | Color |
| N6 | NBR (Nitrile), 60° Hardness | Blue |
| S3 | Silicone, 30° Hardness | Translucent White |
| S5 | Silicone, 50° Hardness | Red |
| W3 | White Silicone, 30° Hardness | Translucent White |
| W5 | White Silicone, 50° Hardness | Translucent White |
| W3(FDA) | White Silicone, 30° Hardness (FDA) | Translucent White |
| W5(FDA) | White Silicone, 50° Hardness (FDA) | Translucent White |
| U6 | Urethane, 60° Hardness | Dark Grey |
| 3) Stopper | |
| Symbol | Description |
| G | G-type |
Specifications
1. General Specifications
| Max Vacuum Level | -92 kPa |
| Open Vacuum Flow | 42.2 Nl/min |
| Feed Pressure | 2.2 ~ 4 bar (Max 7 bar) |
| Air Consumption | 32 Nl/min @ 4 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight | 25.5 g |
2. Vacuum Flow
Vacuum Level (-kPa)Vacuum Flow (Nl/min)MC20A, B, C series Vacuum FlowMC20A, B, C series Vacuum Flow40.540.533.633.623.723.716.516.513.813.811.911.97.87.83.83.82.32.342.242.240.240.226.526.519.319.314.314.311.611.68.88.85.85.82.62.636.836.8272717.817.816.816.812.712.77.67.6223.3-bar4-bar2.2-bar010203040506070809001020304050
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 92 | 3.3 | 40.5 | 33.6 | 23.7 | 16.5 | 13.8 | 11.9 | 7.8 | 3.8 | 2.3 | – |
| 91 | 4 | 42.2 | 40.2 | 26.5 | 19.3 | 14.3 | 11.6 | 8.8 | 5.8 | 2.6 | – |
| 63 | 2.2 | 36.8 | 27 | 17.8 | 16.8 | 12.7 | 7.6 | 2.0 | – | – | – |
3. Evacuation Time
1) MC20A series with N1B40X
Vacuum Level (-kPa)Evacuation Time (sec/liter)MC20A, B, C series w/N1B40X Evacuation TimeMC20A, B, C series w/N1B40X Evacuation Time0.070.070.090.090.10.10.120.120.140.140.160.160.20.20.260.260.070.070.080.080.10.10.110.110.130.130.150.150.190.190.250.250.070.070.090.090.110.110.130.130.150.150.20.23.3-bar4-bar2.2-bar1020304050607080900.050.10.150.20.250.3
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.3 | 27 | 0.07 | 0.09 | 0.10 | 0.12 | 0.14 | 0.16 | 0.2 | 0.26 | – |
| 4 | 32 | 0.07 | 0.08 | 0.10 | 0.11 | 0.13 | 0.15 | 0.19 | 0.25 | – |
| 2.2 | 21 | 0.07 | 0.09 | 0.11 | 0.13 | 0.15 | 0.20 | – | – | – |
2) MC20A series with N2B40X
Vacuum Level (-kPa)Evacuation Time (sec/liter)MC20A, B, C series w/N2B40X Evacuation TimeMC20A, B, C series w/N2B40X Evacuation Time0.070.070.090.090.120.120.130.130.150.150.180.180.240.240.330.330.070.070.090.090.110.110.120.120.150.150.180.180.220.220.290.290.080.080.10.10.130.130.150.150.180.180.230.233.3-bar4-bar2.2-bar1020304050607080900.10.20.300.4
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.3 | 27 | 0.07 | 0.09 | 0.12 | 0.13 | 0.15 | 0.18 | 0.24 | 0.33 | – |
| 4 | 32 | 0.07 | 0.09 | 0.11 | 0.12 | 0.15 | 0.18 | 0.22 | 0.29 | – |
| 2.2 | 21 | 0.08 | 0.10 | 0.13 | 0.15 | 0.18 | 0.23 | – | – | – |
3) MC20A series with N1B60X
Vacuum Level (-kPa)Evacuation Time (sec/liter)MC20A, B, C series w/N1B60X Evacuation TimeMC20A, B, C series w/N1B60X Evacuation Time0.090.090.120.120.150.150.170.170.20.20.240.240.290.290.420.420.090.090.120.120.140.140.160.160.190.190.220.220.280.280.380.380.10.10.160.160.180.180.20.20.230.230.280.283.3-bar4-bar2.2-bar10203040506070809000.10.20.30.40.5
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.3 | 27 | 0.09 | 0.12 | 0.15 | 0.17 | 0.20 | 0.24 | 0.29 | 0.42 | – |
| 4 | 32 | 0.09 | 0.12 | 0.14 | 0.16 | 0.19 | 0.22 | 0.28 | 0.38 | – |
| 2.2 | 21 | 0.10 | 0.16 | 0.18 | 0.20 | 0.23 | 0.28 | – | – | – |
4) MC20A series with N2B60X
Vacuum Level (-kPa)Evacuation Time (sec/liter)MC20A, B, C series w/N2B60X Evacuation TimeMC20A, B, C series w/N2B60X Evacuation Time0.110.110.150.150.170.170.190.190.230.230.270.270.330.330.460.460.10.10.130.130.160.160.180.180.220.220.260.260.310.310.430.430.120.120.170.170.20.20.230.230.270.270.360.363.3-bar4-bar2.2-bar10203040506070809000.10.20.30.40.5
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.3 | 27 | 0.11 | 0.15 | 0.17 | 0.19 | 0.23 | 0.27 | 0.33 | 0.46 | – |
| 4 | 32 | 0.10 | 0.13 | 0.16 | 0.18 | 0.22 | 0.26 | 0.31 | 0.43 | – |
| 2.2 | 21 | 0.12 | 0.17 | 0.20 | 0.23 | 0.27 | 0.36 | – | – | – |
Dimensions

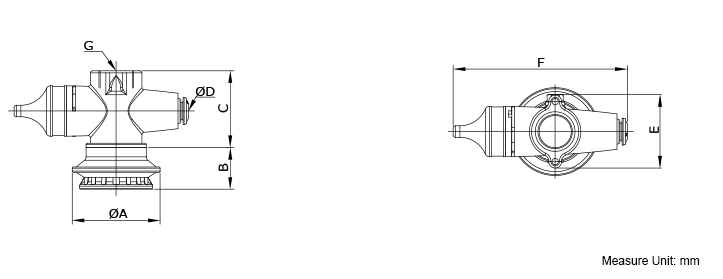

| MC20A: Without mounting option |
| Model | ØA | B | C | ØD | E | F | G |
| MC20AX-N1B40F | 41 | 21.4 | 35.8 | 6 | 34.3 | 81.2 | M16xP1.0 / DP 8 |
| MC20AX-N1B60F | 56 | 30.4 | 35.8 | 6 | 34.3 | 81.2 | M16xP1.0 / DP 8 |
| MC20AX-N2B40F | 41 | 31.4 | 35.8 | 6 | 34.3 | 81.2 | M16xP1.0 / DP 8 |
| MC20AX-N2B60F | 56 | 44.8 | 35.8 | 6 | 34.3 | 81.2 | M16xP1.0 / DP 8 |
| MC20A: Direct mounting option |
| Model | ØA | B | C | ØD | E | F | G | H |
| MC20AM-N1B40F | 41 | 21.4 | 35.8 | 6 | 16 | 34.3 | 81.2 | M8xP1.25 |
| MC20AM-N1B60F | 56 | 30.4 | 35.8 | 6 | 16 | 34.3 | 81.2 | M8xP1.25 |
| MC20AM-N2B40F | 41 | 31.4 | 35.8 | 6 | 16 | 34.3 | 81.2 | M8xP1.25 |
| MC20AM-N2B60F | 56 | 44.8 | 35.8 | 6 | 16 | 34.3 | 81.2 | M8xP1.25 |
| MC20A: Aluminum profile mounting option |
| Model | ØA | B | C | ØD | E | F | G | H |
| MC20AP-N1B40F | 41 | 21.4 | 35.8 | 6 | 27 | 34.3 | 81.2 | M8xP1.25 |
| MC20AP-N1B60F | 56 | 30.4 | 35.8 | 6 | 27 | 34.3 | 81.2 | M8xP1.25 |
| MC20AP-N2B40F | 41 | 31.4 | 35.8 | 6 | 27 | 34.3 | 81.2 | M8xP1.25 |
| MC20AP-N2B60F | 56 | 44.8 | 35.8 | 6 | 27 | 34.3 | 81.2 | M8xP1.25 |
Liên Hệ Medin Co., Ltd
- Công ty TNHH Mễ Đình được thành lập từ năm 2006.
- Từ đó đến nay Medin luôn là Công ty dẫn đầu về lĩnh vực Tự Động Hoá ở thị trường trong và ngoài nước với hơn 1,000 khách hàng, cùng với rất nhiều dự án lớn nhỏ cho các nhà máy sản xuất.
- Chúng tôi cung cấp cho khách hàng những giải phát tuyệt vời nhất trong việc ứng dụng Tự Động Hoá vào sản xuất
- Phương châm: “Giải pháp của chúng tôi, lợi ích của khách hàng”
- Giá trị cốt lõi: “Uy tín là sự tồn tại của chúng tôi”
- Hơn 20 năm kinh nghiệm, chúng tôi có đội ngũ kỹ sư nhiều kinh nghiệm, có khả năng tư vấn, đưa ra giải pháp có lợi nhất cho khách hàng.
- Sự tin tưởng và đồng hành của khách hàng là động lực để Medin phát triển cao hơn và xa hơn.
👉 Công ty 𝐌𝐞𝐝𝐢𝐧 hỗ trợ:
𝑇𝑢̛ 𝑣𝑎̂́𝑛 𝑔𝑖𝑎̉𝑖 𝑝ℎ𝑎́𝑝 𝑡𝑜̂́𝑖 𝑢̛𝑢
𝐶𝑜́ 𝑠𝑎̆̃𝑛 𝑠𝑎̉𝑛 𝑝ℎ𝑎̂̉𝑚 𝑑𝑢̀𝑛𝑔 𝑡ℎ𝑢̛̉
𝐻𝑜̂̃ 𝑡𝑟𝑜̛̣ 𝑡𝑒𝑠𝑡 𝑡𝑎̣̂𝑛 𝑛𝑜̛𝑖
👉 Nếu bạn có bất kỳ yêu cầu nào, vui lòng liên hệ với chúng tôi.
☎️ Hotline: 0902782082
🌐 Website: https://www.medin.com.vn/
- 𝐕𝐏 𝐇𝐨 𝐂𝐡𝐢 𝐌𝐢𝐧𝐡: 01 Đường 410C, Phước Long A, Tp. Thủ Đức
- 𝐇𝐚 𝐍𝐨𝐢 𝐛𝐫𝐚𝐧𝐜𝐡: 562 Nguyễn Văn Cừ, Long Biên, Hà Nội
- 𝐃𝐚 𝐍𝐚𝐧𝐠 𝐛𝐫𝐚𝐧𝐜𝐡: 63 Phan Đăng Lưu, Hải Châu, Đà Nẵng
👉 Tham khảo thêm bài viết trên Fanpage
👉 Tham khảo thêm video tại kênh Youtube
