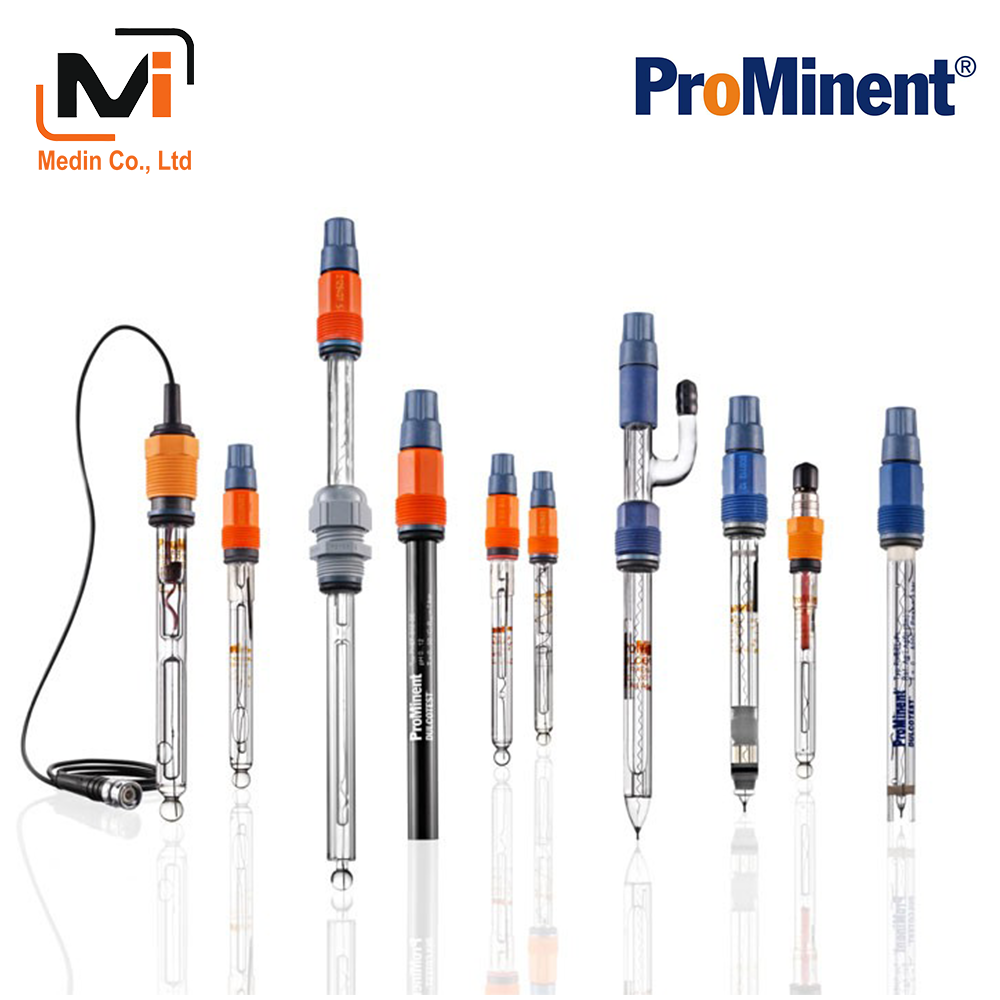

DULCOTEST pH sensors ProMinent
Thang đo pH có vạch chia từ 0 – 14
Đo pH bằng cảm biến DULCOTEST: Giá trị đo chính xác, đáng tin cậy và phù hợp với ứng dụng trong thời gian thực.
Kiểm soát, điều chỉnh và giám sát các quá trình hóa học với sự hỗ trợ của các giá trị đo chính xác.
| Catalog | Video |
 |
 |
DULCOTEST pH sensors ProMinent
Thang đo pH có vạch chia từ 0 – 14
Đo pH bằng cảm biến DULCOTEST: Giá trị đo chính xác, đáng tin cậy và phù hợp với ứng dụng trong thời gian thực.
Kiểm soát, điều chỉnh và giám sát các quá trình hóa học với sự hỗ trợ của các giá trị đo chính xác.
Đo pH trực tuyến đáng tin cậy – với cảm biến DULCOTEST
Việc đo và điều chỉnh giá trị pH trực tuyến cần phải chính xác, nhanh chóng và đáng tin cậy nhất có thể, đồng thời cung cấp khả năng truy cập tốt các giá trị đo được, cho dù là để giám sát, kiểm soát hay điều chỉnh các quá trình hóa học.
Dòng sản phẩm cảm biến pH DULCOTEST của chúng tôi cung cấp một loạt các cảm biến pH cho các nhiệm vụ đo lường khác nhau.
Các cảm biến pH của chúng tôi được sản xuất theo các tiêu chuẩn kiểm soát chất lượng rất nghiêm ngặt (ví dụ: tuân thủ hướng dẫn RoHS).
Các bước thông thường được tự động hóa, nhưng các bước quan trọng được thực hiện thủ công dưới sự giám sát của chuyên gia.
Bằng cách này, chúng tôi đạt được chất lượng có thể tái tạo tốt nhất và giảm chi phí.
Lợi ích của bạn
- Đo pH chính xác và đáng tin cậy cho phép các quy trình hiệu quả và độ tin cậy quy trình tuyệt vời
- Sự lựa chọn đa dạng các loại cảm biến với cấu tạo khác nhau làm cho chúng trở thành các thành phần đáng tin cậy trong nhiều ứng dụng
- Tuổi thọ cao đạt được nhờ sử dụng các vật liệu chất lượng tốt nhất cho thủy tinh và màng ngăn, hệ thống tham chiếu ổn định và sản xuất được tối ưu hóa.
- Điều này giúp giảm thiểu cả thời gian ngừng hoạt động và bảo trì
- Với thời gian lưu trữ ngắn và giao hàng nhanh chóng, cảm biến pH của bạn có thể được đưa vào hoạt động rất nhanh và bạn có thể tận dụng tối đa tuổi thọ của chúng (tất cả các cảm biến thủy tinh đều bắt đầu lão hóa ngay khi chúng rời khỏi dây chuyền sản xuất)
- Nhiều phiên bản đặc biệt về chiều dài lắp đặt, chiều dài cáp và phích cắm để kết nối tùy chỉnh với quy trình của bạn
- Nhãn độc quyền dành cho các đối tác OEM
Technical Details
- Selection of sensor type according to the application
- The insertion angle must be > 15° from the horizontal (except with PHEK-L: horizontal to vertical)
- Maximum flow < 0.8 m/s
- With cable lengths > 10 m, use the 4-20 mA transducer type PHV1
- Calibration using quality buffer solutions
pH Sensor PHES 112 SE
pH sensor optimised for use in potable water treatment, swimming pools/hot tubs at up to 60 °C/3 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for use in swimming pools and for potable water
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 3.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 100 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Swimming pools, whirlpools, potable water |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Installation length | Order no. | |
|---|---|---|
| PHES-112-SE SLg100 | 100 ±3 mm | 1051745 |
| PHES 112 SE | 120 ±3 mm | 150702 |
| PHES-112-SE SLg225 | 225 ±3 mm | 150092 |
pH Sensor PHES 112 SE 3D
pH sensor optimised for use in potable water treatment, swimming pools/hot tubs and at low electrolytic conductivities of up to 60 °C/3 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for use in swimming pools
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- Three ceramic diaphragms optimised for low electrolytic conductivities
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 3.0 bar |
| Min. conductivity | 50 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | 3 ceramic diaphragms |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Low conductivity water. |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Installation length | Order no. | |
|---|---|---|
| PHES 112 SE 3D | 120 ±3 mm | 1045759 |
pH Sensor PHEP 112 SE
pH sensor optimised for use with clear process water and conditions of up to 80 °C/6 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for exacting process requirements
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system for high pressure/temperature requirements
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Glass |
| Shaft diameter | 15 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Drinking water, clear process water |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Installation length | Order no. | |
|---|---|---|
| PHEP 112 SE | 120 ±3 mm | 150041 |
| PHEP 112 SE SLg100 | 100 ±3 mm | 150951 |
pH Sensor PHEP-H 314 SE
pH sensor optimised for use with clear process water, specifically for alkaline process solutions at high temperatures of up to 100 °C
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for exacting process requirements
- Optimised pH-sensitive glass for high alkali content and high temperatures
- Long service life / excellent precision: Measurement at a high pH value of up to 14
- Long service life: at high temperatures of up to 100 °C
- Stable reference system for high pressure/temperature requirements
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 3…14 |
| Temperature | 0…100 °C |
| Max. pressure | 6.0 bar (25 °C), 3.0 bar (100 °C) |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride with KCI reservoir |
| Diaphragm | Ceramic |
| Sensor shaft | Glass |
| Shaft diameter | 15 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Monitoring or control of chemical processes with neutral to highly-alkaline media and temperatures up to 100 °C. |
| Resistance to | Disinfectant, high alkalinity |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, highly alkaline tempered glass, ceramic diaphragm, gel electrolyte, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEP-H 314 SE | 1024882 |
pH Sensor PHEI 112 SE
Reliable online measurement of pH values in industrial wastewater/water – with DULCOTEST sensors
Your Benefits
- Solid high-grade plastic housing with integrated process connection for direct installation in the process with ½” and ¾” NPT thread
- Large dirt-repellent Teflon diaphragm protects against unwanted blocking of the reference
- Double junction reference system for stability with chemically polluted water
- Large electrolyte reservoir for long service lives
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 50 µS/cm |
| Electrolyte | Gel containing potassium chloride with a large KCI reservoir of gel |
| Diaphragm | 1 x PTFE ring diaphragm and 1x ceramic diaphragm |
| Sensor shaft | Plastic |
| Shaft diameter | 17 ±0.2 mm (below the ½” NPT thread), 22 ±0.2 mm (below the ¾” thread) |
| Installation length | 20 ±0.2 mm (from the lower end of the ½” thread), 60 ±0.2 mm (from the lower end of the ¾” thread) |
| Fitting position | Vertical up to +25° |
| Thread | ½” and ¾” NPT thread |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Municipal and industrial waste water, cooling water, process water: contaminated with solids and chemicals. |
| Resistance to | Disinfectant, solids content (turbid water), water-soluble chemicals |
| Measuring principle, technology | direct potentiometric measurement, 2 probes, double junction, gel electrolyte, large Teflon diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEI 112 SE | 1076610 |
pH Sensor PHER 112 SE
pH sensor optimised for use in contaminated water containing solids and for low conductivity of > 50 μS/cm at up to 80 °C/6 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- The large dirt-repellent Teflon® diaphragm prevents the reference system from becoming blocked up
- Long service life when solids are present
- High-viscosity electrolyte combined with a salt reservoir prevents the electrolyte from ‘bleeding’
- Long service life without drifts when there is clear water with low conductivity
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 50 µS/cm |
| Electrolyte | Gel containing potassium chloride with KCI reservoir |
| Diaphragm | PTFE ring diaphragm |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Municipal and industrial waste water, cooling water, process water: containing moderate amounts of solids without high levels of chemical contamination. |
| Resistance to | Disinfectant, solids content (turbid types of water) |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, Teflon ring diaphragm, polymer electrolyte, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHER 112 SE | 1001586 |
PH sensor PHER-DJ 112 SE
pH sensor with double diaphragm (double junction) optimised for use in contaminated water containing solids and for low conductivity of > 10 μS/cm at up to 80 °C/6 bar.
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- The large dirt-repellent Teflon® diaphragm prevents the reference system from becoming blocked up
- Long service life when solids are present
- High-viscosity electrolyte combined with a salt reservoir prevents the electrolyte from ‘bleeding’
- Long service life without drifts when there is clear water with low conductivity
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 10 µS/cm |
| Electrolyte | Gel containing potassium chloride with KCI reservoir |
| Diaphragm | 2x PTFE ring diaphragm |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Municipal and industrial waste water, cooling water, process water: contaminated with solids and chemicals, reverse osmosis, acid and alkaline gas scrubbers (without fluoride, HF), water with low conductivity |
| Resistance to | Disinfectant, solids content (turbid types of water) |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, Teflon ring diaphragm, polymer electrolyte, separate temperature measurement for temperature compensation needed |
| Installation length | Order no. | |
|---|---|---|
| PHER-DJ 112 SE | 120 ±3 mm | 1108991 |
pH Sensor PHEX 112 SE
pH sensor optimised for use with contaminated water with a high solids content at 6 bar/100 °C or 16 bar/25 °C
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for extremely high solids content
- The solid electrolyte makes the diaphragm redundant and prevents the reference system from becoming blocked up
- Long service life when sludge is present due to lack of a diaphragm
- Long service life as the solid electrolyte prevents the electrolyte from ‘bleeding’
- Stable reference system
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…100 °C |
| Max. pressure | 16.0 bar (25 °C), 6.0 bar (100 °C) |
| Min. conductivity | 500 µS/cm |
| Electrolyte | Polymer containing potassium chloride (solid) |
| Diaphragm | Circular gap diaphragm (solid electrolyte) |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Waste process water: high solids content, no chemical contamination. Suspensions, sludge, emulsions. Not suitable in clear waters, not suitable for media with oxidation agents. |
| Resistance to | Solids content (turbid types of water), sludge, emulsions |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, no diaphragm, polymer electrolyte, separate temperature measurement for temperature compensation needed |
| Installation length | Order no. | |
|---|---|---|
| PHEX 112 SE | 120 ±3 mm | 305096 |
| PHEX 112 SE SLg225 | 225 ±3 mm | 150061 |
pH Sensor PHED 112 SE
pH sensor optimised for use with chemically contaminated but clear water at up to 80 °C/8 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for use in chemically contaminated but clear water
- Double junction: two coupled ceramic diaphragms protect the reference system
- Long service life when chemical pollutants are present
- Special construction permits a maximum pressure of 8 bar
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 8.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Double junction |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Clear process, cooling and waste water polluted by chemicals |
| Resistance to | Disinfectants, water-soluble chemicals |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, double junction, gel electrolyte, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHED 112 SE | 741036 |
pH Sensor PHEF 012 SE
pH sensor optimised for use with acidic water containing fluoride and abrasive water containing solids at up to 50 °C/7 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Optimised pH glass for use in the presence of glass-corroding hydrofluoric acid (HF). HF is formed primarily in the presence of fluoride (F–) at a pH of < 4. Glass corrosion is promoted by a constant concentration of fluoride, a falling pH value and a rising temperature. The glass composition and structure of the PHEF type reduce the release of SiF4. Extended service life in the presence of fluoride (F–) at a pH of < 7
- The flat shape of the glass diaphragm and large ring diaphragm facilitate use in contaminated water, which also contains abrasive solids
| pH-range | 0…12 |
| Temperature | 0…50 °C |
| Max. pressure | 7.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | HDPE ring diaphragm, flat (Double Junction) |
| Sensor shaft | Epoxy |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | A significantly longer service life can be achieved compared with standard pH sensors in media containing hydrofluoric acid, e.g. wastewater from the semiconductor industry or electroplating applications and air scrubbers. |
| Resistance to | Disinfectant, solids content (turbid types of water), hydrofluoric acid (HF), abrasive particles |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, PE ring diaphragm, HF-compatible flat glass diaphragm, gel electrolyte, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEF 012 SE | 1010511 |
pH sensor PHEF-DJ 112 SE
pH sensor with double diaphragm (double junction) optimised for acid water containing fluoride at up to 60 °C/8 bar
Your Benefits
- Electrochemical combination probe: pH and reference electrode integrated
- Precise and reliable pH measurement in water containing fluoride with low pH enables efficient processes and excellent process reliability
- A special pH glass and dirt-repellent double junction can extend the service life of the sensor and thereby minimise downtimes as well as maintenance requirements
- The combination of hydrofluoric acid-resistant glass and PTFE double junction makes the sensor suited to gas scrubbing applications where fluoride and dirt may be encountered at the same time
- Twist protection for the sensor cable connection ensures that the cable can remain connected during installation and removal of the sensor, reducing moisture on the plug-in contacts
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 10 µS/cm |
| Electrolyte | Gel containing potassium chloride with KCI reservoir |
| Diaphragm | 2 x PTFE ring diaphragm, double junction |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process pipe, Inline: direct installation in the pipework|tubing; fixed or replaceable (retractable fitting), Tank, flume: immersion in the immersion pipe |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | A significantly longer service life can be achieved compared with standard pH sensors in media containing hydrofluoric acid, e.g. wastewater from the semiconductor industry or electroplating applications and air scrubbers. Low conductivity water. |
| Resistance to | Disinfectant, dirt |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, PTFE diaphragm, separate temperature measurement needed for temperature compensation |
| Order no. | |
|---|---|
| PHEF-DJ 112 SE | 1114185 |
pH Sensor PHEN 112 SE
Refillable pH sensor optimised for use with chemically contaminated water at up to 80 °C/without excess pressure
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Renewable liquid electrolyte by continuous replenishment from an electrolyte bottle installed above the electrode
- 1 ceramic diaphragm made of special material and with an optimised size / with optimised pore diameter
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Long service life in the presence of chemicals dissolved in the water, which could contaminate the reference system
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | Operation at atmospheric pressure |
| Min. conductivity | 150 µS/cm |
| Electrolyte | KCL electrolyte, refillable |
| Diaphragm | Ceramic |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Process water, cooling water, waste water: chemically contaminated, clear |
| Resistance to | Disinfectant, only for clear types of water |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, liquid electrolyte, 1 ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEN 112 SE | 305090 |
Delivered without PE storage tank and hose
| Order no. | |
|---|---|
| PE storage tank with connectors and tube | 305058 |
For the PE storage tank, we recommend fitting approx. 0.5 – 1 m above the level of the measurement medium.
| Capacity | Order no. | |
|---|---|---|
| KCl solution, 3 molar | 250 ml | 791440 |
| KCl solution, 3 molar | 1,000 ml | 791441 |
pH Sensor PHEN 112 SE 3D
Refillable pH sensor optimised for use in contaminated water containing solids and water with a low conductivity of > 50 μS/cm at up to 80 °C/without overpressure
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Renewable liquid electrolyte through continuous replenishment from an electrolyte bottle installed above the electrode
- 3 ceramic diaphragms made of special material, with optimised size and optimised pore diameter
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Long service life in water with low conductivity of > 50 µS/cm and where solids are present
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | Operation at atmospheric pressure |
| Min. conductivity | 50 µS/cm |
| Electrolyte | KCL electrolyte, refillable |
| Diaphragm | 3 ceramic diaphragms |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Wastewater, water with low conductivity, e.g. from reverse osmosis. |
| Resistance to | Disinfectant, solids content (turbid types of water) |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, liquid electrolyte, 1 ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEN 112 SE 3D | 150078 |
pH Sensor PHEK 112 S
pH sensor for use with manual measuring instruments, with plastic shaft, optimised for use in potable water treatment, swimming pools/hot tubs at up to 80 °C/3 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for use in swimming pools and for potable water
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- With plastic shaft to prevent glass breakage
- Mechanical protection of the glass diaphragm
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 3.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Polycarbonate |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | none |
| Electrical Connection | SN6 plug-in head |
| Enclosure rating | IP 65 |
| Process integration | Immersion by tripod or manually |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Hand-held measurement in swimming pools, potable water. |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEK 112 S | 305051 |
pH Sensor PHEK 112 SE
pH sensor with plastic shaft, optimised for use in potable water treatment, swimming pools/hot tubs at up to 60 °C/3 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for use in swimming pools and for potable water
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- With plastic shaft to prevent glass breakage
- Mechanical protection of the glass diaphragm
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 3.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Polycarbonate |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Swimming pool, potable water, aquariums |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEK 112 SE | 1028457 |
pH Sensor PHEK-L 112 SE
pH sensor with plastic shaft, optimised for use in potable water treatment, swimming pools/hot tubs, horizontal installation possible, at up to 60 °C/3 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- With plastic shaft to prevent glass breakage
- Horizontal (level) installation possible (90° angle) (usually limited to 0 – 75° angle)
- Diaphragm and reference system optimised for use in swimming pools and for potable water
- Ceramic diaphragm with special material and optimised size / optimised pore diameter
- Long service life due to reduced diffusion (‘bleeding’) of the electrolyte
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Long service life due to the material, which is inert to aggressive disinfectants
- Stable reference system
| pH-range | 1…12 |
| Temperature | 0…60 °C |
| Max. pressure | 3.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Polycarbonate |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical to horizontal |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Swimming pools, potable water, aquaria. Horizontal installation possible. |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHEK-L 112 SE | 1034918 |
pH Sensor PHEPT 112 VE
pH sensor with integral temperature measurement, optimised for use with clear process water and changing process temperature of up to 80 °C/6 bar
Your Benefits
- Electrochemical combination electrode: pH and reference electrode integrated
- Diaphragm and reference system optimised for exacting process requirements
- Ceramic diaphragm with special material, optimised size and optimised pore diameter
- Long service life due to reduced diffusion (“bleeding”) of the electrolyte
- Long service life due to the material, which is inert to aggressive chemicals
- Stable reference system for high pressure/temperature requirements
- Integrated Pt 100 temperature sensor for temperature compensation of the pH measurement in higher-order measuring instruments eliminates the need for an additional sensor housing and external temperature sensor
- VARIO Pin plug-in head with IP 67 specification
- Twist protection for the sensor cable connected. This means that the cable can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 150 µS/cm |
| Electrolyte | Gel containing potassium chloride |
| Diaphragm | Ceramic |
| Sensor shaft | Glass |
| Shaft diameter | 15 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | VARIO Pin plug-in head |
| Enclosure rating | IP 67 |
| Process integration | Bypass: open outlet or return of the sample water into the process line, inline: direct installation into the pipework; fixed or replaceable (replaceable fitting), tank, channel: Immersion in the immersion tube |
| Controllers | diaLog C, diaLog X, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOMARIN 3, DULCOPOOL Pro, DULCOPOOL, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical applications | Drinking water, clear process water, process water with temperature change |
| Resistance to | Disinfectant |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, gel electrolyte, ceramic diaphragm, integrated temperature measurement for temperature compensation |
| Order no. | |
|---|---|
| PHEPT 112 VE | 1004571 |
Field of application
The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.
- Chemical processes
- Chemically contaminated water
- Swimming pool water, potable water
- Process water
- Cooling water, wastewater
- Seawater
- Suspensions, sludge, emulsions
- Exhaust air scrubber, semiconductor industry, electroplating
Monitoring and Replenishing of Electroplating Baths
Demanding baths require concentration
Baths have to be monitored and replenished continually. This requires high concentration – from the sensors, controllers and pumps. Yet only small amounts of precisely fed chemicals are needed.
Flotation in Mining
Frothers and collecting agents
To remove ore from the flotation liquid faster, activating chemicals (frothers and collecting agents) have to be accurately added by metering. Getting the right amounts is crucial.
Metering of Fluids
Incredibly simple and efficient metering of chemicals
We transport chemicals with ease in any industrial environment: ProMinent solutions store, transfer and meter substances at rates of 0.1 l/h to 100,000 l/h at a pressure of 2 to 3,000 bar.
Cooling Water Treatment
Efficiency is everything in the cooling water circuit
Everything at ProMinent revolves around the perfect cooling water circuit, which needs to experience few losses over its long life. The precise metering of inhibitors and biocides and suitable filters make this possible.
Waste Water Treatment
Very low-impact treatment for waste water
Our water treatment technology delivers thorough yet environmentally friendly waste water treatment. What’s more, with precisely metered additives and optimised processes, you also save money.
Cleaning fruit and vegetables
Simple and reliable cleaning process for agricultural products
Fresh fruit and veg are an essential part of our diet. So it’s very important for them to reach the consumer in a safe condition. Precise metering of chlorine dioxide ensures that this is the case.
Fish processing, fish and shrimp farming
Successful farming and hygienic processing
More and more people are enjoying delicacies from our seas. Fish farms and also the fish processing industry therefore face the huge challenge of producing goods quickly and hygienically. Disinfected water is essential to both industries.
Flue Gas Cleaning in Energy Generation
Flue gas cleaning for fresh air and a clean environment
ProMinent understands how to incorporate the complex flue gas cleaning process in power plants. Harmful substances are reliably removed from the air before they enter the atmosphere.
Monitoring and optimising surface treatment in electroplating
The right way to immerse items!
In order to attain a desired surface quality before taking further steps, such as painting, raw products are treated with various chemicals.
Sustainable use of water in industrial processes
Sustainable cycles
There are certainly chemicals that are more popular than hydrogen peroxide. But despite this, it has to be used in certain industrial processes, such as the disinfection of water.
—-
>>> Xem thêm sản phẩm ProMinent
Tại Sao Chọn Medin Company?
Nhà Phân Phối Chính Hãng Uy Tín
Medin Company tự hào là nhà phân phối chính hãng bơm định lượng của Prominent Việt Nam, cam kết cung cấp 100% sản phẩm chính hãng với đầy đủ chứng nhận và tem bảo hành quốc tế.
Mỗi sản phẩm đều được nhập khẩu trực tiếp từ nhà sản xuất, đảm bảo chất lượng tốt nhất và giá thành cạnh tranh nhất trên thị trường.
Giải Pháp Tối Ưu, Tiết Kiệm Chi Phí
Với nhiều năm kinh nghiệm trong lĩnh vực tự động hóa, đội ngũ kỹ sư của Medin luôn sẵn sàng phân tích nhu cầu thực tế và đưa ra giải pháp metering pump phù hợp nhất cho từng quy trình sản xuất.
Chúng tôi không chỉ bán sản phẩm mà còn tư vấn tối ưu hóa hệ thống, giúp khách hàng giảm thiểu chi phí đầu tư ban đầu và chi phí vận hành lâu dài.
Lợi ích cụ thể:
- Tư vấn lựa chọn dòng bơm phù hợp với tính chất hóa chất
- Tính toán lưu lượng và áp suất chính xác
- Thiết kế hệ thống định lượng hoàn chỉnh
- Đào tạo vận hành và bảo trì cho nhân viên
Hỗ Trợ Kỹ Thuật 24/7 và Bảo Hành Chính Hãng
Hiểu rõ tầm quan trọng của sự liên tục trong sản xuất, Medin cung cấp dịch vụ hỗ trợ kỹ thuật 24/7 qua hotline, email và zalo.
Đội ngũ kỹ sư giàu kinh nghiệm sẵn sàng giải đáp mọi thắc mắc, xử lý sự cố nhanh chóng và cung cấp phụ tùng thay thế chính hãng với thời gian ngắn nhất.
Cam kết bảo hành:
- Bảo hành chính hãng từ Prominent Việt Nam
- Phụ tùng thay thế chính hãng 100%
- Bảo trì định kỳ theo lịch trình
- Hỗ trợ nâng cấp và mở rộng hệ thống
Khảo Sát Thực Tế và Sản Phẩm Dùng Thử Miễn Phí
Để khách hàng có thể đánh giá chính xác hiệu quả của giải pháp bơm định lượng, Medin cung cấp dịch vụ khảo sát thực tế tại hiện trường hoàn toàn miễn phí.
Đội ngũ kỹ sư sẽ đến tận nơi để đo đạc, phân tích quy trình và đề xuất giải pháp cụ thể.
Đặc biệt, với các dự án lớn, chúng tôi hỗ trợ sản phẩm dùng thử miễn phí để khách hàng có thể kiểm chứng hiệu quả trước khi quyết định đầu tư.
Điều này thể hiện sự tự tin tuyệt đối của chúng tôi vào chất lượng sản phẩm và giải pháp mà mình cung cấp.
Đội Ngũ Kỹ Sư Chuyên Nghiệp
Với đội ngũ kỹ sư được đào tạo bài bản, có chứng chỉ chuyên môn và nhiều năm kinh nghiệm thực tế trong lĩnh vực tự động hóa, Medin tự tin mang đến cho khách hàng không chỉ là sản phẩm mà còn là tri thức và giải pháp toàn diện.
Chúng tôi thường xuyên tham gia các khóa đào tạo của Prominent để cập nhật công nghệ mới nhất và áp dụng vào thực tế tại Việt Nam.
Liên Hệ Medin Co., Ltd
- Công ty TNHH Mễ Đình được thành lập từ năm 2006.
- Từ đó đến nay Medin luôn là Công ty dẫn đầu về lĩnh vực Tự Động Hoá ở thị trường trong và ngoài nước với hơn 1,000 khách hàng, cùng với rất nhiều dự án lớn nhỏ cho các nhà máy sản xuất.
- Chúng tôi cung cấp cho khách hàng những giải phát tuyệt vời nhất trong việc ứng dụng Tự Động Hoá vào sản xuất
- Phương châm: “Giải pháp của chúng tôi, lợi ích của khách hàng”
- Giá trị cốt lõi: “Uy tín là sự tồn tại của chúng tôi”
- Hơn 20 năm kinh nghiệm, chúng tôi có đội ngũ kỹ sư nhiều kinh nghiệm, có khả năng tư vấn, đưa ra giải pháp có lợi nhất cho khách hàng.
- Sự tin tưởng và đồng hành của khách hàng là động lực để Medin phát triển cao hơn và xa hơn.
