Diaphragm Metering Pumps beta/ X – Bơm Định Lượng ProMinent

Metering Pumps – Precise and Safe Metering for Every Application

Metering pumps are essential for precise, safe, and reliable liquid metering in numerous industries. Whether in water treatment, chemical metering, or process technology – they ensure the highest metering accuracy, prevent unwanted liquid leakage, and are particularly low-maintenance.

The membrane technology ensures uniform delivery of various media – from aggressive chemicals to sensitive liquids. ProMinent offers a wide portfolio of powerful metering pumps, individually tailored to your requirements.

Your Benefits at a Glance:

• Precise metering for maximum process safety
• Durable and low-maintenance design for low operating costs
• High chemical resistance for versatile applications
• Flexible use in water treatment, chemicals, industry, and more

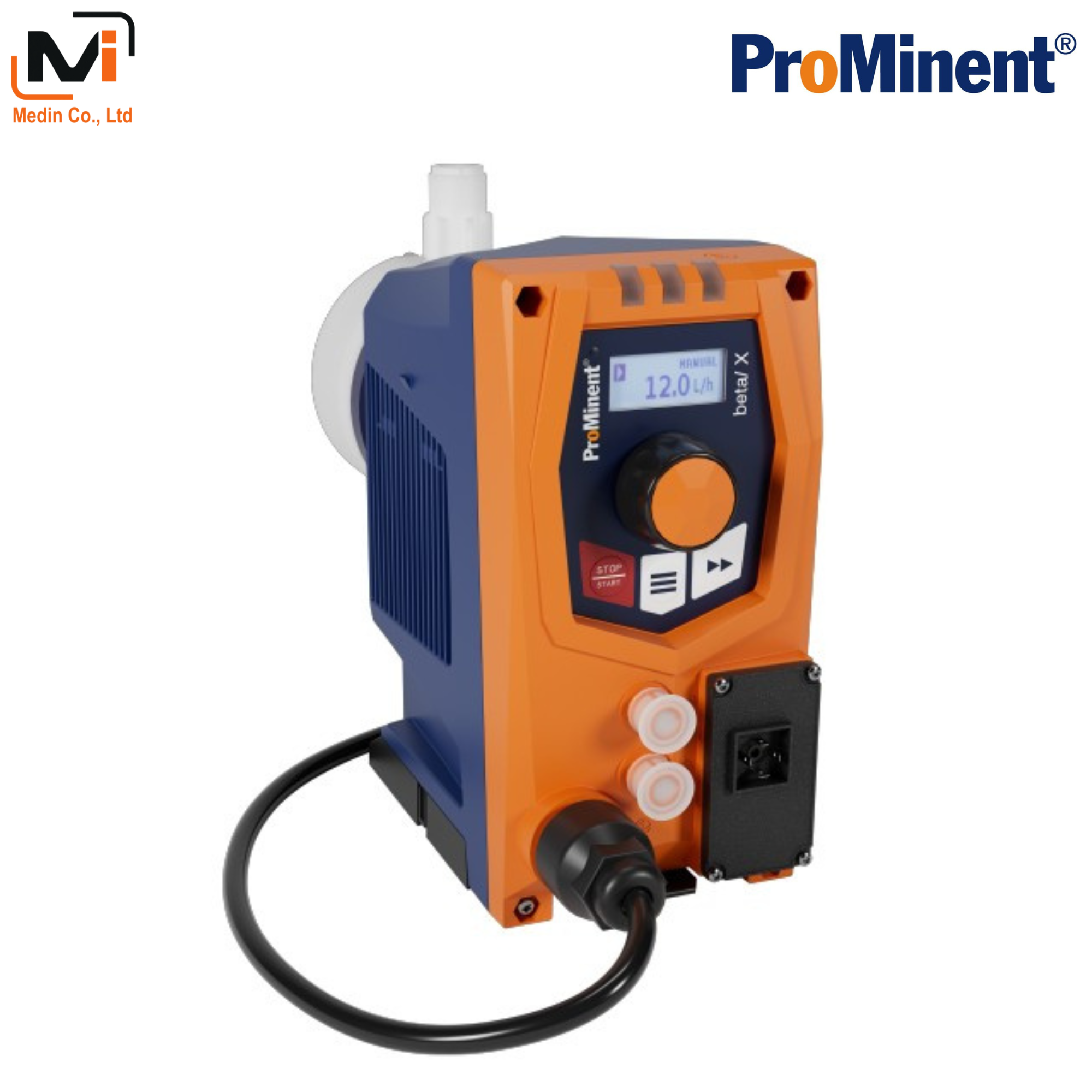

The new generation – simply beta/ X

The diaphragm metering pump beta/ X is easy to use, meters with precision and is digital.

All aspects of the beta/ X are focused on simple handling. The volume is set directly using an intuitive click wheel. The volume to be pumped is adjusted directly on a display. Thanks to a click-in foot, it can also be quickly and easily mounted on the floor or wall.

The reliable metering pump is versatile and robust. What makes the beta/ X so special is its regulated drive. This enables continuous metering and a wide adjustment range. Thanks to the wide adjustment range, the pump can be used universally, which greatly simplifies selection and reduces the number of variants.

The dosing heads on the beta/ X are characterised by their good priming properties. The specially shaped head minimises faults caused by air locks. This in turn improves process reliability.

The beta/ X is available in a variant free of PFAS, making it even more environmentally-friendly.

The beta/ X can be digitally networked, programmed and read off a smartphone. It has a Bluetooth and NFC interface.

Your benefits

• Simple operation and mounting save time and effort.
• Precise metering and good priming properties improve process reliability.
• Wide adjustment range and robust design for flexible applications.
• Control via a smartphone using Bluetooth and NFC.
• PFAS-free variant available.

Field of application

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

• Disinfection
  • Chlorine dosing
  • H2O2 dosing
  • CLO2
• Biocide
• Antiscalant
• Disinfection of cooling towers
• Metering all kinds of liquids in industrial/chemical applications
• Collection pan with leak sensor
• Fresh water treatment
• Waste water treatment
• Commercial pool & wellness sector – disinfection

Technical Details

Technical Data

The vPTFE diaphragm and vPE diaphragm are limited to a maximum operating pressure of 10 bar. The delivery rates of the dosing pumps with vPTFE diaphragm and vPE diaphragm can deviate by 10-20 % compared to the standard diaphragm.

Materials in Contact with the Medium

Repeatability of dosing: ±1 % when used in accordance with the instructions in the operating manual

Permissible ambient temperature: -10 °C to +45 °C

Average power consumption: 3.4 … 16.5 W

Protection class: IP 66, NEMA 4X, insulation class F
