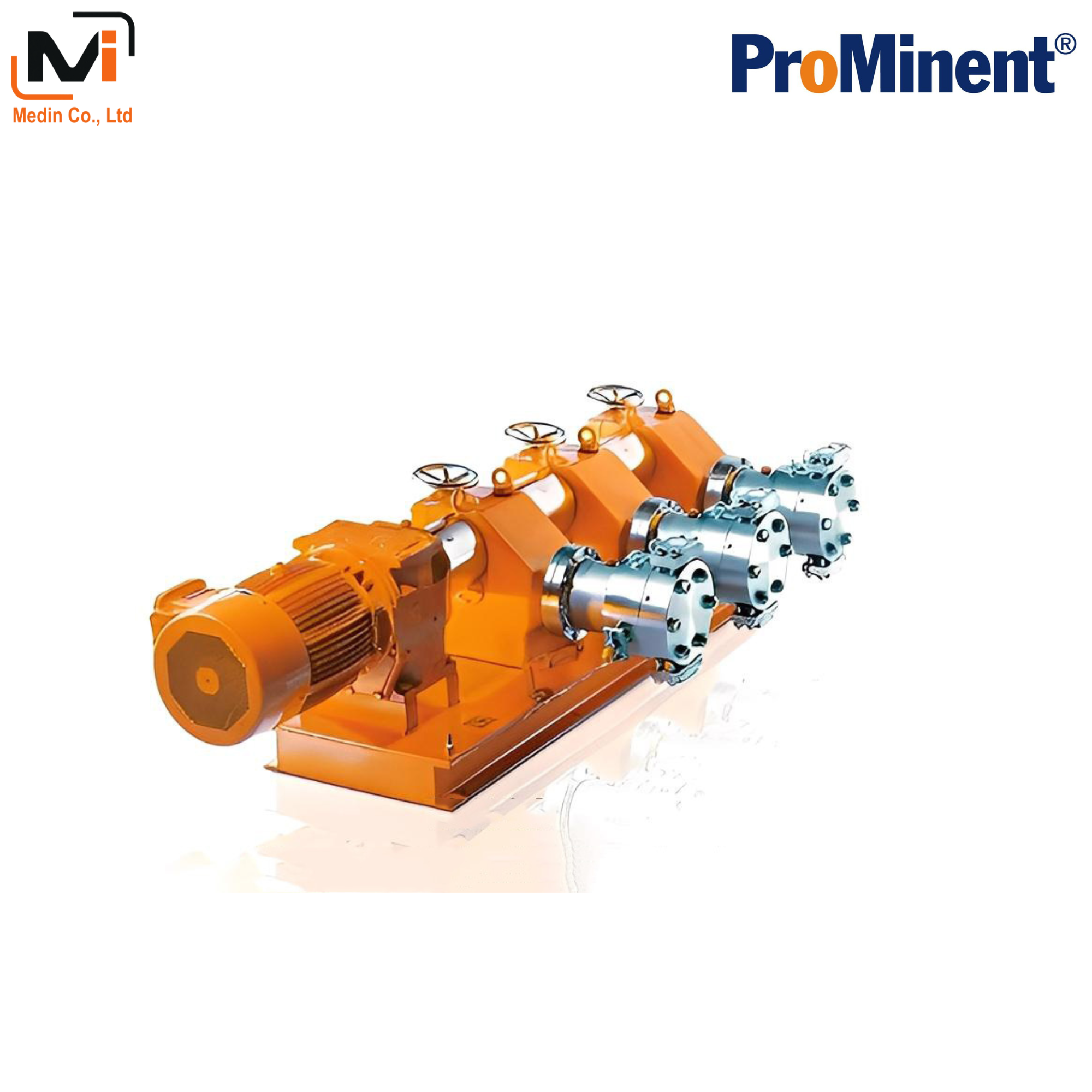

Hydraulic Diaphragm Metering Pump ORLITA MF ProMinent

Capacity range of single-head pump: 0 – 9200 l/h, 400 – 30 bar

The hydraulic diaphragm metering pump ORLITA MF offers reliable dosing rates even under high pressure and has a modular construction, making it highly versatile.

Thanks to its modular design, this pump is tailored to meet your requirements even at very high pump capacities.

Danh mục: AUTOMATION, Hydraulic Diaphragm Metering Pumps, Process Metering Pumps, ProMinent

Mô tả

Downloads

Hydraulic Diaphragm Metering Pump ORLITA MF ProMinent

Capacity range of single-head pump: 0 – 9200 l/h, 400 – 30 bar

The hydraulic diaphragm metering pump ORLITA MF offers reliable dosing rates even under high pressure and has a modular construction, making it highly versatile.

Thanks to its modular design, this pump is tailored to meet your requirements even at very high pump capacities.

Reliable capacity even at high-pressure

ORLITA MF hydraulic diaphragm metering pumps (MFS 35 to MFS 1400) with a stroke length of 20 to 60 mm provide a capacity ranging from 0 to 9200 l/h at 400 – 30 bar.

A wide range of power end versions is available, including some for use in Zone 1 or Zone 2 areas at risk from explosion with ATEX certification.

The ORLITA MF product range is designed to comply with API 675.

Its modular construction permits the free combination of drives, power ends and dosing heads, producing a pump for a range of different feed rates and media operating at different working pressures.

Your benefits

Excellent process safety and reliability:

PTFE double diaphragm with integrated diaphragm rupture warning system ensures precise and low-wear operation despite high pressures
The product chamber is hermetically separated from the hydraulic part
Integrated hydraulic relief valve and automatic bleed valve for the hydraulic chamber
Wear-free, valveless enforced anti-cavitation of the hydraulic leakage guarantees optimum dosing precision
Cone valves for use as suction and/or discharge valves with minimal wear, good self-cleaning and low pressure loss (NPSHR)

Excellent flexibility:

The modular construction allows a wide range of uses. In multiple pump systems it is possible to combine up to 6 metering units, even with different pump capacities. In single pumps the drive arrangement may be either vertical or horizontal.

Field of application

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

Oil/ gas production (onshore/offshore)
Refineries
Chemical/Petrochemical industry
Pharmaceuticals & cosmetics
Food production

Inhibitor Metering Offshore

For smooth oil production

Our ProMinent metering pumps keep the pipework clear 24 hours a day and protect against corrosion and defects. So the oil can keep flowing.

Reliable technology is essential on a drilling platform.

ProMinent Orlita metering pumps are perfectly suited to the tough environment.

Special materials and paintwork designed for offshore applications make them incredibly robust.

And they work intelligently: the inhibitor is fed via several metering heads and can be individually adapted to every single metering volume and pump pressure.

Corrosion in the pipework and feed units is prevented.

Onshore Metering in Gas Pump Stations

Safety at the borehole

Flammable methane hydrate at the borehole can be very dangerous.

But not with ProMinent metering pumps.

By metering fluid into the drilling head, they don’t even allow methane hydrate to be produced in the first place.

ProMinent’s Orlita diaphragm metering pumps prevent methane hydrate from forming at the borehole.

Their metering heads are interconnected for even pumping pressures and volumes.

The recipe for reliable metering even under extreme conditions?

Relief valves protect against overload, bleed valves and rupture indicators automatically detect critical situations and remedy them.

Technical Details

MfS 35 (MF2a) – stroke length: 0-20 mm, rod force: 3500 N
MfS 600 (MF5b) – stroke length: 0-40 mm, rod force: 40000 N
MfS 1400 (MF6a) – stroke length: 0-60 mm, rod force: 60000 N
Stroke length adjustment range: 0 – 100% in operation and idle
Stroke length adjustment: manually using manual adjustment wheel and scaled display (optionally with electric actuator or control drive)
The dosing precision is better than ± 1 % within the 10 – 100 % stroke length range under defined conditions and with correct installation (API 675).
PTFE multi-layer diaphragm with electrical diaphragm rupture warning / signalling system via a contact
Integrated hydraulic relief and vent valve
Wetted materials: Stainless steel, special designs are available on request
A wide range of power end/drive versions is available: Three-phase standard AC motors, motors for use in areas at risk from explosion and different flange designs for use in customer-specific motors
Degree of protection: IP 55
Temperature range – 40 °C to + 150 °C
Suction lift up to 8 m
Design in compliance with API 675 among others

Actuation of ORLITA MF, MH, PS, DR

Control drive consisting of an actuator with servo motor and integral servo controller for stroke length adjustment via a standard signal. Standard current input 0/4 – 20 mA, corresponds to stroke length 0 – 100 %, mechanical position display of actual stroke length value output 0/4 – 20 mA for remote display. Control drives can also sometimes be designed with bus systems, like HART, PROFIBUS^®, Fieldbus Foundation …

Variable speed motors with integrated frequency converter

Power supply 1-phase 230 V, 50/60 Hz (up to 3 kW). Externally controllable with 0/4 – 20 mA.

The following functions are integrated in the terminal box cover:

Start/stop switch
Switch-over for manual/external operation
Potentiometer for speed control in manual mode

Technical data for ORLITA MFS 35 single head pump 50 Hz

Plunger Ø	Theor. stroke volume	Theoretical pump capacity in l/h at strokes/min							Max. pressure	Efficiency		Nominal diameter
		36	58	73	91	112	145	207
mm	ml/stroke	l/h	l/h	l/h	l/h	l/h	l/h	l/h	bar	At 100 % pressure	At 50 % pressure
7	0.77	1.7	2.7	3.3	4.2	5.2	6.7	9.6	400	0.50	0.70	DN 3
8	1.01	2.2	3.5	4.4	5.5	6.7	8.7	12.5	400	0.50	0.70	DN 3
10	1.57	3.4	5.5	6.8	8.5	10.5	13.7	19.5	400	0.50	0.70	DN 6
12	2.26	4.9	7.9	9.8	12.3	15.1	19.7	28.1	309	0.79	0.85	DN 6
14	3.08	6.7	10.7	13.4	16.7	20.6	26.8	38.3	227	0.81	0.85	DN 6
16	4.02	8.7	14.0	17.5	21.9	26.9	35.0	50.0	174	0.83	0.86	DN 6
20	6.28	13.7	21.9	27.3	34.2	42.0	54.7	78.1	111	0.86	0.88	DN 6
22	7.60	16.5	26.5	33.1	41.3	50.9	66.1	94.5	92	0.86	0.88	DN 10
25	9.82	21.4	34.2	42.7	53.4	65.7	85.4	122.0	71	0.87	0.88	DN 10
27	11.45	24.9	39.8	49.8	62.3	76.6	99.6	142.3	61	0.87	0.88	DN 10
30	14.14	30.7	49.2	61.5	76.9	94.6	123.0	175.7	50	0.88	0.89	DN 10
36	20.36	44.3	70.8	88.6	110.7	136.2	177.1	253.0	34	0.88	0.89	DN 16
40	25.13	54.7	87.5	109.3	136.7	168.2	218.7	312.4	28	0.89	0.89	DN 16
44	30.41	66.1	105.8	132.3	165.4	203.5	264.6	378.0	23	0.89	0.89	DN 16
50	39.27	85.4	136.7	170.8	213.5	262.8	341.6	488.1	18	0.89	0.89	DN 16
60	56.55	123.0	196.8	246.0	307.5	378.4	492.0	702.8	12	0.89	0.90	DN 25
65	66.37	144.3	231.0	288.7	360.9	444.1	577.4	824.8	11	0.89	0.90	DN 25

Valve type: Ball or double ball valve up to DN 6, conical valve as of DN 10

Note

All performance data applies to 50 Hz. If a 60 Hz motor is used, the performance will be correspondingly higher.

Abridged presentation of our complete product range. Other types on request.

Technical data for ORLITA MFS 600 single head pump 50 Hz

Plunger Ø	Theor. stroke volume	Theoretical pump capacity in l/h at strokes/min							Max. pressure	Efficiency		Nominal diameter
		65	76	88	105	139	166	192
mm	ml/stroke	l/h	l/h	l/h	l/h	l/h	l/h	l/h	bar	At 100 % pressure	At 50 % pressure
33	34.21	133	157	180	215	286	342	395	400	0.76	0.83	DN 16
36	40.72	158	187	214	256	340	407	470	393	0.76	0.83	DN 16
37	43.01	167	197	226	270	359	430	496	372	0.77	0.83	DN 16
38	45.36	176	208	238	285	379	453	523	353	0.78	0.83	DN 16
40	50.27	195	231	264	316	420	502	580	318	0.78	0.84	DN 25
44	60.82	237	279	320	382	508	608	702	263	0.80	0.85	DN 25
46	66.48	259	305	349	418	556	664	767	241	0.81	0.85	DN 25
50	78.54	305	360	413	493	656	784	906	204	0.83	0.86	DN 25
55	95.03	370	436	499	597	794	949	1,097	168	0.84	0.87	DN 32
60	113.10	440	519	594	710	945	1,130	1,305	141	0.84	0.87	DN 32
65	132.73	516	609	697	834	1,109	1,326	1,532	121	0.85	0.87	DN 32
70	153.94	599	706	809	967	1,287	1,538	1,776	104	0.86	0.88	DN 40
75	176.71	687	811	928	1,110	1,477	1,765	2,039	91	0.86	0.88	DN 40
80	201.06	782	923	1,056	1,263	1,680	2,008	2,320	80	0.87	0.88	DN 40
90	254.47	990	1,168	1,337	1,598	2,127	2,542	2,936	63	0.87	0.88	DN 40
100	314.16	1,222	1,442	1,650	1,973	2,626	3,138		51	0.88	0.89	DN 50
115	415.48	1,616	1,906	2,183	2,610	3,472	4,150		39	0.88	0.89	DN 65
125	490.87	1,909	2,252	2,579	3,083	4,102	4,903		33	0.89	0.89	DN 65
130	530.93	2,065	2,436	2,789	3,335	4,437	5,303		30	0.89	0.89	DN 65
135	572.56	2,227	2,627	3,008	3,597	4,785	5,719		28	0.89	0.89	DN 65
142	633.47	2,464	2,907	3,328	3,979	5,294	6,327		25	0.89	0.89	DN 65

Valve type: Ball or plate valve available

Note

All performance data applies to 50 Hz. If a 60 Hz motor is used, the performance will be correspondingly higher.

Abridged presentation of our complete product range. Other types on request.

Technical data for ORLITA MFS 1400 single head pump 50 Hz

Plunger Ø	Theor. stroke volume	Theoretical pump capacity in l/h at strokes/min							Max. pressure	Efficiency		Nominal diameter
		66	76	86	100	134	166	191
mm	ml/stroke	l/h	l/h	l/h	l/h	l/h	l/h	l/h	bar	At 100 % pressure	At 50 % pressure
42	83.13	329	380	430	498	670	830	953	433	0.76	0.83	DN 25
44	91.23	361	417	472	547	736	911	1,046	395	0.76	0.83	DN 25
46	99.71	394	456	516	598	804	996	1,143	361	0.76	0.83	DN 25
48	108.57	429	496	562	651	875	1,084	1,245	332	0.78	0.83	DN 25
53	132.37	523	605	685	794	1,067	1,322	1,517	272	0.79	0.84	DN 32
57	153.11	605	700	793	918	1,234	1,529	1,755	235	0.81	0.84	DN 32
58	158.52	627	724	821	950	1,278	1,583	1,817	227	0.84	0.85	DN 32
60	169.65	671	775	879	1,017	1,368	1,695	1,945	212	0.82	0.86	DN 32
70	230.91	913	1,055	1,196	1,384	1,862	2,306	2,647	156	0.83	0.87	DN 40
75	265.07	1,048	1,211	1,373	1,589	2,137	2,648	3,038	136	0.84	0.87	DN 40
80	301.59	1,193	1,378	1,562	1,808	2,432	3,012	3,457	119	0.84	0.87	DN 40
85	340.47	1,346	1,556	1,763	2,041	2,745	3,401	3,903	106	0.85	0.87	DN 50
90	381.70	1,509	1,744	1,977	2,289	3,078	3,813	4,375	94	0.88	0.88	DN 50
100	471.24	1,863.5	2,153.2	2,440.3	2,825.5	3,799.6	4,707.0		76	0.86	0.87	DN 65
108	549.65	2,173.6	2,511.5	2,846.4	3,295.6	4,431.9	5,490.2		65	0.88	0.89	DN 65
115	623.21	2,464.5	2,847.7	3,227.4	3,736.7	5,025.0	6,225.0		58	0.88	0.89	DN 65
120	678.58	2,683	3,101	3,514	4,069	5,471	6,778		53	0.88	0.89	DN 80
125	736.31	2,912	3,364	3,813	4,415	5,937	7,355		49	0.88	0.89	DN 80
140	923.63	3,653	4,220	4,783	5,538	7,447	9,226		39	0.89	0.89	DN 80

Valve type: Conical valve

Note

All performance data applies to 50 Hz. If a 60 Hz motor is used, the performance will be correspondingly higher.

Abridged presentation of our complete product range. Other types on request.

—-
